3-8 ENGINE
ENGINE INSTALLATION

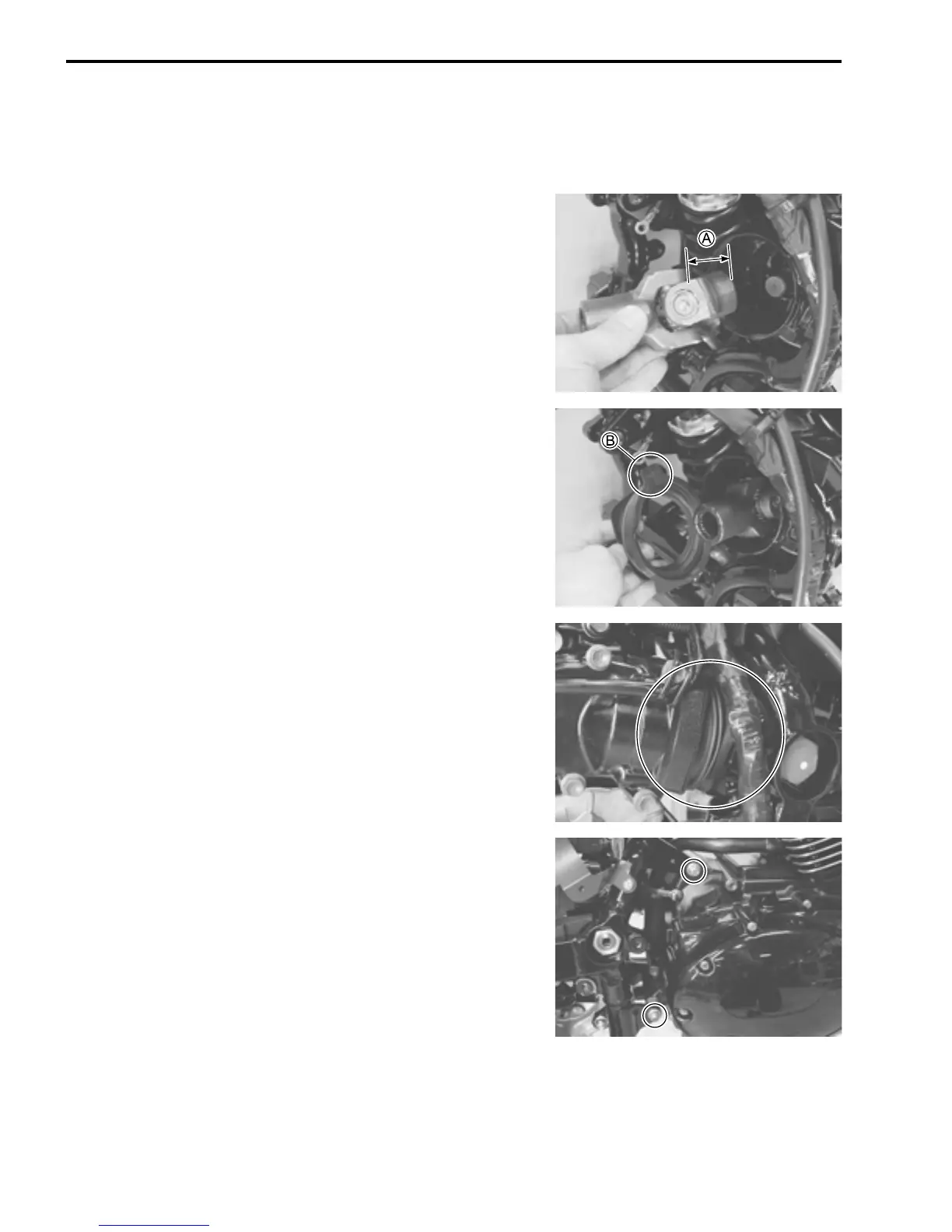

Install the engine in the reverse order of engine removal.
Pay attention to the following points:
• Install the universal joint.
NOTE:
Be sure to face the short portion A backward when installing it.
• Install the boot.
NOTE:
Make sure that the “UP” mark B faces up.
• Gradually raise the engine, and then engage the secondary
driven gear shaft to the universal joint.
• Properly fit the boot onto the engine and the swingarm.
• Install the engine mounting bolts and nuts and tighten them.
SAMPLE

Suzuki Boulevard M50 Specifications

General

Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Front Tire	130/90-16M/C 67H, tubeless
Rear Tire	170/80-15M/C 77H, tubeless
Ground Clearance	140 mm (5.5 in)
Seat Height	700 mm (27.6 in)
Engine Type	4-stroke, liquid-cooled, V-twin
Bore x Stroke	83.0 mm x 74.4 mm
Rear Suspension	coil spring, oil damped
Front Brakes	Single hydraulic disc
Rear Brakes	Drum
Fuel Tank Capacity	15.5 L (4.1 US gal)
Wheelbase	1, 655 mm (65.2 in)
