10-32 SERVICING INFORMATION

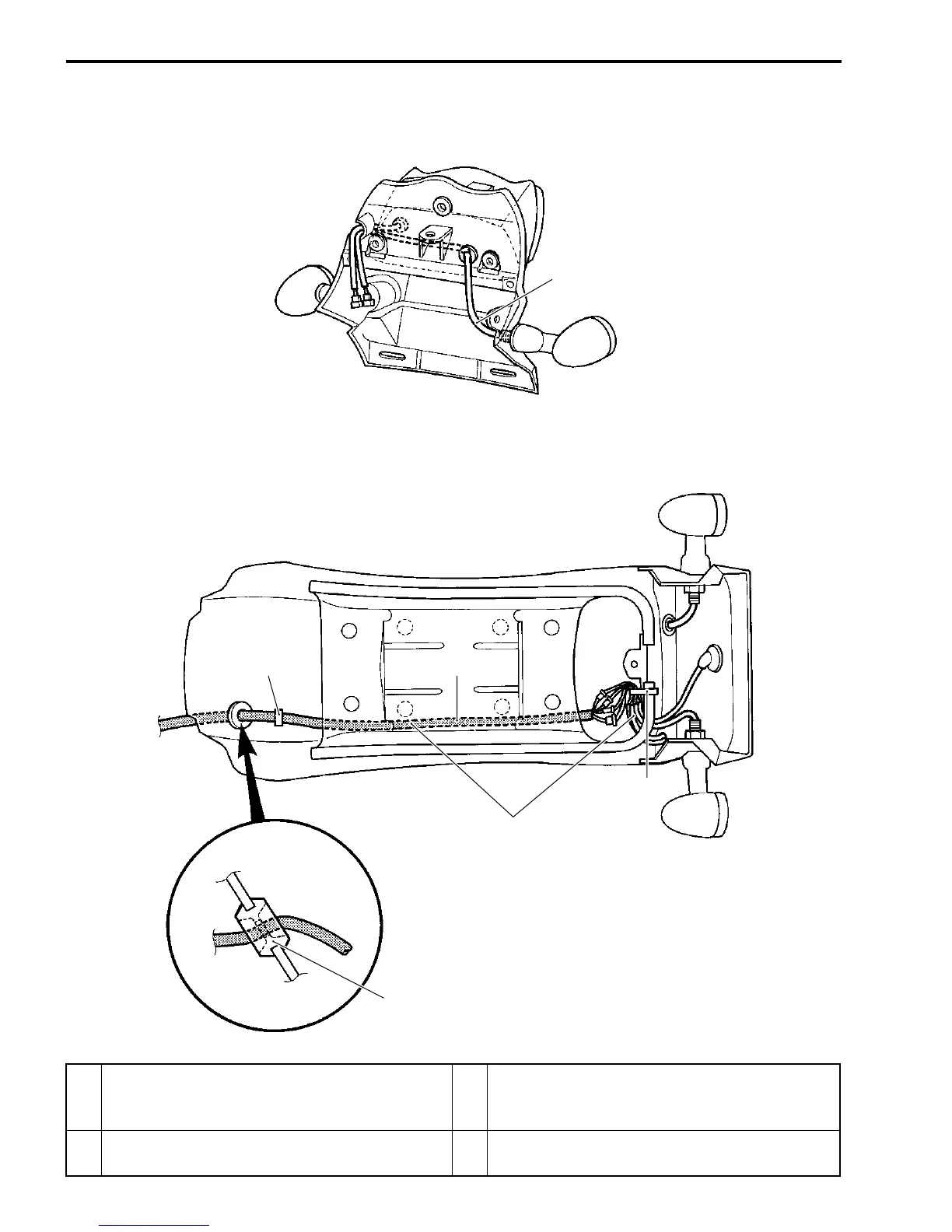

TAIL LAMP INSTALLATION
*1
*2
*3
*4
Grommet
Clamp
*1
Pass through the tail lamp harness and left turn
signal harness over the right side mounting
boss.
*3
Pass through the wiring harness outside of
cushions.
*2 Assemble to the rear fender. *4
Pass through the wiring harness between rear
fender and rear brace.
