Suzuki Boulevard M50 User Manual

9-6 ELECTRICAL SYSTEM

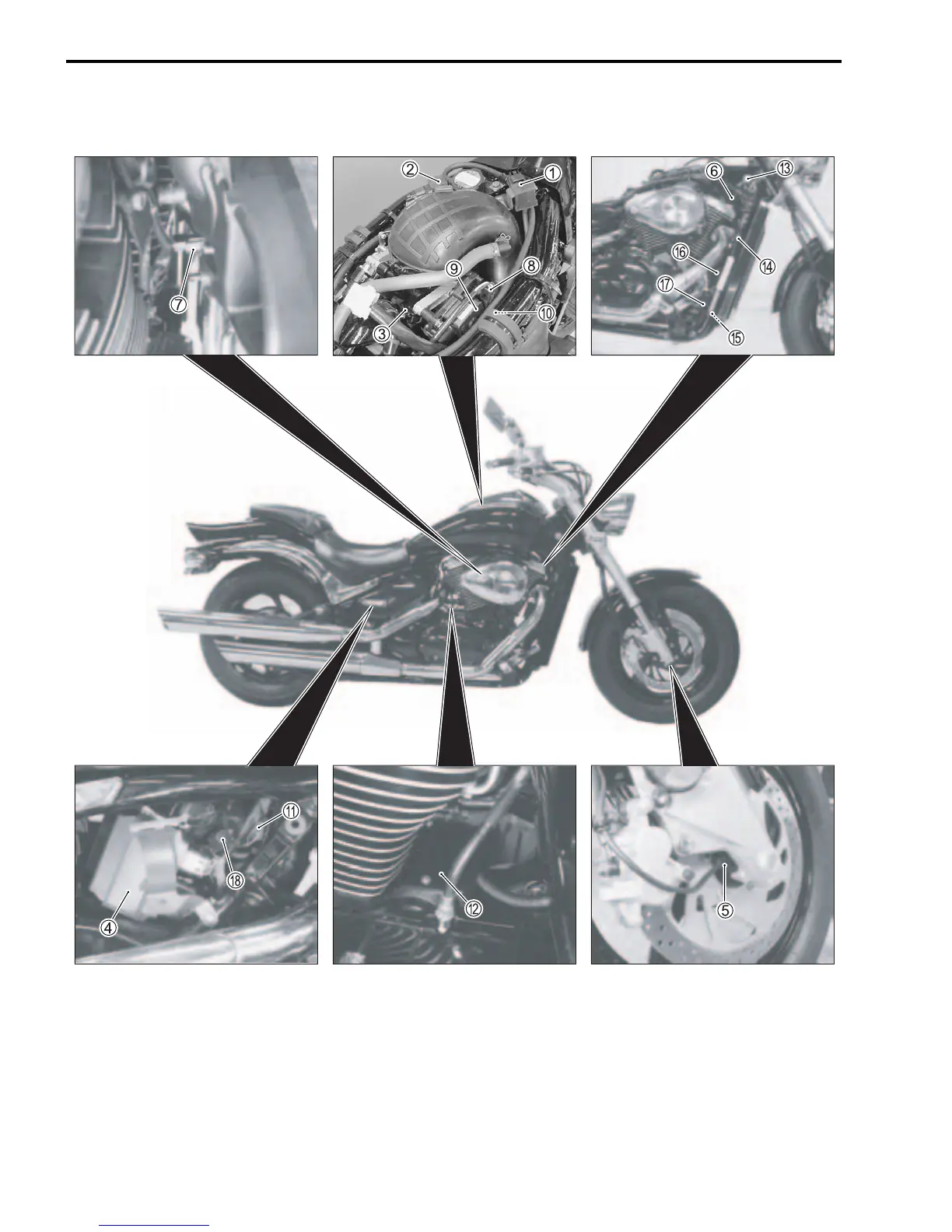

LOCATION OF ELECTRICAL COMPONENTS
1 IAP sensor (#2) (5-33) 0 TP sensor (5-37)
2 IAP sensor (#1) (5-33) A TO sensor (5-52)
3 Fuel injector (#1) (5-66) B Starter motor
4 ECM (Engine Control Module) C Ignition switch
5 Speed sensor D Horn
6 Ignition coil (#2) E Cooling fan thermo-switch (7-9)
7 IAT sensor (5-47) F Cooling fan (7-7)
8 STP sensor (5-59) G Rear brake switch
9 STV actuator (5-56) H Mode selection switch coupler
SAMPLE

Suzuki Boulevard M50 Specifications

General

Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Front Tire	130/90-16M/C 67H, tubeless
Rear Tire	170/80-15M/C 77H, tubeless
Ground Clearance	140 mm (5.5 in)
Seat Height	700 mm (27.6 in)
Engine Type	4-stroke, liquid-cooled, V-twin
Bore x Stroke	83.0 mm x 74.4 mm
Rear Suspension	coil spring, oil damped
Front Brakes	Single hydraulic disc
Rear Brakes	Drum
Fuel Tank Capacity	15.5 L (4.1 US gal)
Wheelbase	1, 655 mm (65.2 in)
