8-52 CHASSIS

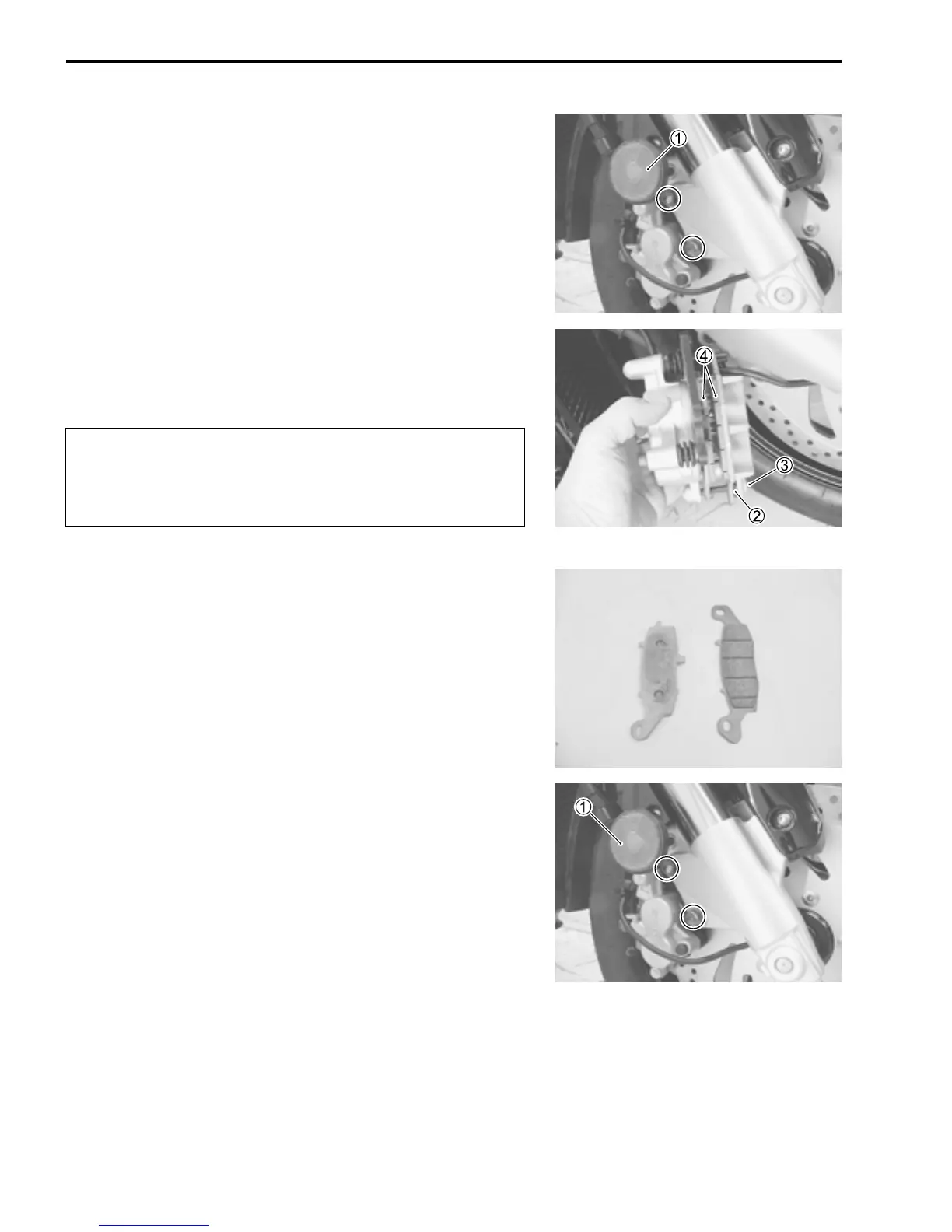

BRAKE PAD REPLACEMENT
• Remove the reflex reflector 1. (For E-03, 28, 33)
• Remove the brake caliper by removing the brake caliper
mounting bolts.
• Remove the pin 2.
• Remove the pad pin 3.
• Remove the brake pads 4.

• Install the new brake pads.
• Tighten the brake caliper mounting bolts to the specified
torque.
 Brake caliper mounting bolts: 39 N·m (3.9 kgf-m, 28 lb-ft)
• Install the reflex reflector 1. (For E-03, 28, 33)
NOTE:
After replacing the brake pads, pump the brake lever a few times
to check for proper brake operation and then check the brake
fluid level.
* Do not operate the brake lever during or after brake
pad removal.
* Replace the brake pads as a set, otherwise braking
performance will be adversely affected.
