8-24 CHASSIS
STEERING

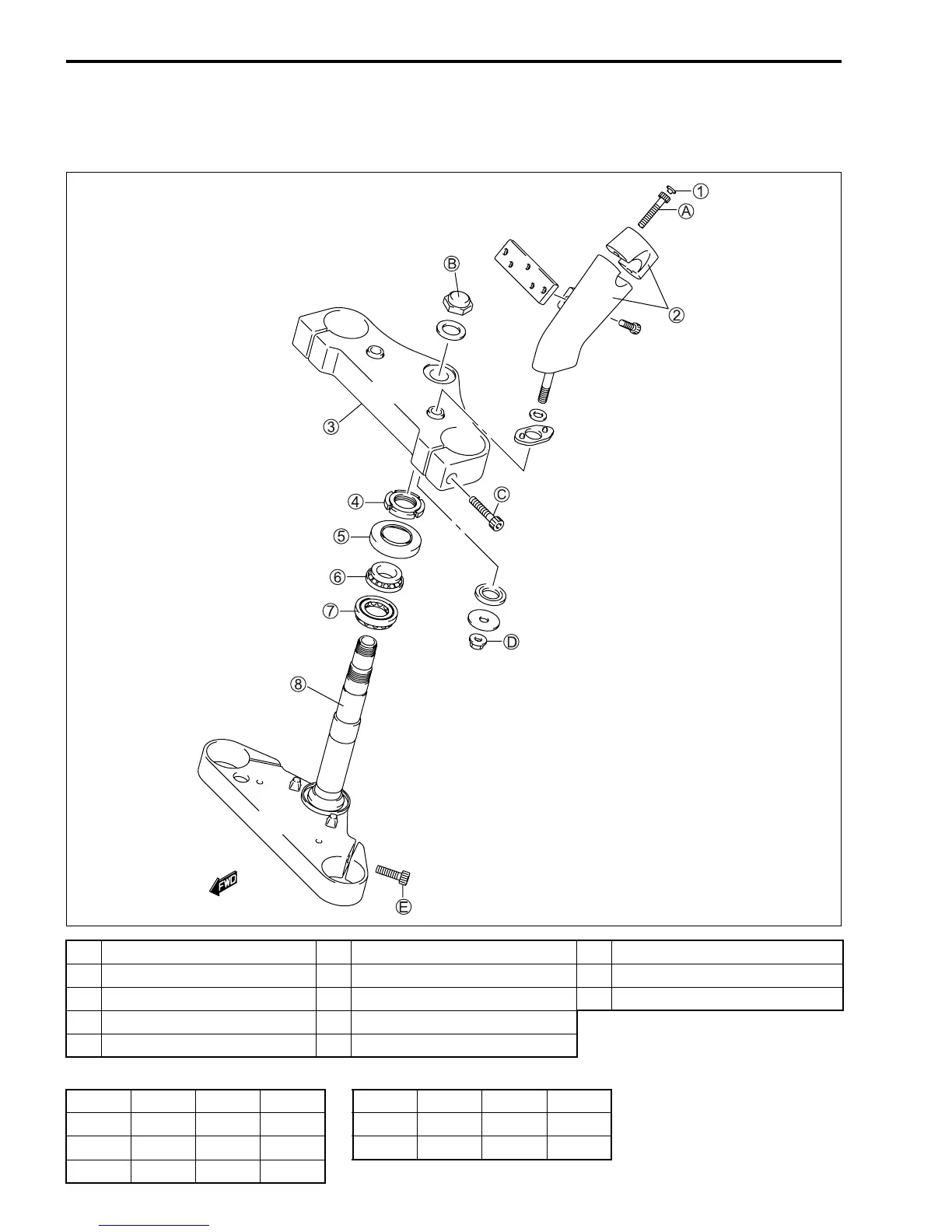

CONSTRUCTION

1 Handlebar set bolt cap 6 Steering stem upper bearing C Front fork upper clamp bolt
2 Handlebar clamp/holder 7 Steering stem lower bearing D Handlebar holder nut
3 Steering stem upper bracket 8 Steering stem E Front fork lower clamp bolt
4 Steering stem nut A Handlebar set bolt
5 Dust seal B Steering stem head nut
ITEM N·m kgf-m lb-ft ITEM N·m kgf-m lb-ft
A 23 2.3 16.5 D 54 5.4 39.0
B 90 9.0 65.5 E 33 3.3 24.0
C 23 2.3 16.5
SAMPLE

Suzuki Boulevard M50 Specifications

General

Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Front Tire	130/90-16M/C 67H, tubeless
Rear Tire	170/80-15M/C 77H, tubeless
Ground Clearance	140 mm (5.5 in)
Seat Height	700 mm (27.6 in)
Engine Type	4-stroke, liquid-cooled, V-twin
Bore x Stroke	83.0 mm x 74.4 mm
Rear Suspension	coil spring, oil damped
Front Brakes	Single hydraulic disc
Rear Brakes	Drum
Fuel Tank Capacity	15.5 L (4.1 US gal)
Wheelbase	1, 655 mm (65.2 in)
