FI SYSTEM 5-9
USING THE MULTI-CIRCUIT TESTER
• Use the Suzuki multi-circuit tester (09900-25008).
• Use well-charged batteries in the tester.
• Be sure to set the tester to the correct testing range.
USING THE TESTER
• Incorrectly connecting the + and - probes may cause the
inside of the tester to burnout.
• If the voltage and current are not known, make measure-
ments using the highest range.
• When measuring the resistance with the multi-circuit tester, ∞
will be shown as 10.00 MΩ and “1” flashes in the display.
• Check that no voltage is applied before making the measure-
ment. If voltage is applied, the tester may be damaged.
• After using the tester, turn the power off.
 09900-25008: Multi-circuit tester set
NOTE:
* When connecting the multi-circuit tester, use a needle pointed
probe set to the back side of the lead wire coupler and connect
the probes of tester to them.
* Use a needle pointed probe set to prevent the rubber of the
water proof coupler from damage.
 09900-25009: Needle pointed probe set

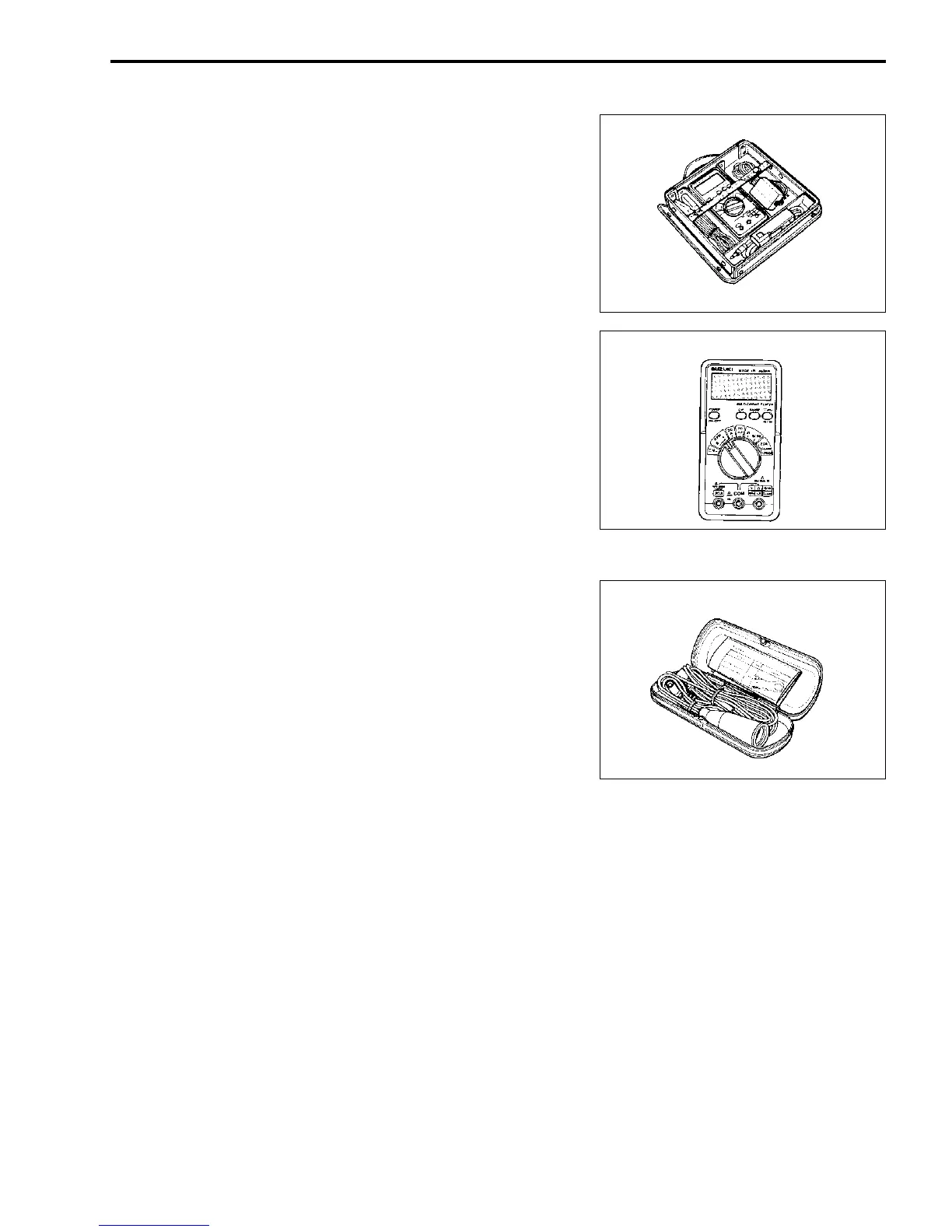

MULTI-CIRCUIT TESTER
NEEDLE POINTED PROBE SET
SAMPLE

Suzuki Boulevard M50 Specifications

General

Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Front Tire	130/90-16M/C 67H, tubeless
Rear Tire	170/80-15M/C 77H, tubeless
Ground Clearance	140 mm (5.5 in)
Seat Height	700 mm (27.6 in)
Engine Type	4-stroke, liquid-cooled, V-twin
Bore x Stroke	83.0 mm x 74.4 mm
Rear Suspension	coil spring, oil damped
Front Brakes	Single hydraulic disc
Rear Brakes	Drum
Fuel Tank Capacity	15.5 L (4.1 US gal)
Wheelbase	1, 655 mm (65.2 in)
