ELECTRICAL SYSTEM 9-29
INSPECTION

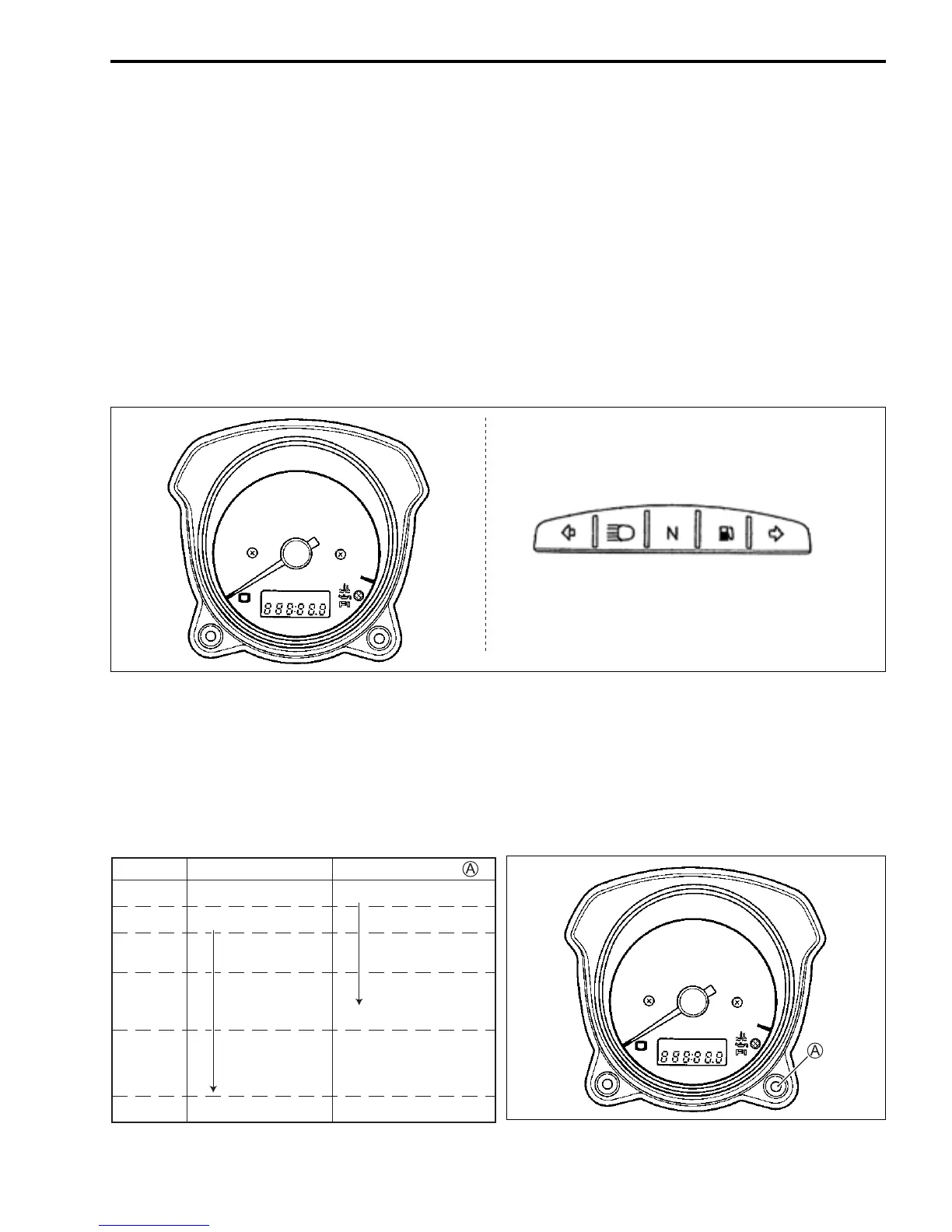

LED (LIGHT EMITTING DIODE)
Check that the LED lights (FI light, Oil pressure indicator light, Engine coolant indicator light and Fuel level
indicator light) immediately after turning the ignition switch on. Also, other LED lights (Neutral indicator light,
High-beam indicator light and Turn signal indicator light) can be checked by depending on each switch posi-
tion.
If the LED fails in operation, replace the speedometer unit with a new one after checking its wire har-
ness/coupler.
STEPPING MOTOR
Check that the pointer calibrates itself immediately after turning the ignition switch on and stops at zero
point.
If abnormal condition is found, replace the speedometer unit with a new one after checking its wire har-
ness/coupler.
NOTE:
The pointer may not return to the proper position even turning the ignition switch on under low temperature
condition. In that case, you can reset the pointer to the proper position by following the instruction below:
1) With the function switch A pressed, turn the ignition switch on.
2) Release the function switch A, 3 to 5 seconds after turning the ignition switch on.
3) Press the function switch A twice (within 1 second). →Reset
* Complete the operation within 10 seconds after the ignition switch has been turned on.
Pointer will return to the starting point right after the completion of the operation. In the case of the pointer
not returning to the proper position after doing above, replace the speedometer unit.
Time Ignition switch Adjuster switch
PUSH
Release
Push
Push→Reset
OFF
ON
0
•
•
•
•
•
•
3 sec.
•
5 sec.
10 sec.
