EMISSION CONTROL INFORMATION 11-5

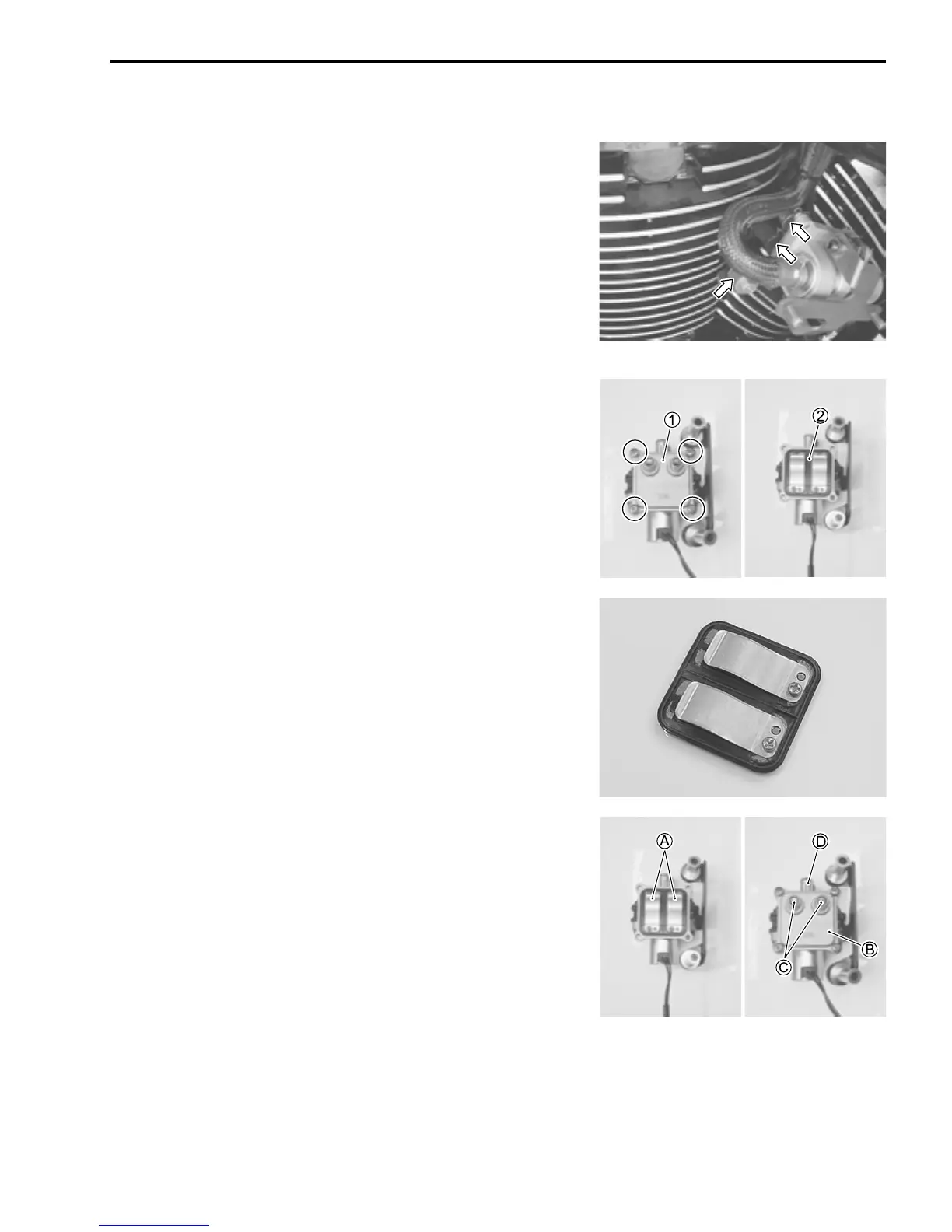

PAIR (AIR SUPPLY) SYSTEM INSPECTION
HOSES
• Remove the PAIR cover. (3-5)
• Inspect the hoses for wear or damage.
• Inspect that the hoses for secure connection.
PAIR REED VALVE
• Remove the PAIR control solenoid valve. (3-5)
• Remove the reed valve case 1 and PAIR reed valve 2.
• Inspect the reed valve for the carbon deposit.
• If the carbon deposit is found in the reed valve, replace the
PAIR control solenoid valve with a new one.
• Install the reed valve A and its case B with outlet pipes C
the facing the inlet pipe D.
