ENGINE 3-11
ENGINE DISASSEMBLY

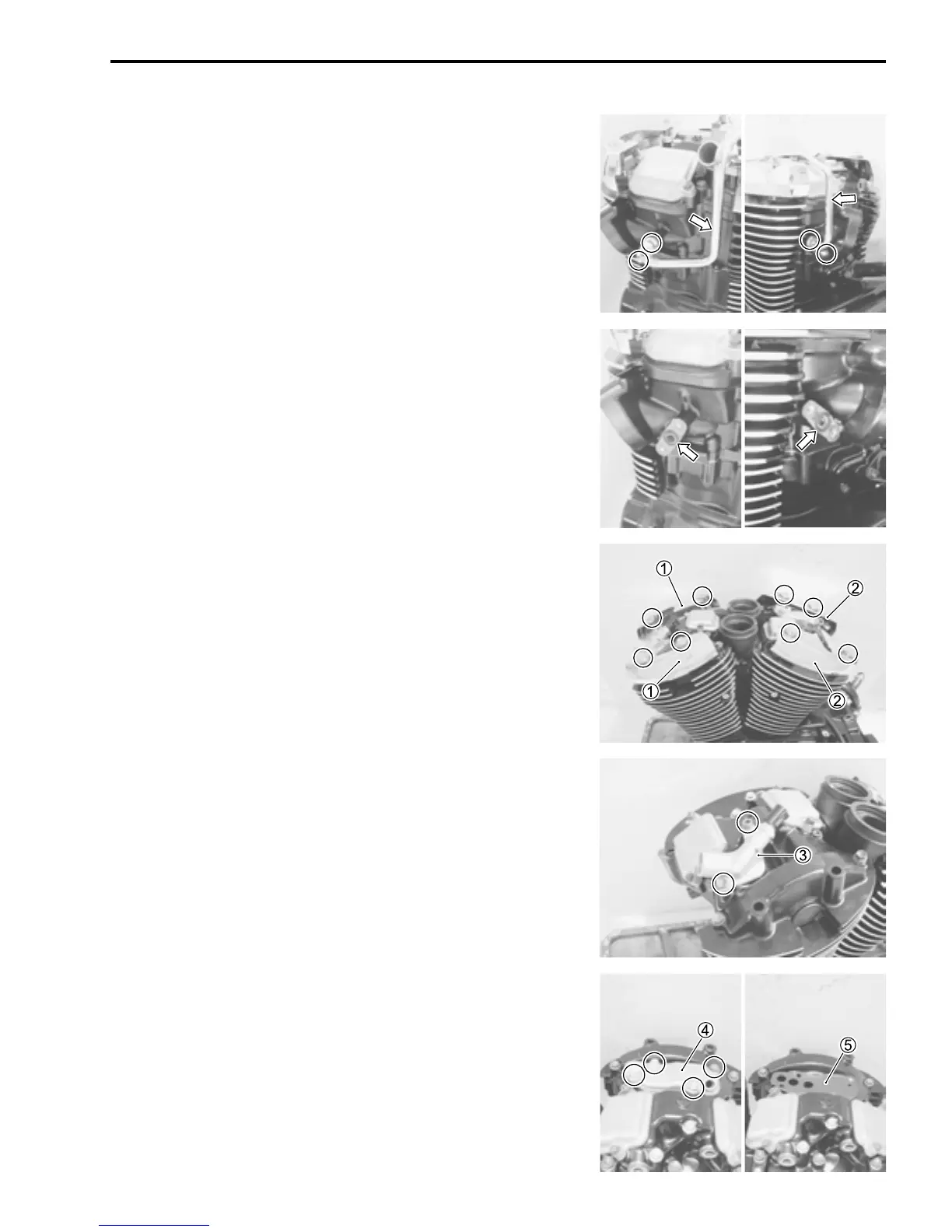

• Remove the PAIR pipes.
• Remove the spark plugs.
 09930-10121: Spark plug wrench set
• Remove the gaskets.
• Remove the cylinder head cover caps (1, 2).
• Remove the water outlet union 3.
• Remove the breather cover 4 and gasket 5.
