6-2 FUEL SYSTEM AND THROTTLE BODY
FUEL DELIVERY SYSTEM
The fuel delivery system consists of the fuel tank, fuel pump, fuel filters, fuel feed hose, fuel delivery pipe
(including fuel injectors) and fuel pressure regulator. There is no fuel return hose. The fuel in the fuel tank is
pumped up by the fuel pump and pressurized fuel flows into the injector installed in the fuel delivery pipe.
Fuel pressure is regulated by the fuel pressure regulator. As the fuel pressure applied to the fuel injector (the
fuel pressure in the fuel delivery pipe) is always kept at absolute fuel pressure of 3.0 kgf/cm² (300 kPa, 43
psi), the fuel is injected into the throttle body in conic dispersion when the injector opens according to the
injection signal from the ECM.
The fuel relieved by the fuel pressure regulator flows back to the fuel tank.

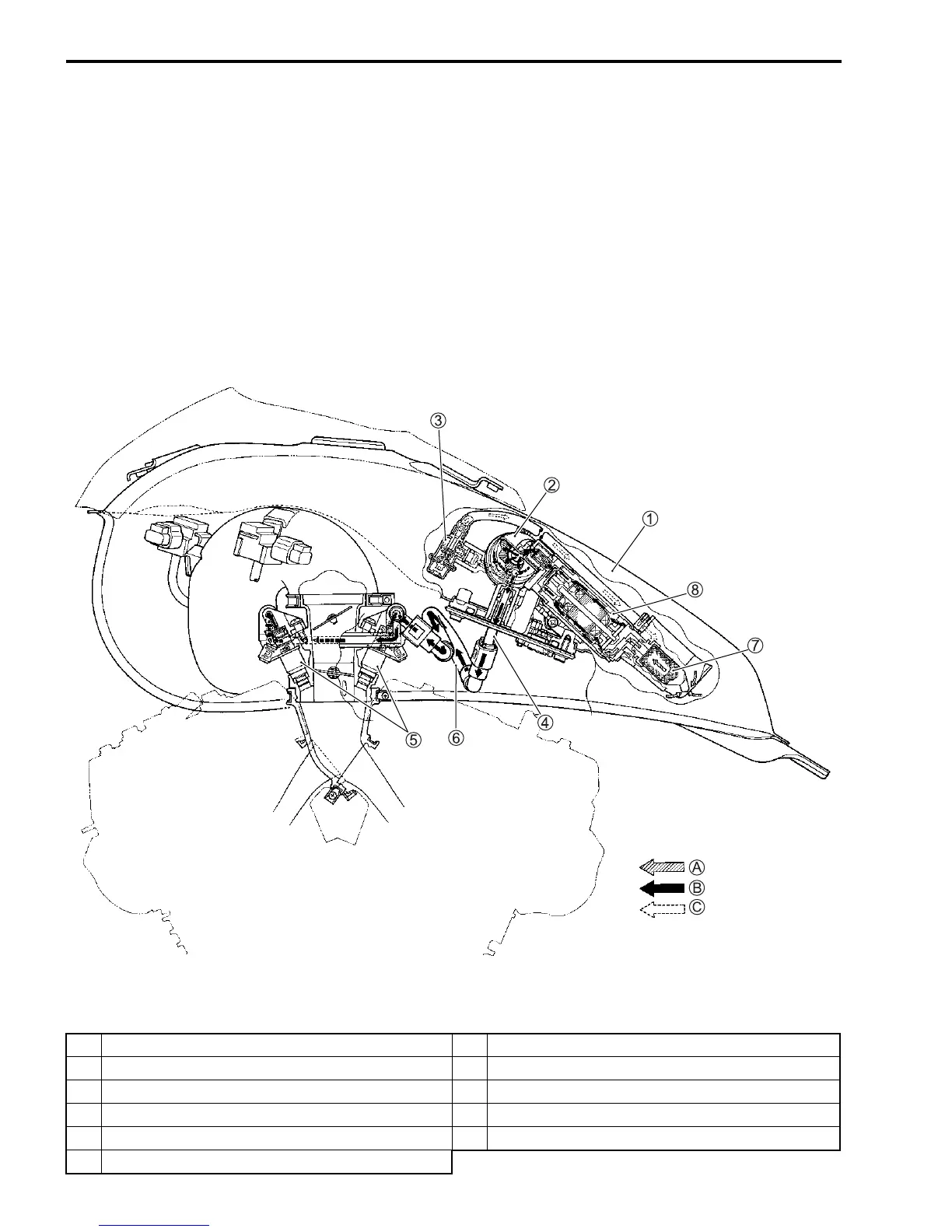

1 Fuel tank 7 Fuel mesh filter (For low pressure)
2 Fuel filter (For high pressure) 8 Fuel pump
3 Fuel pressure regulator A Before-pressurized fuel
4 Fuel delivery pipe B Pressurized fuel
5 Fuel injector C Relieved fuel
6 Fuel feed hose
SAMPLE

Suzuki Boulevard M50 Specifications

General

Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Front Tire	130/90-16M/C 67H, tubeless
Rear Tire	170/80-15M/C 77H, tubeless
Ground Clearance	140 mm (5.5 in)
Seat Height	700 mm (27.6 in)
Engine Type	4-stroke, liquid-cooled, V-twin
Bore x Stroke	83.0 mm x 74.4 mm
Rear Suspension	coil spring, oil damped
Front Brakes	Single hydraulic disc
Rear Brakes	Drum
Fuel Tank Capacity	15.5 L (4.1 US gal)
Wheelbase	1, 655 mm (65.2 in)
