ELECTRICAL SYSTEM 9-5

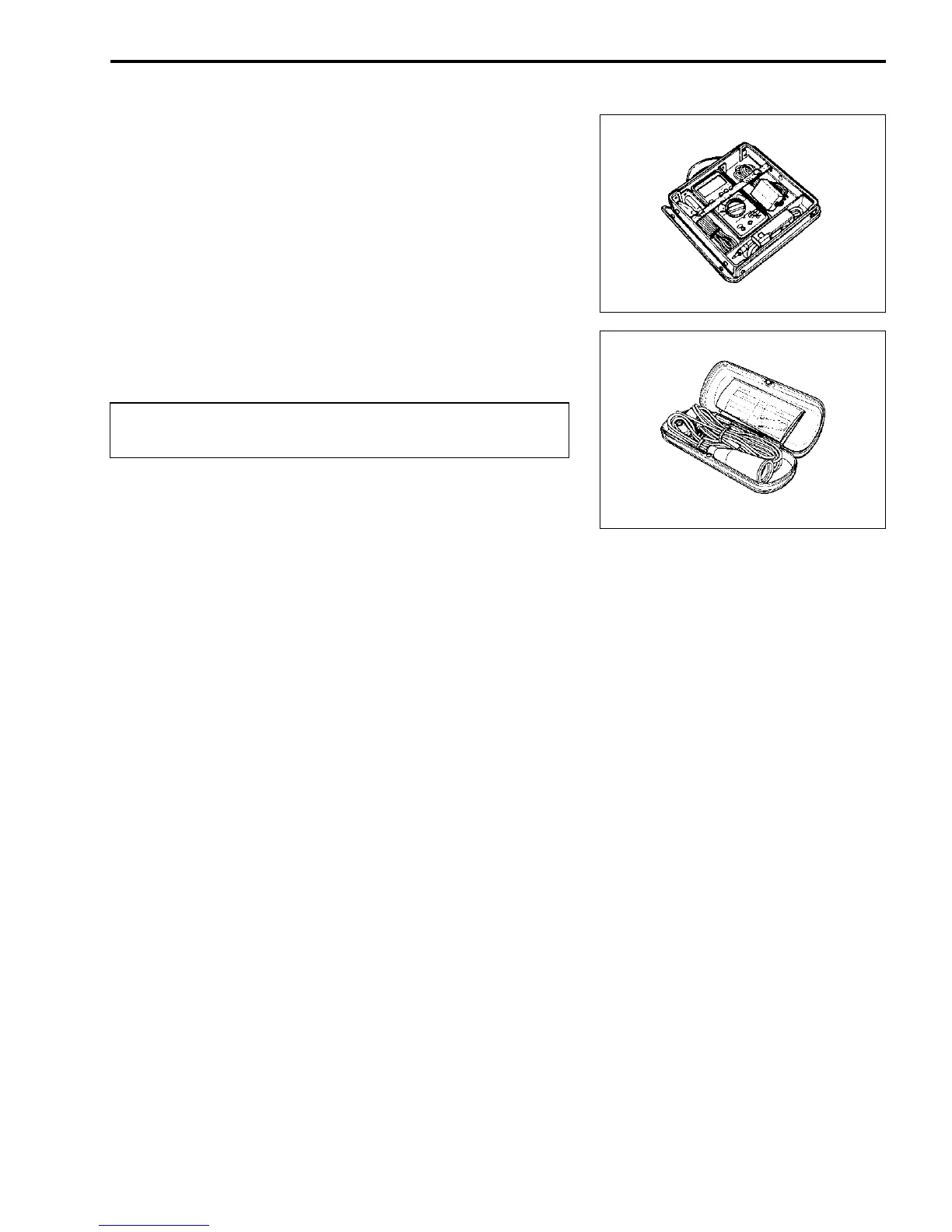

USING THE MULTI-CIRCUIT TESTER
• Properly use the multi-circuit tester + and - probes.
Improper use can cause damage to the motorcycle and
tester.
• If the voltage and current values are not known, begin mea-
suring in the highest range.
• When measuring the resistance, make sure that no voltage is
applied. If voltage is applied, the tester will be damaged.
• After using the tester, be sure to turn the switch to the OFF
position.
 09900-25008: Multi-circuit tester set

NOTE:
* When connecting the multi-circuit tester, use the needle
pointed probe to the back side of the lead wire coupler and
connect the probes of tester to them.
* Use the needle pointed probe to prevent the rubber of the
water proof coupler from damage.
 09900-25009: Needle pointed probe set
Before using the multi-circuit tester, read its instruc-
tion manual.
SAMPLE

Suzuki Boulevard M50 Specifications

General

Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Front Tire	130/90-16M/C 67H, tubeless
Rear Tire	170/80-15M/C 77H, tubeless
Ground Clearance	140 mm (5.5 in)
Seat Height	700 mm (27.6 in)
Engine Type	4-stroke, liquid-cooled, V-twin
Bore x Stroke	83.0 mm x 74.4 mm
Rear Suspension	coil spring, oil damped
Front Brakes	Single hydraulic disc
Rear Brakes	Drum
Fuel Tank Capacity	15.5 L (4.1 US gal)
Wheelbase	1, 655 mm (65.2 in)
