11-10 EMISSION CONTROL INFORMATION

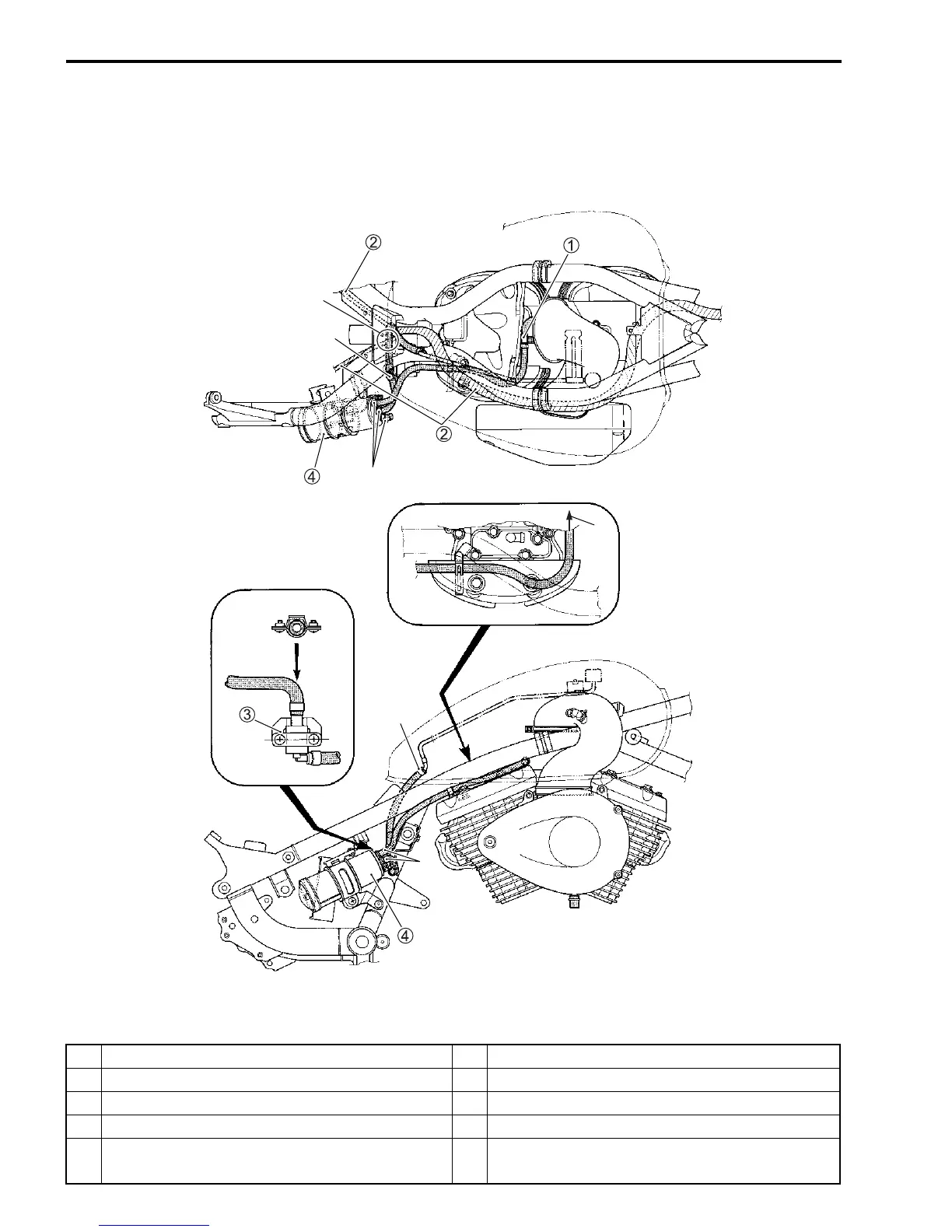

EVAP CANISTER HOSE ROUTING (Only for E-33)
*3
*1
*2
*4
*6
*5
1 Three way joint *2 White paint mark should face upside.
2 Wiring harness *3 To three way joint.
3 Fuel shut-off valve *4 Face the clamp end right side.
4 EVAP canister *5 Face the clamp end right side.
*1
Pass through the purge hose over the wiring
harness.
*6 Face the clamp end forward.
SAMPLE

Suzuki Boulevard M50 Specifications

General

Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Front Tire	130/90-16M/C 67H, tubeless
Rear Tire	170/80-15M/C 77H, tubeless
Ground Clearance	140 mm (5.5 in)
Seat Height	700 mm (27.6 in)
Engine Type	4-stroke, liquid-cooled, V-twin
Bore x Stroke	83.0 mm x 74.4 mm
Rear Suspension	coil spring, oil damped
Front Brakes	Single hydraulic disc
Rear Brakes	Drum
Fuel Tank Capacity	15.5 L (4.1 US gal)
Wheelbase	1, 655 mm (65.2 in)
