EMISSION CONTROL INFORMATION 11-7

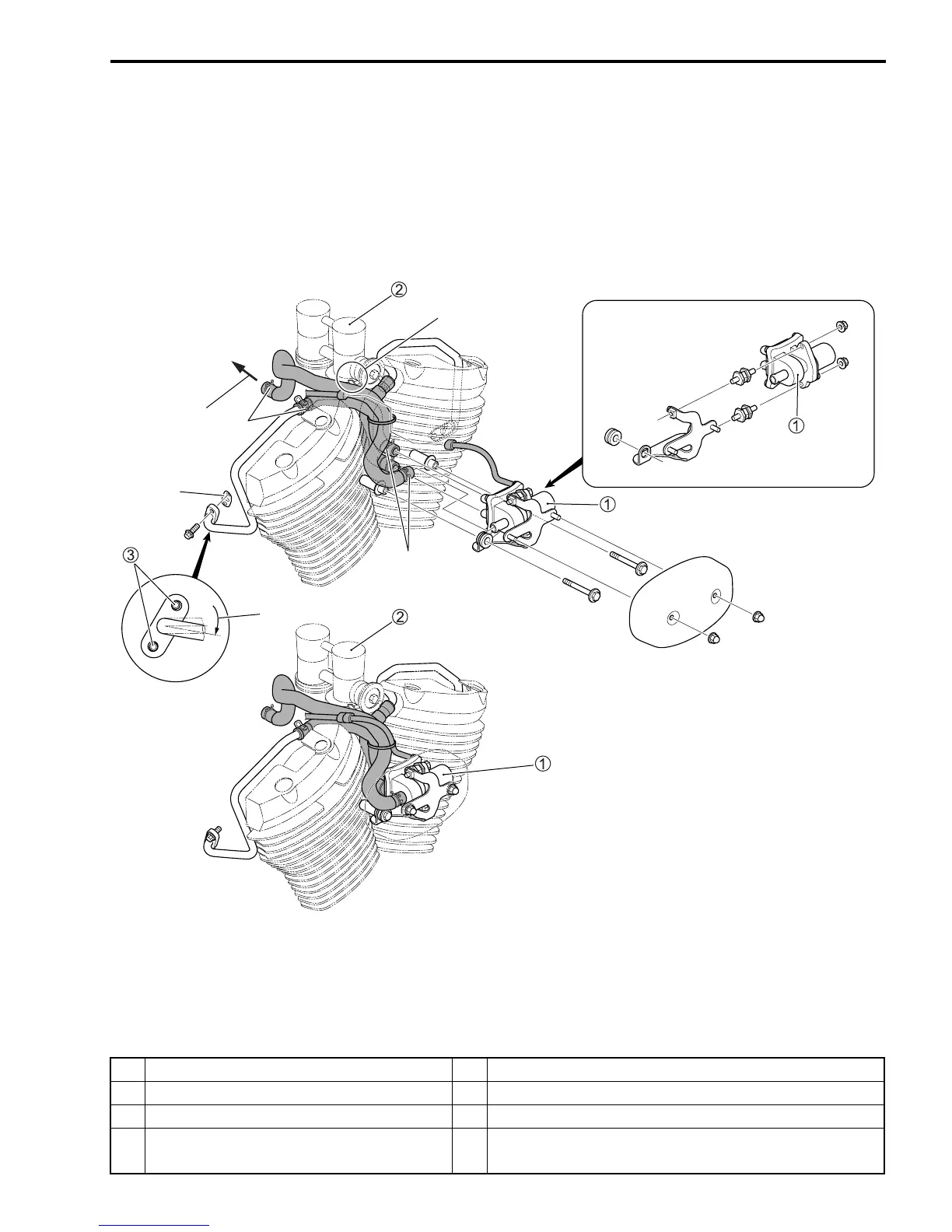

PAIR (AIR SUPPLY) SYSTEM HOSE ROUTING
*2
*2
*1
*3
*5
*4
1 PAIR control solenoid valve *2 Matching mark
2 Throttle body *3 Do not contact the hose and throttle cable drum.
3 Bolt *4 The sealant side should face PAIR pipe side.
*1 To air cleaner box. *5
With the bolt lightly contacted with the PAIR pipe,
tighten the bolt.
SAMPLE

Suzuki Boulevard M50 Specifications

General

Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Front Tire	130/90-16M/C 67H, tubeless
Rear Tire	170/80-15M/C 77H, tubeless
Ground Clearance	140 mm (5.5 in)
Seat Height	700 mm (27.6 in)
Engine Type	4-stroke, liquid-cooled, V-twin
Bore x Stroke	83.0 mm x 74.4 mm
Rear Suspension	coil spring, oil damped
Front Brakes	Single hydraulic disc
Rear Brakes	Drum
Fuel Tank Capacity	15.5 L (4.1 US gal)
Wheelbase	1, 655 mm (65.2 in)
