CHASSIS 8-25
REMOVAL AND DISASSEMBLY

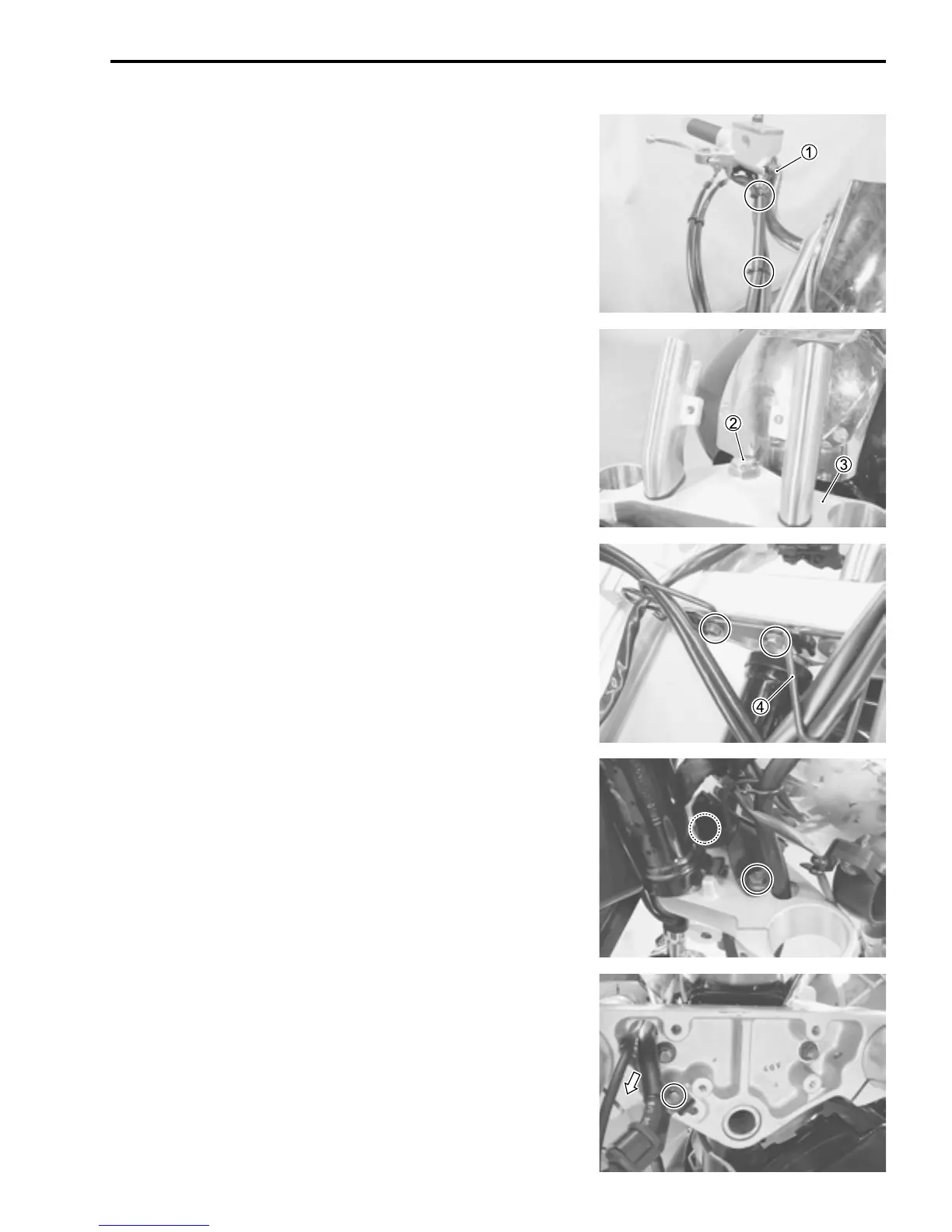

• Remove the front forks. (8-13)
• Remove the brake hose union bolt 1. (8-57)
• Disconnect the clamps.
• Remove the handlebar. (8-22)
• Remove the steering stem head nut 2 and washer.
• Remove the steering stem upper bracket 3.
• Remove the speed sensor lead wire coupler. (9-31)
• Remove the cable guide 4.
• Remove the headlight mounting bolts.
• Remove the brake hose guide.
• Remove the brake hose and speed sensor lead wire.
SAMPLE

Suzuki Boulevard M50 Specifications

General

Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Front Tire	130/90-16M/C 67H, tubeless
Rear Tire	170/80-15M/C 77H, tubeless
Ground Clearance	140 mm (5.5 in)
Seat Height	700 mm (27.6 in)
Engine Type	4-stroke, liquid-cooled, V-twin
Bore x Stroke	83.0 mm x 74.4 mm
Rear Suspension	coil spring, oil damped
Front Brakes	Single hydraulic disc
Rear Brakes	Drum
Fuel Tank Capacity	15.5 L (4.1 US gal)
Wheelbase	1, 655 mm (65.2 in)
