COOLING AND LUBRICATION SYSTEM 7-3

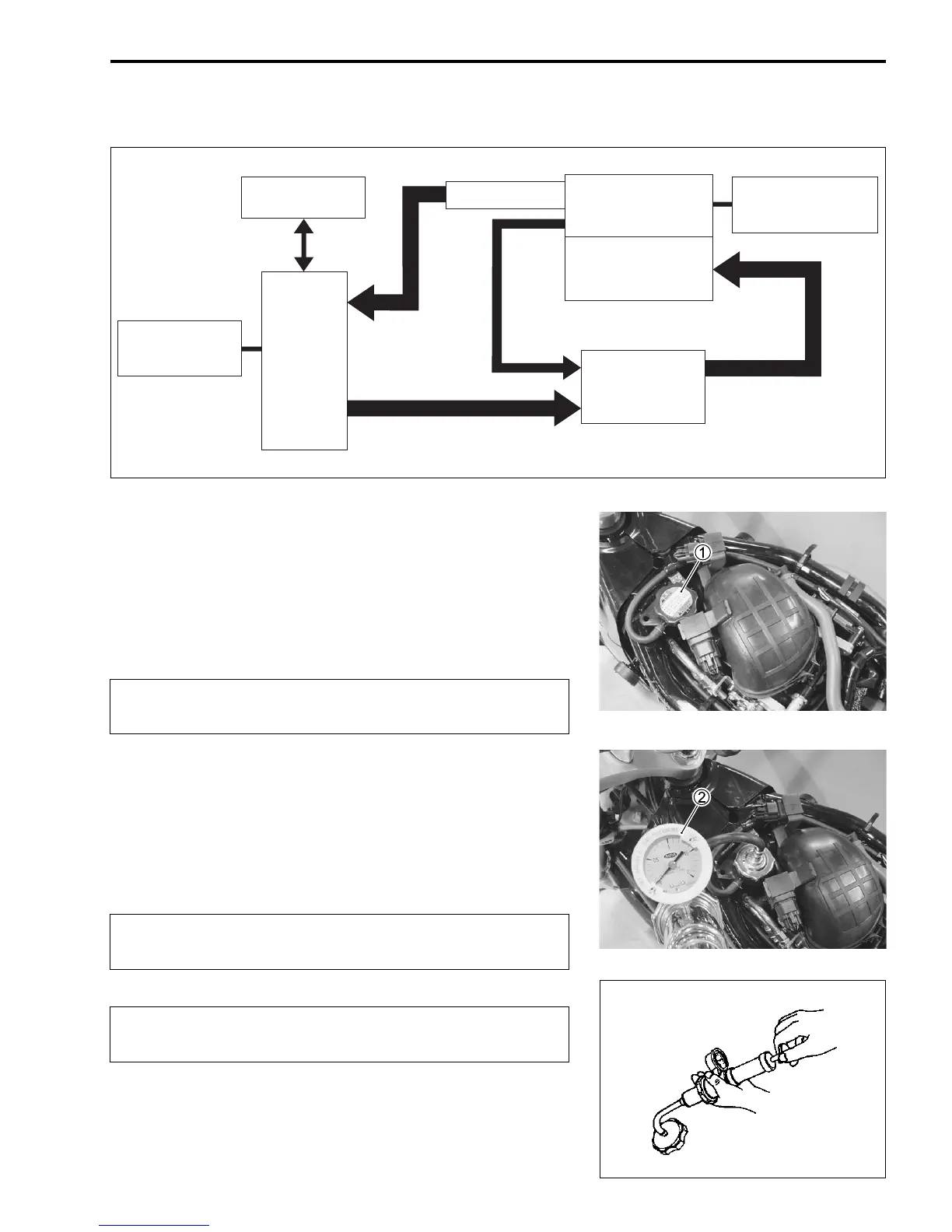

COOLING CIRCUIT
COOLING CIRCUIT INSPECTION
Before removing the radiator and draining the engine coolant,
inspect the cooling circuit for tightness.
• Remove the fuel tank. (6-3)
• Remove the radiator cap 1 and connect the tester 2 to the
filler.

• Give a pressure of about 120 kPa (1.2 kgf/cm², 17 psi) and
see if the system holds this pressure for 10 seconds.
• If the pressure should fall during this 10-second interval, it
means that there is a leaking point in the system. In such a
case, inspect the entire system and replace the leaking com-
ponent or part.


WATER
PUMP
RADIATOR
COOLING
FAN THERMO
SWITCH
ENGINE COOLANT
TEMPERATURE
SENSOR
THERMOSTAT
CYLINDER HEAD
CYLINDER
RESERVOIR
TANK
Do not remove the radiator cap when the engine is
hot.
When removing the radiator cap tester, put a rag on
the filler to prevent spouting of engine coolant.
Do not allow the pressure to exceed the radiator cap
release pressure, or the radiator can be damaged.
SAMPLE

Suzuki Boulevard M50 Specifications

General

Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Front Tire	130/90-16M/C 67H, tubeless
Rear Tire	170/80-15M/C 77H, tubeless
Ground Clearance	140 mm (5.5 in)
Seat Height	700 mm (27.6 in)
Engine Type	4-stroke, liquid-cooled, V-twin
Bore x Stroke	83.0 mm x 74.4 mm
Rear Suspension	coil spring, oil damped
Front Brakes	Single hydraulic disc
Rear Brakes	Drum
Fuel Tank Capacity	15.5 L (4.1 US gal)
Wheelbase	1, 655 mm (65.2 in)
