ENGINE 3-3
ENGINE REMOVAL AND INSTALLATION

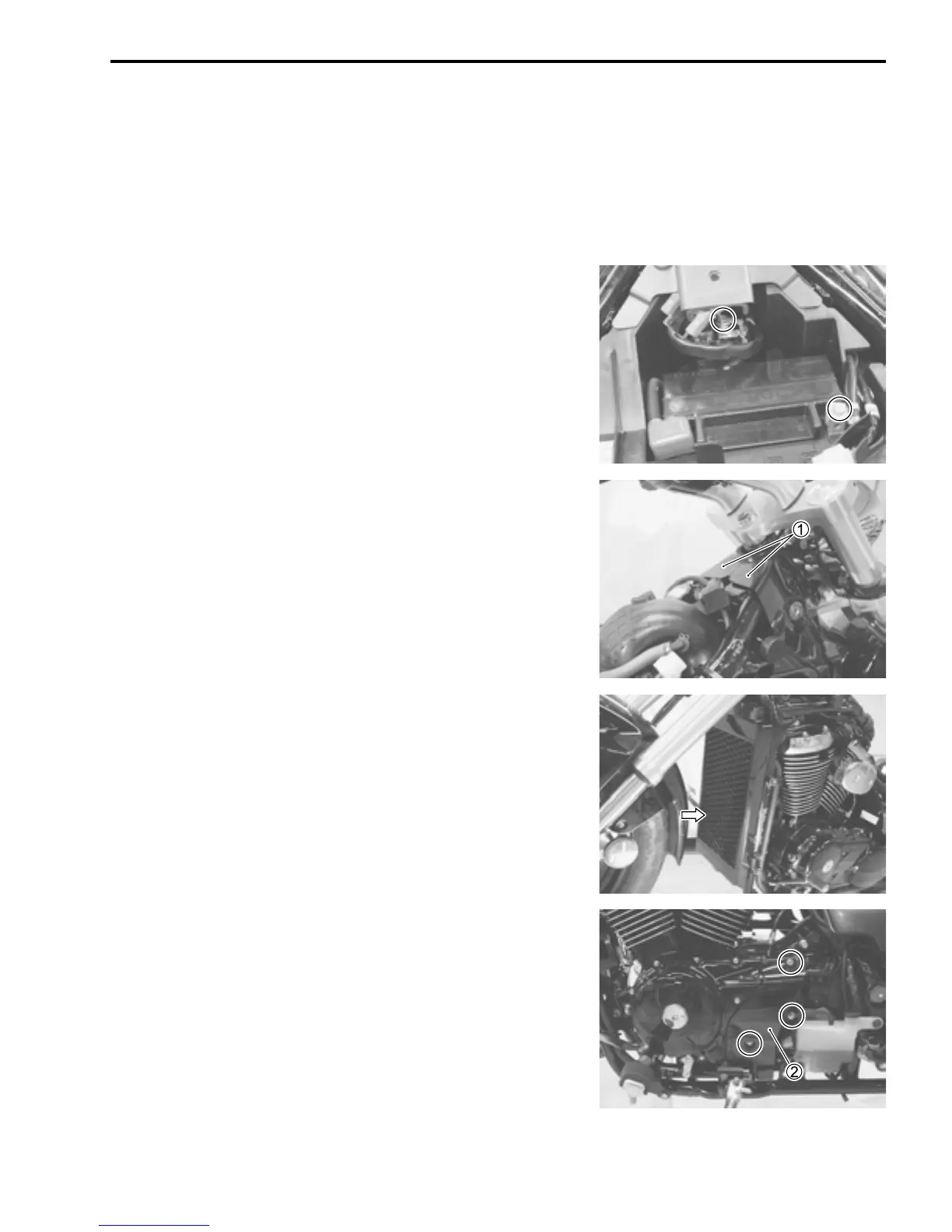

ENGINE REMOVAL
Before taking the engine out of the frame, wash the engine
using a steam cleaner. Engine removal is sequentially explained
in the following steps. Reinstall the engine by reversing the
removal procedure.
• Drain engine oil. (2-11)
• Drain engine coolant. (2-17)
• Remove the seats. (8-3)
• Remove the fuel tank. ( 6-3)
• Disconnect the battery - lead wire and starter motor lead
wire.
• Remove the frame head covers 1.
• Remove the radiator. (7-4)
• Remove the left frame cover. (8-3)
• Remove the tool box and secondary gear case cover.
(2-16)
• Remove the secondary drive unit cover 2.
SAMPLE

Suzuki Boulevard M50 Specifications

General

Compression Ratio	9.4:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Front Tire	130/90-16M/C 67H, tubeless
Rear Tire	170/80-15M/C 77H, tubeless
Ground Clearance	140 mm (5.5 in)
Seat Height	700 mm (27.6 in)
Engine Type	4-stroke, liquid-cooled, V-twin
Bore x Stroke	83.0 mm x 74.4 mm
Rear Suspension	coil spring, oil damped
Front Brakes	Single hydraulic disc
Rear Brakes	Drum
Fuel Tank Capacity	15.5 L (4.1 US gal)
Wheelbase	1, 655 mm (65.2 in)
