Suzuki DL1000 Service Manual

ENGINE 3-57

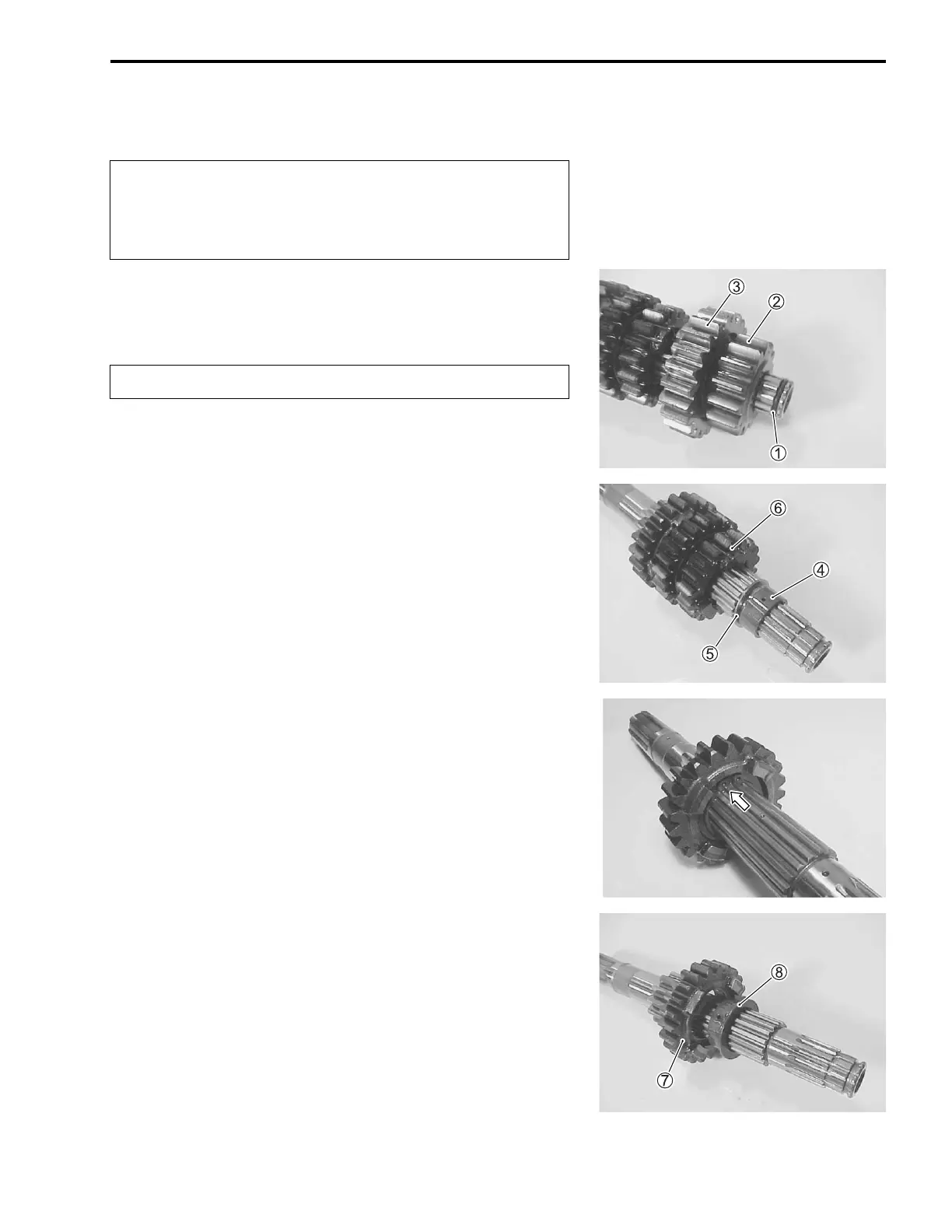

DISASSEMBLY
#
Countershaft
• Remove the O-ring
1, 2nd drive gear 2 and top drive gear
3.
#
• Remove the top drive gear bushing
4, washer 5, and 3rd/4th
drive gears
6.
• Remove the snap ring with the special tool.
" 09900-06107: Snap ring pliers
• Remove the 5th drive gear
7 and its bushing 8.
Be sure to identify each removed part as to its loca-
tion, and lay the parts out in groups designated as
“Drive” and “Driven”, so that each will be restored to
the original location during assembly.
The removed O-ring must be replaced with a new one.

Suzuki DL1000 Specifications

General

Displacement	996cc
Compression Ratio	11.3:1
Final Drive	Chain
Starter	Electric
Bore x Stroke	98.0mm x 66.0mm
Transmission	6-speed
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Fuel Tank Capacity	22.0 L (5.8 US gal)
Ground Clearance	165 mm (6.5 in)
Ignition	Electronic
Fuel System	Electronic Fuel Injection
