6-54 CHASSIS
REMOUNTING

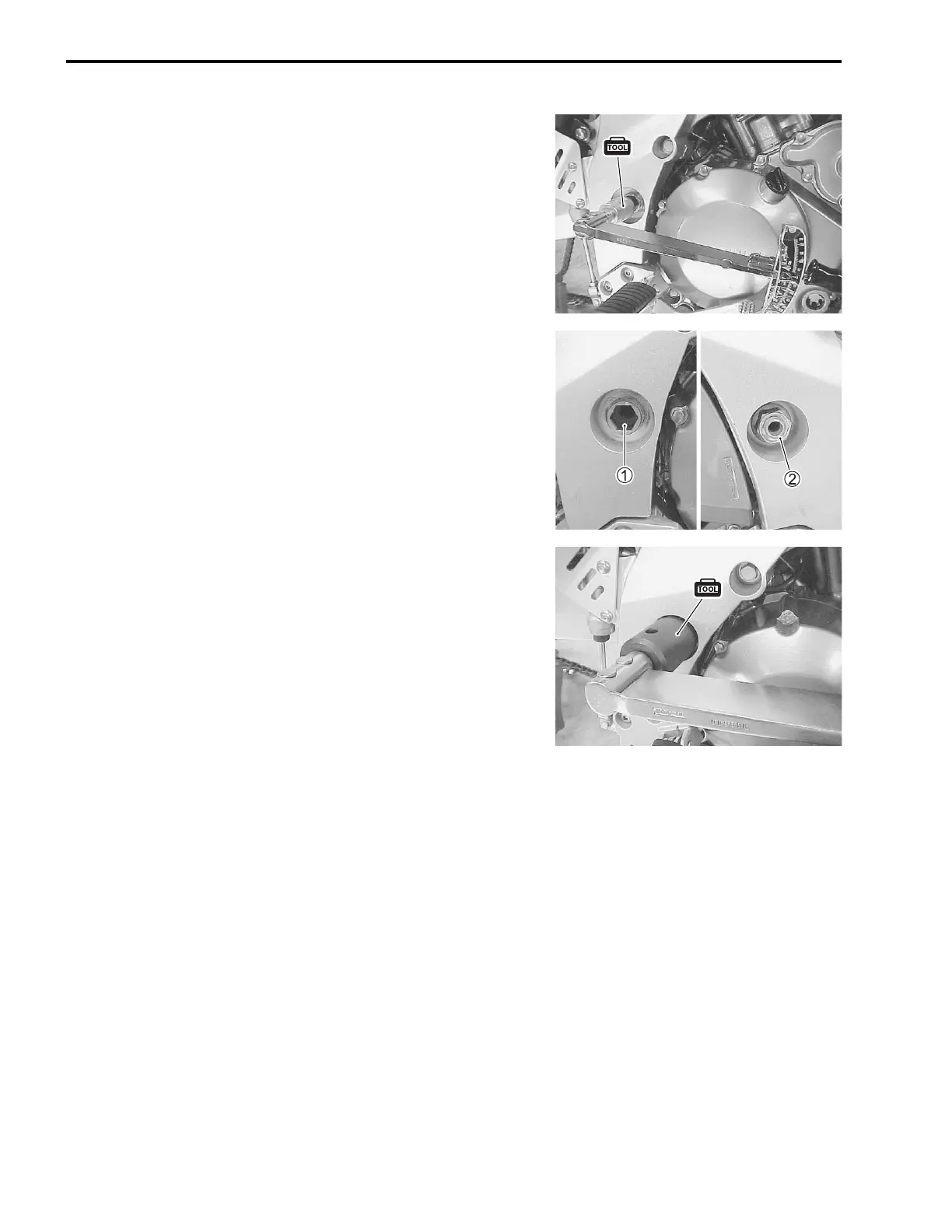

Remount the swingarm in the reverse order of disassembly and
removal, and pay attention to the following points:
SWINGARM
• Insert the swingarm pivot shaft and tighten it to the specified
torque by using the special tool.
& Swingarm pivot shaft: 15 N·m (1.5 kgf-m, 11.0 lb-ft)
# 09944-28320: Hexagon bit 19 mm
• Hold the swingarm pivot shaft
1 and tighten the swingarm
pivot nut
2 to the specified torque.
& Swingarm pivot nut: 100 N·m (10.0 kgf-m, 72.5 lb-ft)
• Tighten the swingarm pivot lock nut to the specified torque
with the special tool.
# 09940-14940: Swingarm pivot thrust adjuster socket
wrench
& Swingarm pivot lock nut: 90 N·m (9.0 kgf-m, 65.0 lb-ft)
To Next Page
