ELECTRICAL SYSTEM 7-11
STARTER MOTOR REMOVAL AND
DISASSEMBLY
• Remove the engine under cover.
• Remove the starter motor and disconnect the starter motor
lead wire
1.

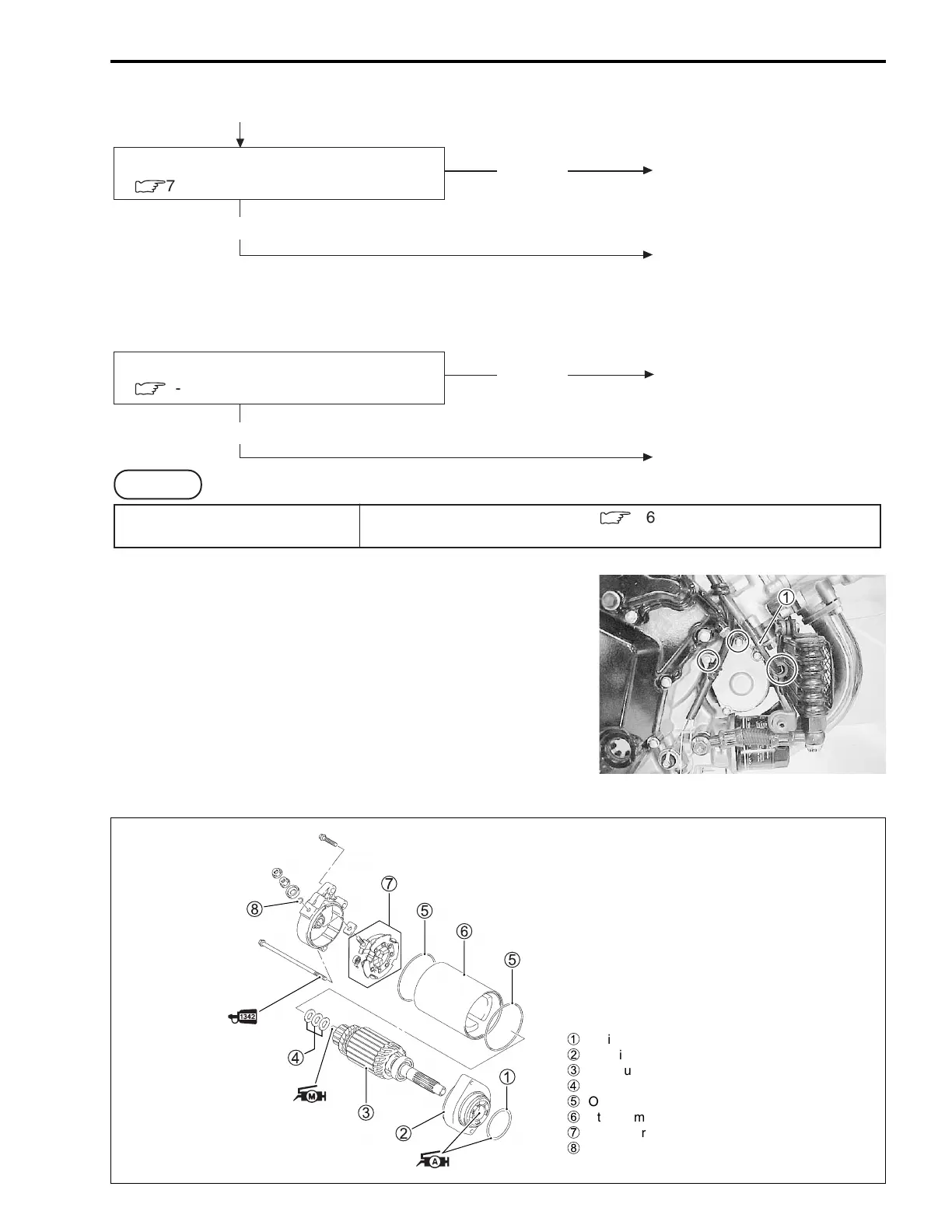

• Disassemble the starter motor as shown in the illustration.
Check the starter relay.
(
:
7-13)
Incorrect
Correct
The starter motor runs when the transmission is in neutral with the side-stand up or down, but does not
run when the transmission is in any position other than neutral with the side-stand down.
Check the side-stand switch.
(
:
7-14)
Incorrect
Correct
Others
Engine does not turn though
the starter motor runs.
• Faulty starter relay
• Poor contact of the
starter relay
• Faulty side-stand switch
• Open circuit in wire harness
• Faulty starter torque limiter
(
:
3-64)
• Poor contact of connector
1
O-ring
2
Housing
3
Armature
4
Washer
5
O-ring
6
Starter motor case
7
Starter brush holder assembly
8
O-ring
