SERVICING INFORMATION 8-25

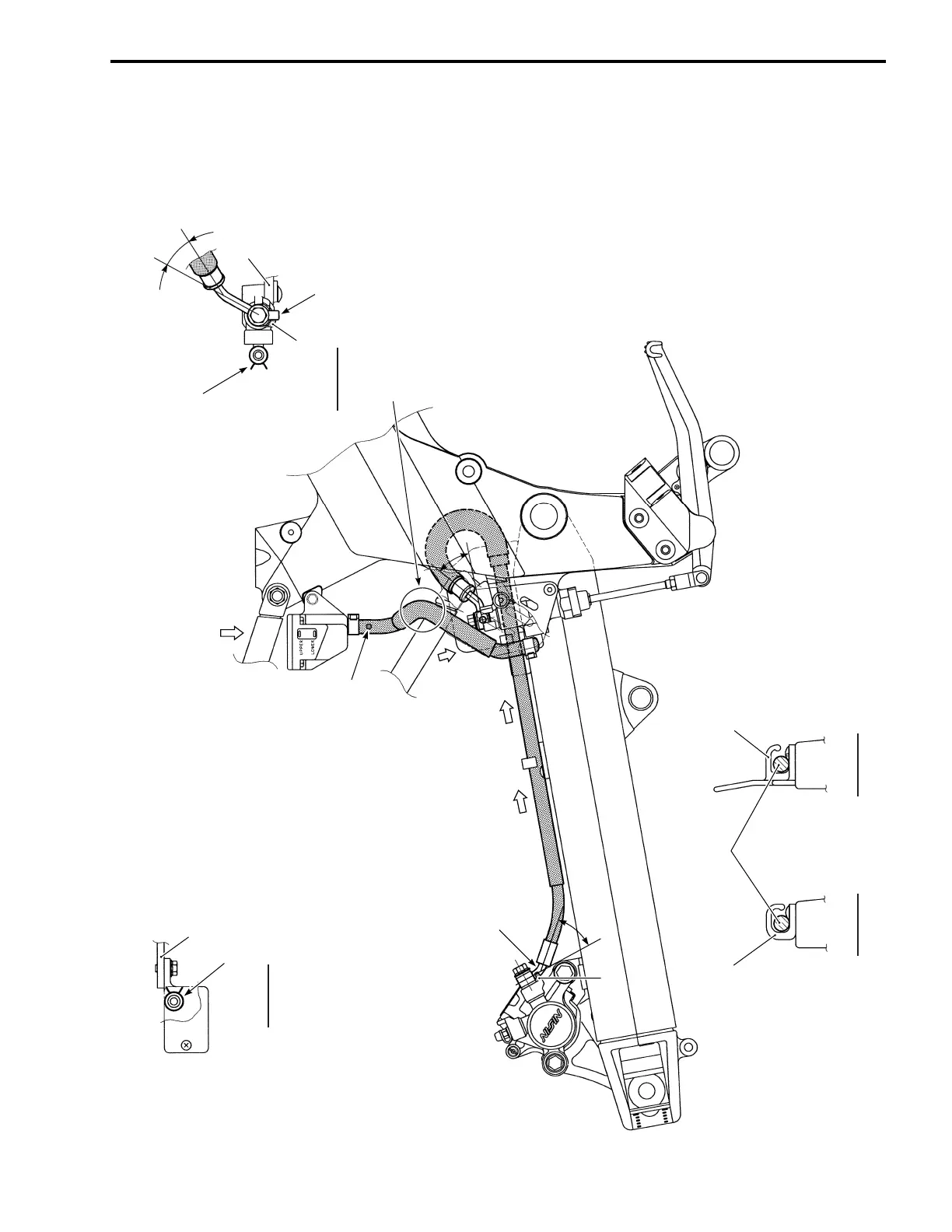

REAR BRAKE HOSE ROUTING
VIEW A
A
B
C
D
VIEW D VIEW C
VIEW B
Frame
Clamp ends should face forward.
Brake hose guide
Brake hose
Brake hose guide
42Ëš
Stopper
After the brake hose union
has contacted the stopper,
tighten the union bolt.
White paint
faces outside.
Pass through the brake
hose outside the seat rail.
35Ëš35Ëš
Clamp ends should
face backward.
Stopper
35Ëš
Frame
After the brake hose union
has contacted the stopper,
tighten the union bolt.
