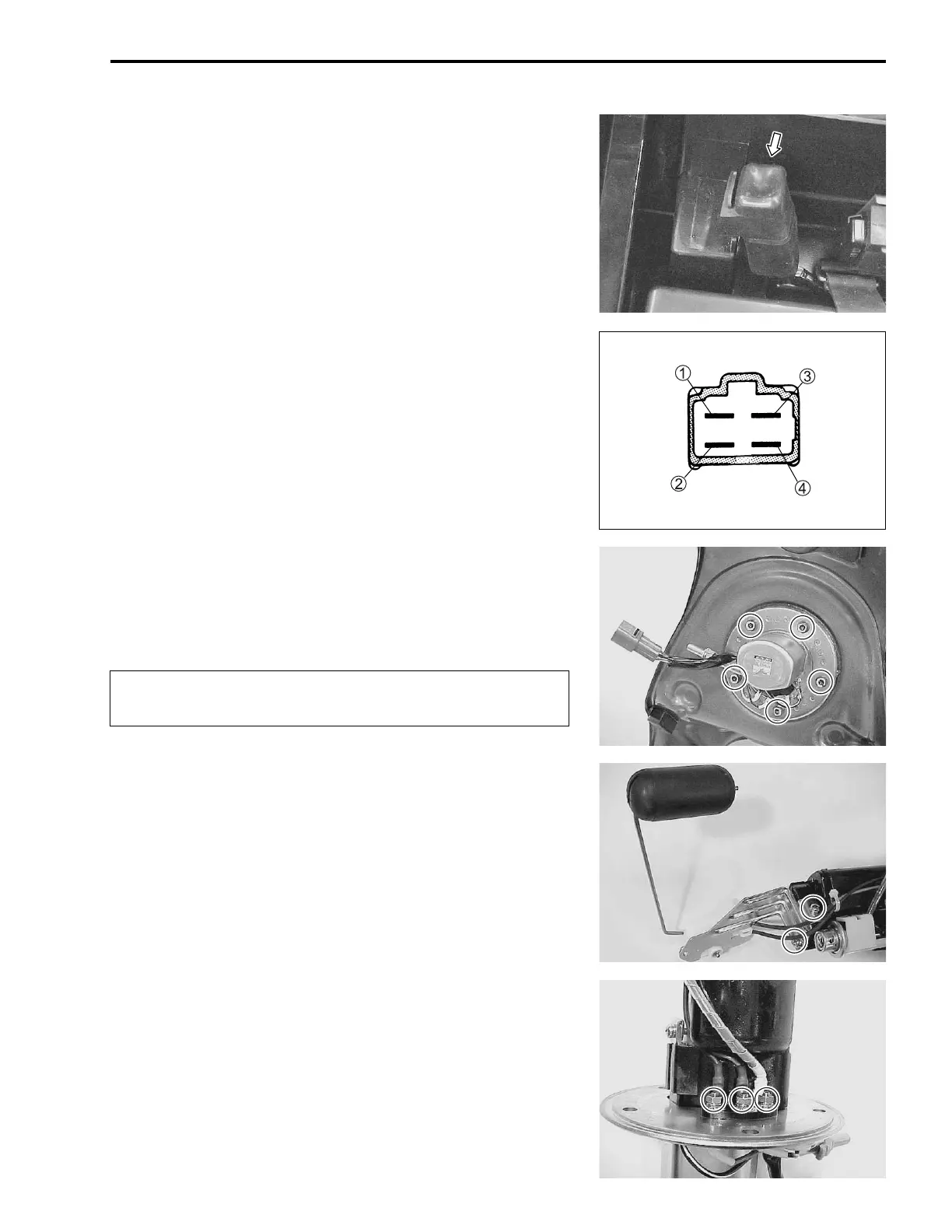

FI SYSTEM 4-55
FUEL PUMP RELAY INSPECTION
Fuel pump relay is located behind the ECM.
• Remove the seat.
• Remove the fuel pump relay.
First, check the insulation between
1 and
2 terminals with
pocket tester. Then apply 12 volts to
3 and
4 terminals,
+ to
3 and
- to
4, and check the continuity between
1 and
2.
If there is no continuity, replace it with a new one.
FUEL PUMP AND FUEL FILTER REMOVAL
• Remove the fuel tank. (#4-52)
• Remove the fuel pump assembly by removing its mounting
bolts diagonally.
$
• Remove the fuel level gauge.
• Remove the nuts.
Gasoline is highly flammable and explosive.
Keep heat, spark and flame away.
