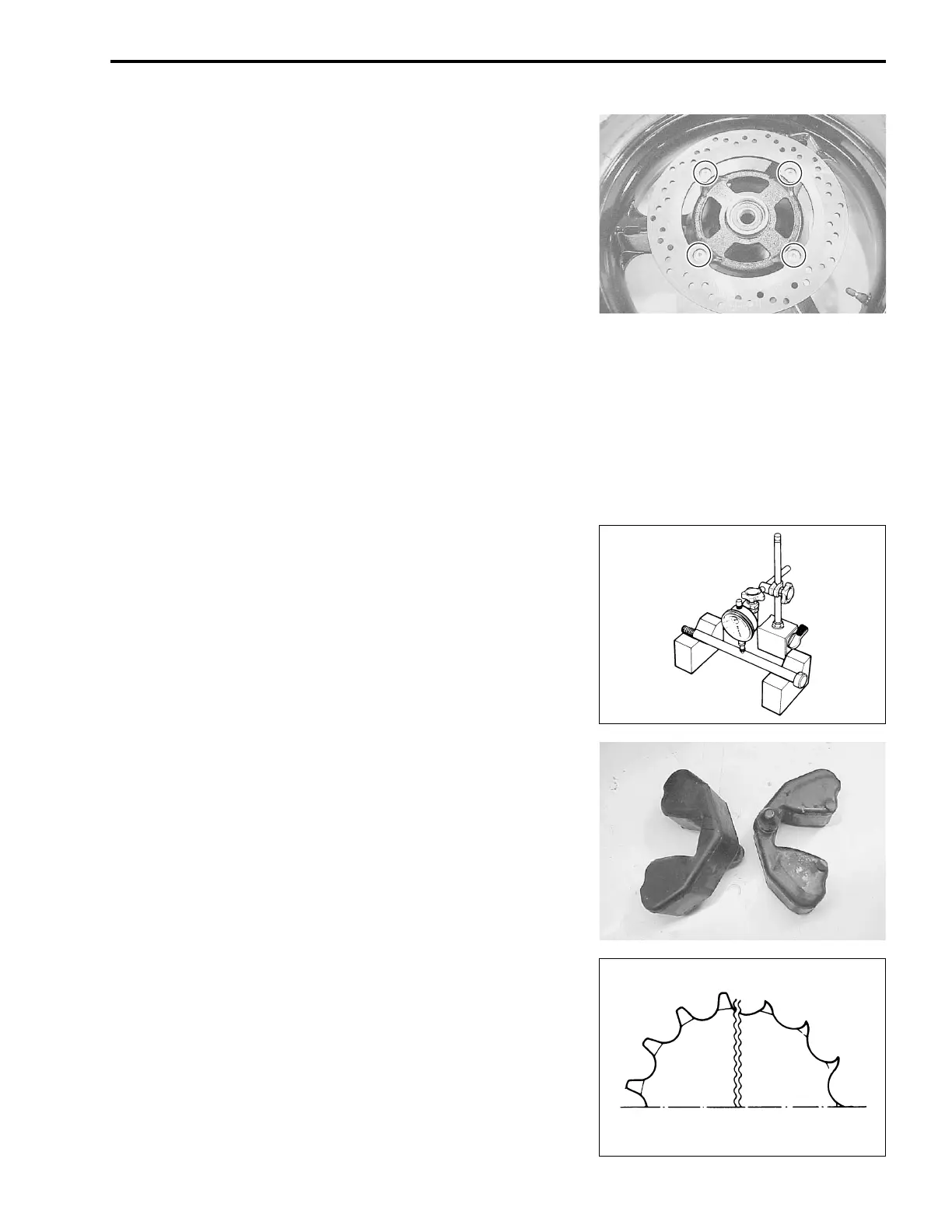

CHASSIS 6-35
• Remove the brake disc.
INSPECTION AND DISASSEMBLY
TIRE: (!6-84)
WHEEL: (!6-10 and 6-84)
REAR AXLE
Using a dial gauge, check the rear axle for runout.
If the runout exceeds the limit, replace the rear axle.
$ Axle shaft runout: Service Limit: 0.25 mm (0.010 in)
# 09900-20607: Dial gauge (1/100 mm)
09900-20701: Magnetic stand
09900-21304: V-block set (100 mm)
WHEEL DAMPER
Inspect the dampers for wear and damage.
Replace the damper if there is anything unusual.
SPROCKET
Inspect the rear sprocket teeth for wear. If they are worn as
shown, replace the engine sprocket, rear sprocket and drive
chain as a set.
Normal wear Excessive wear
