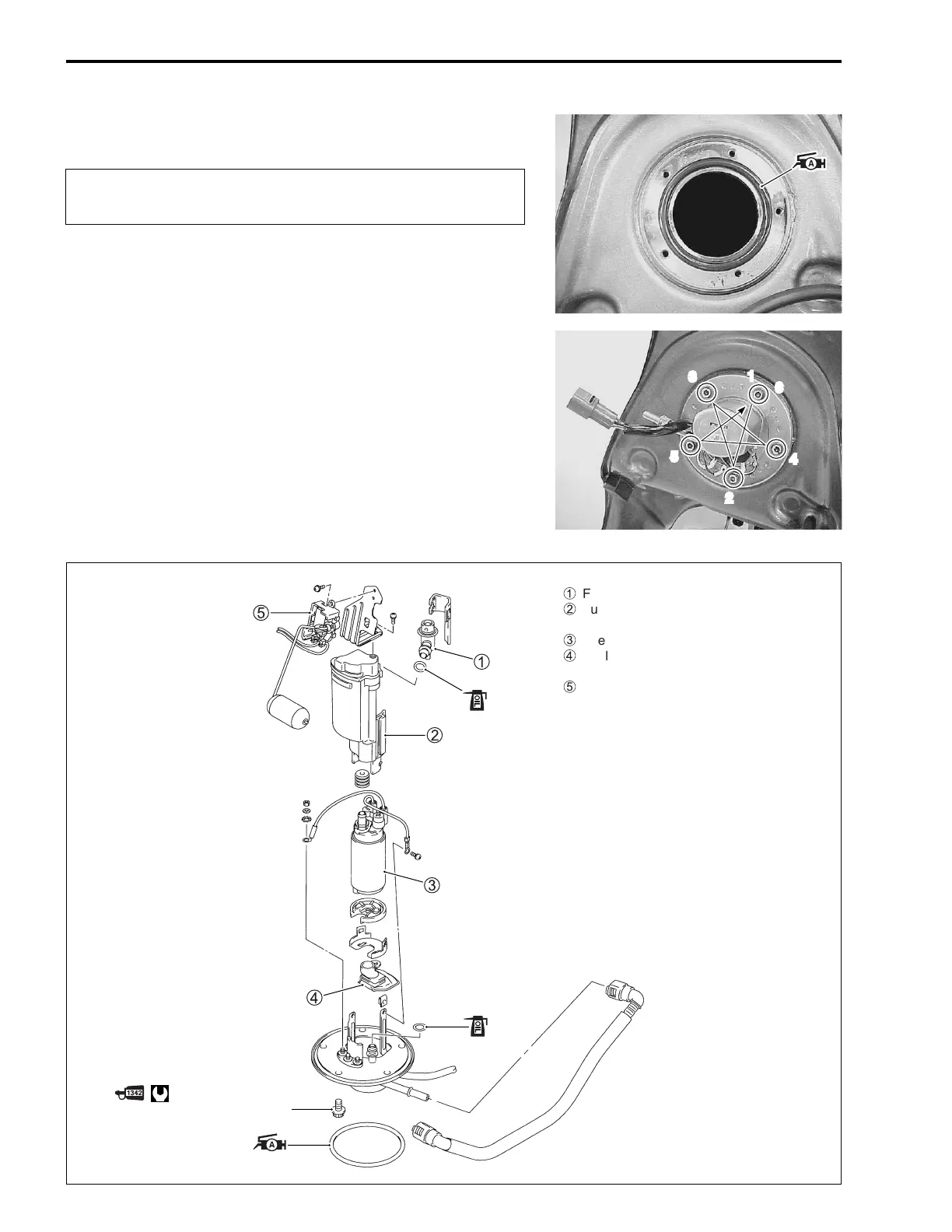

4-58 FI SYSTEM
• Install the new O-ring and apply grease to it.
$
& 99000-25030: SUZUKI SUPER GREASE “A” (USA)
99000-25010: SUZUKI SUPER GREASE “A” (Others)
• When installing the fuel pump assembly, first tighten all the
fuel pump assembly mounting bolts lightly in the ascending
order of numbers, and then tighten them to the specified
torque in the above tightening order
.
' Fuel pump mounting bolt: 10 N·m (1.0 kgf-m, 7.3 lb-ft)
NOTE:
Apply a small quantity of the THREAD LOCK “1342” to the
thread portion of the fuel pump mounting bolt.
(
((
( 99000-32050: THREAD LOCK “1342”
The O-ring must be replaced with a new one to prevent
fuel leakage.
1
2
3
4
5
6
10 N·m
(1.0 kgf-m, 7.3 lb-ft)
1
Fuel pressure regulator
2
Fuel pump case/Fuel filter cartridge
(For high pressure)
3
Fuel pump
4
Fuel mesh filter
(For low pressure)
5
Fuel level gauge
