6-50 CHASSIS

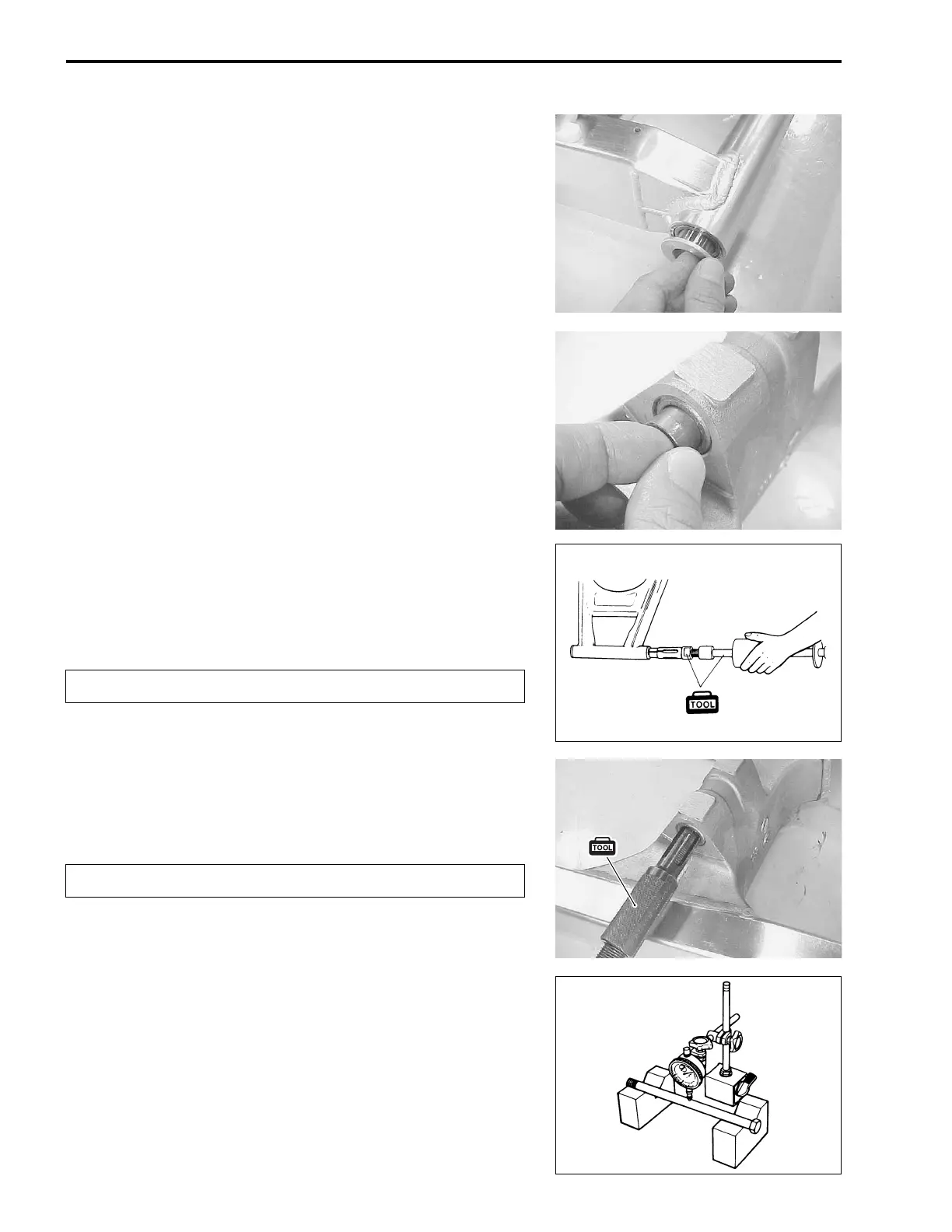

SWINGARM BEARING
Insert the spacer into bearing and check the play when moving
the spacer up and down.
If excessive play is noted, replace the bearing with a new one.
• Remove the swingarm pivot bearing and spacer with the spe-
cial tools.
# 09923-74511: Bearing remover
09930-30102: Sliding shaft
"
• Remove the cushion rod bearings by using the special tool.
# 09913-73210: Bearing remover
09930-30102: Sliding shaft
"
SWINGARM PIVOT SHAFT
Using a dial gauge, check the pivot shaft runout and replace it if
the runout exceeds the limit.
# 09900-20607: Dial gauge (1/100 mm, 10 mm)
09900-20701: Magnetic stand
09900-21304: V-block (100 mm)
$ Swingarm pivot shaft runout:
Service limit: 0.3 mm (0.01 in)
Do not reuse the removed bearings.
Do not reuse the removed bearings.
