5-20 CHASSIS
INSPECTION
FORK SPRING

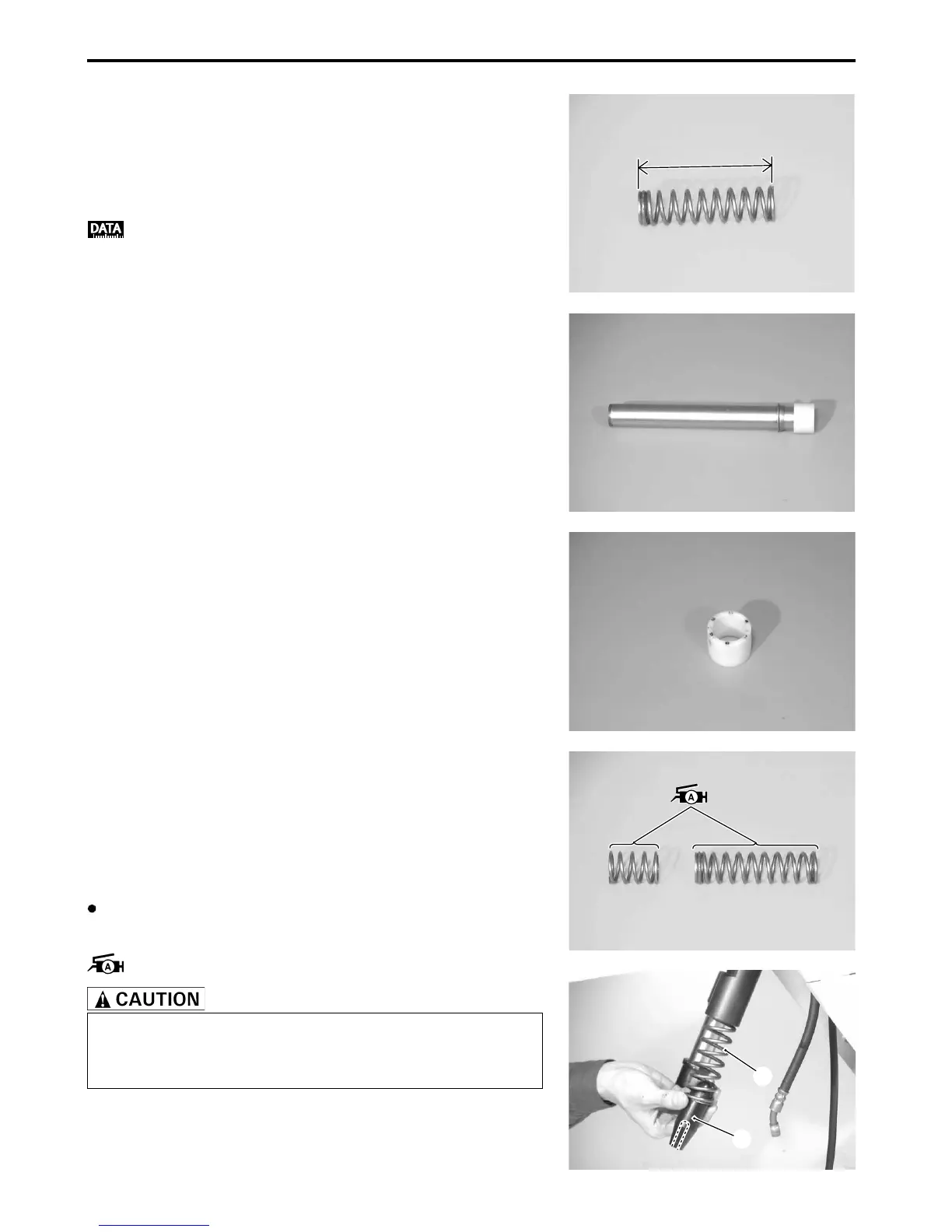

Measure the fork spring free length. If the fork spring free length
is shorter than the service limit, replace the fork spring with a
new one.
Front fork spring free length
Service Limit: 122 mm
INNER TUBE
Inspect the inner tube sliding surface for any scuffing or dam-
age. If any damages are found, replace the inner tube with a
new one.
BUSHING
Inspect the bushing for wear or damage. If any damages are
found, replace the bushing with a new one.
REASSEMBLY AND REMOUNTING
Reassemble and remount the front suspension in the reverse
order of removal and disassembly. Pay attention to the following
points:
DAMPER AND SPRING
Apply SUZUKI SUPER GREASE “A” (15 g) to the damper
and springs.
99000-25010: SUZUKI SUPER GREASE “A”
When installing the upper spring 1 and damper 2, face
the smaller diameter end of the upper spring and the
hollow end of the damper towards the wheel.
