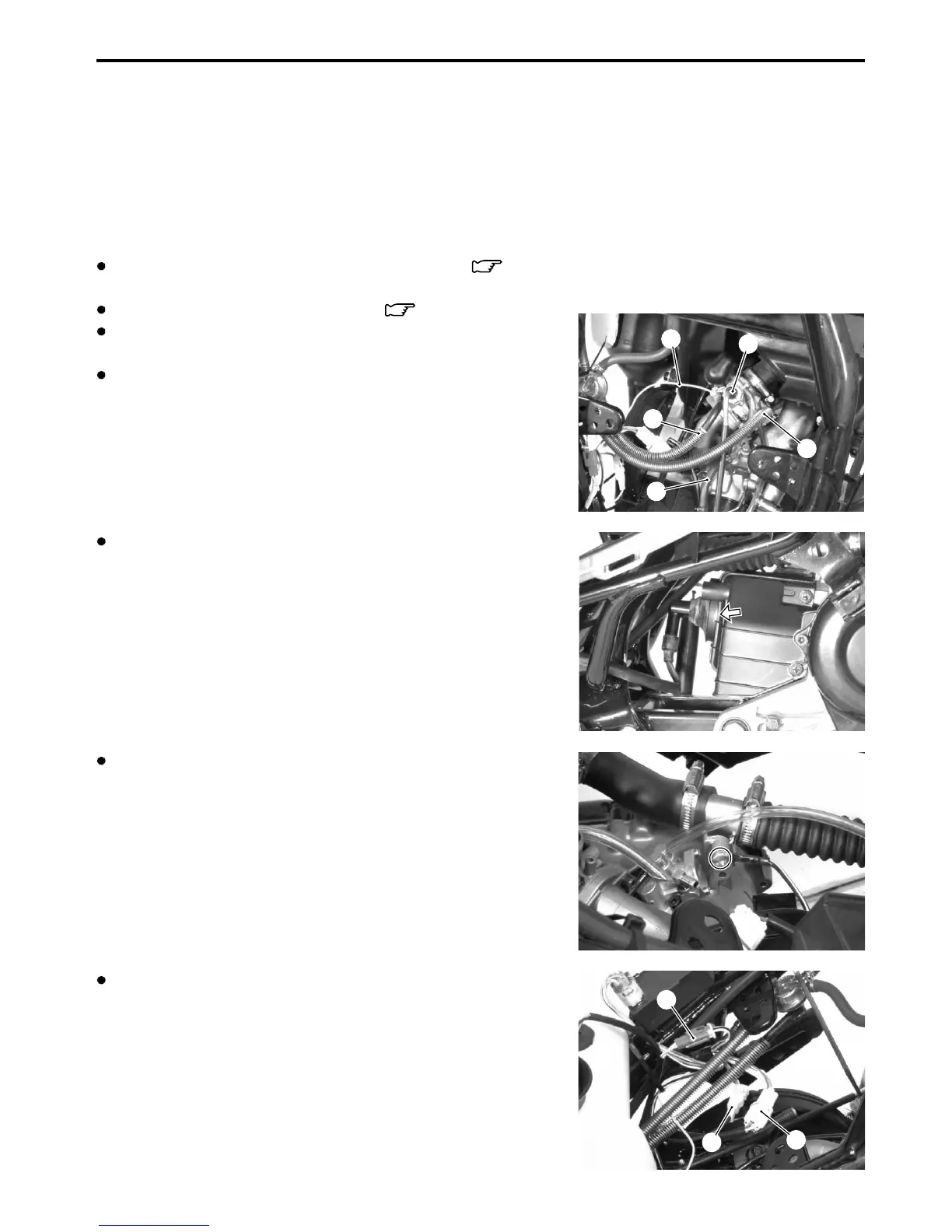

ENGINE 3-3
ENGINE REMOVAL AND
REMOUNTING
ENGINE REMOVAL
Before taking the engine out of the frame, wash the engine with
a steam cleaner. Engine removal is sequentially explained in the
following steps.
Remove the side leg shields and frame covers. ( 5-3 to
5-5)
Disconnect the - battery lead wire. ( 6-30)
Disconnect the fuel hose 1, vacuum hose 2, oil hose 3,
and carburetor heater lead wire 4.
Remove the carburetor top cap 5 with the throttle cable and
throttle valve.
Disconnect the spark plug cap.
Disconnect the engine ground wire.
Disconnect the thermoelement coupler 6, starter motor cou-
pler 7, and generator coupler 8.
