3-32 ENGINE
ENGINE REASSEMBLY
Reassemble the engine in the reverse order of disassembly. The
following steps require special attention or precautionary mea-
sures should be taken.
NOTE:
Apply engine oil to each running and sliding part before reas-
sembling.
CRANKSHAFT

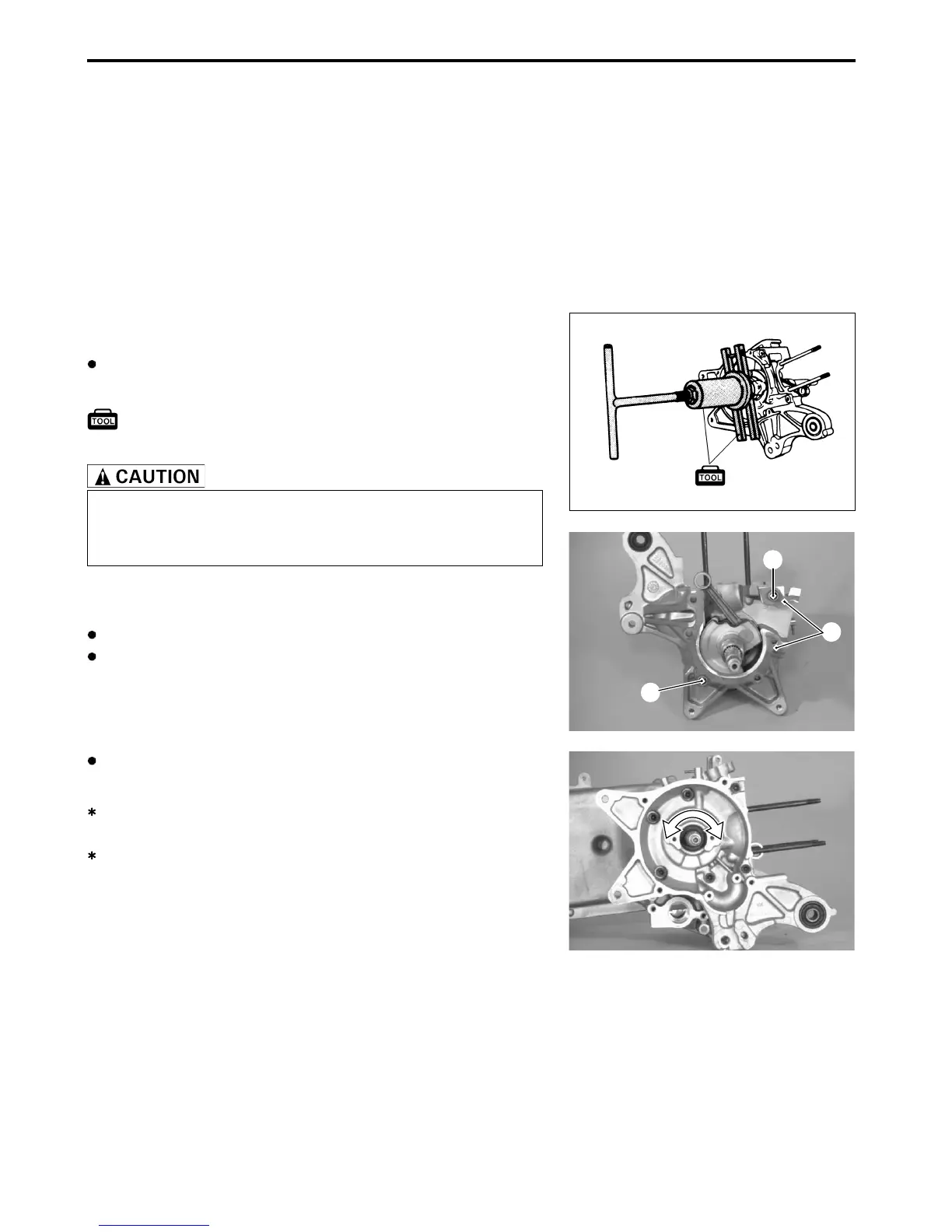

Mount the crankshaft into the right crankcase by pulling its
right end into the crankcase using the special tools.
09910-32812: Crankshaft installer
09910-20116: Conrod holder
Never fit the crankshaft into the crankcase by striking
it with a plastic hammer. Always use the special tool,
otherwise the crankshaft may be misaligned.
CRANKCASE
Install the two dowel pins 1 and new gaskets 2.
Install the left crankcase onto the right crankcase.
Tighten the crankcase bolts.
NOTE:
After the crankcase bolts have been tightened, make sure
that the crankshaft rotates smoothly.
If the crankshaft does not rotate smoothly, try to free it by
tapping it with a plastic hammer.
1
1
2
