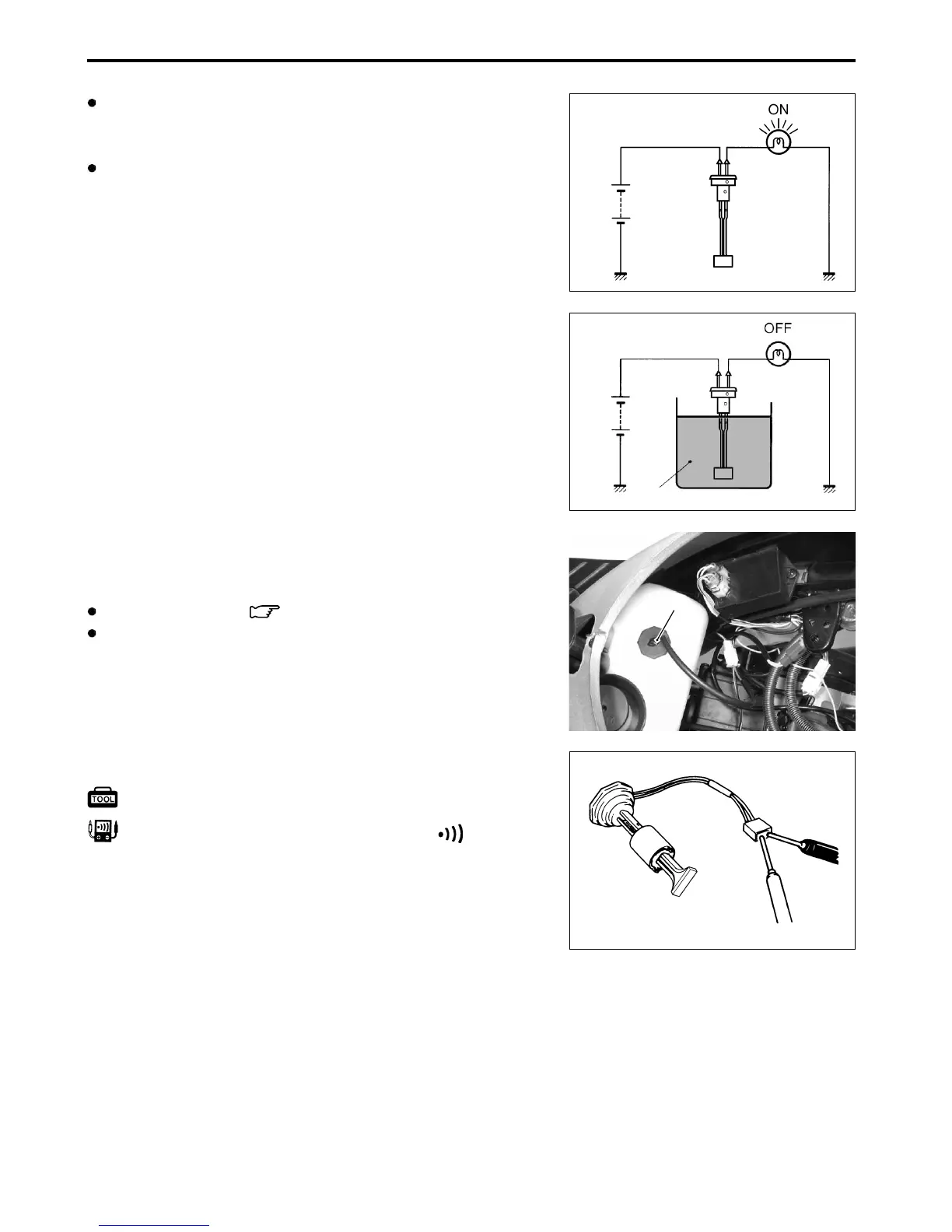

6-20 ELECTRICAL SYSTEM
Connect a 12 V battery to the fuel level indicator switch and
ground it through a 2 W bulb. The bulb should light up after
several seconds if the switch is in good condition.
When the switch is immersed in water under the above condi-
tion, the bulb should go out. If the bulb remains lit, replace the
fuel level indicator switch.
OIL LEVEL INDICATOR SWITCH
INSPECTION
Remove the trunk. ( 5-4)
Disconnect the oil level indicator switch coupler and remove
the oil level indicator switch 1.
Measure the continuity between the lead wires of the oil level
indicator switch.
If there is no continuity between the lead wires when the oil level
indicator switch is in the low-level position, file the contact sur-
face or replace the oil level indicator switch with a new one.
09900-25008: Multi circuit tester set
Tester knob indication: Continuity test ( )
12 V Battery
Test bulb
12 V 2 W
12 V Battery
Test bulb
12 V 2 W
Water
1
