CHASSIS 5-11

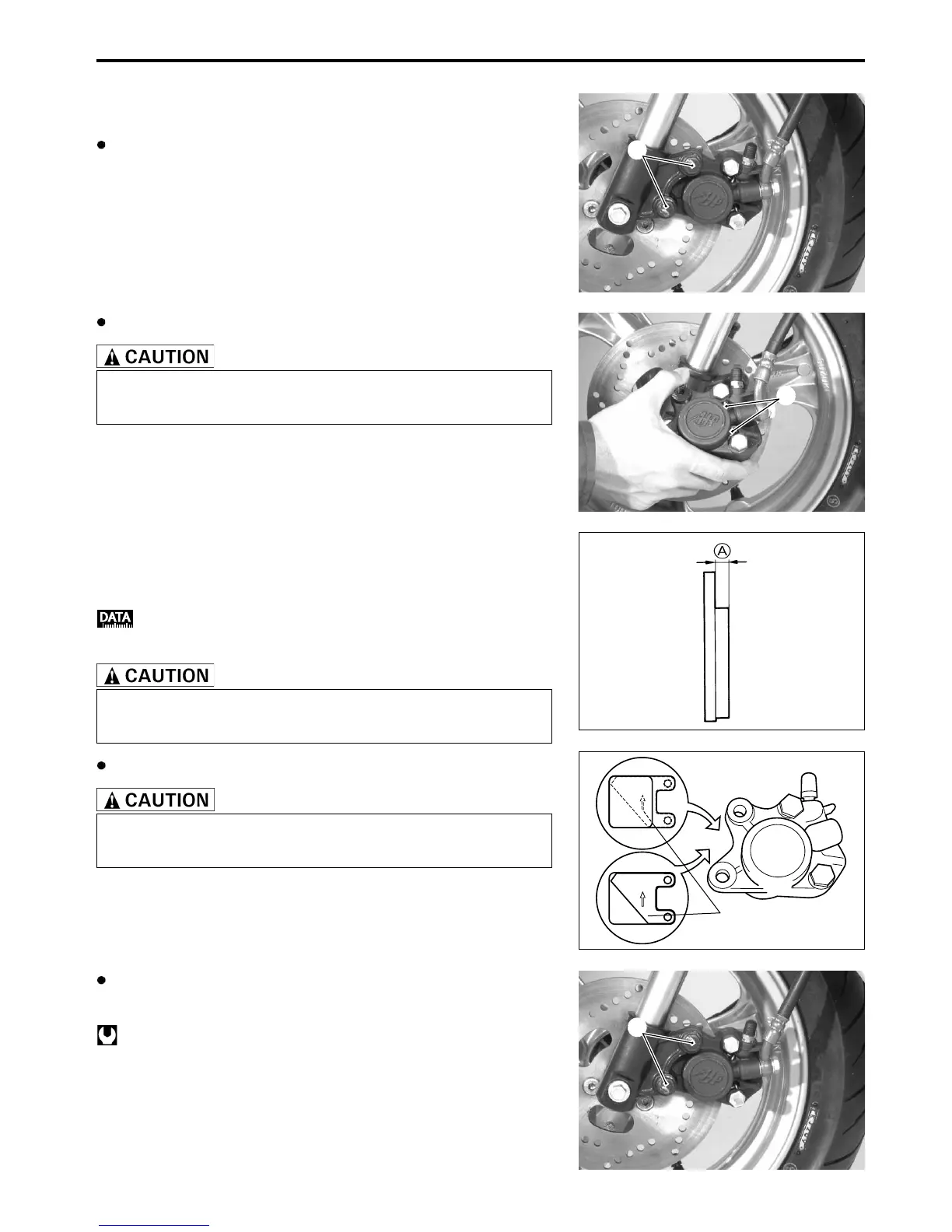

BRAKE PADS REPLACEMENT
Remove the brake caliper mounting bolts 1.
Remove the brake pad mounting pins 2 and brake pads.
Do not operate the brake lever during or after brake
pad removal.
Measure the thickness A of the brake pads. If the brake pad
thickness is below the service limit, replace the brake pads with
new ones.
Brake pad thickness A
Service Limit: 0.7 mm
Replace the brake pads as a set, otherwise braking per-
formance will be adversely affected.
Install the new brake pads and shims.
Be sure to properly install the shims 3 as shown in
the illustration.
Tighten the brake caliper mounting bolts 4 to the specified
torque.
Brake caliper mounting bolt: 26 N·m (2.6 kgf-m)
NOTE:
After replacing the brake pads, pump the brake lever a few times
to check for proper brake operation, and then check the brake
fluid level.
