5-32 CHASSIS
REASSEMBLY AND REMOUNTING

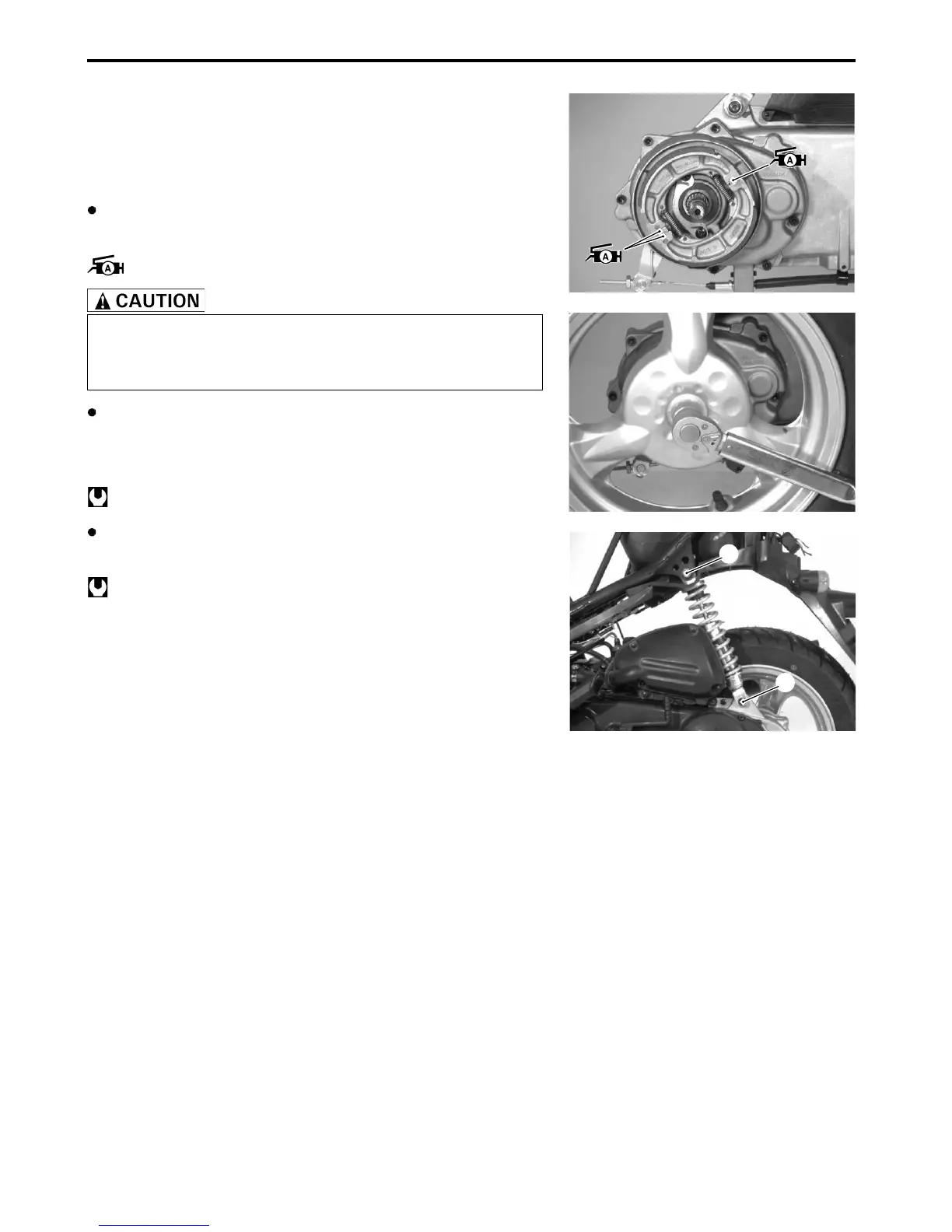

Reassemble and remount the rear wheel, rear brake, and rear
shock absorber in the reverse order of removal and disassem-
bly. Pay attention to the following points:
Apply SUZUKI SUPER GREASE “A” to the brake cam and
pin, and then install the brake shoes.
99000-25010: SUZUKI SUPER GREASE “A”
Be careful not to apply too much grease to the brake
cam and pin. If grease gets on the lining, brake slip-
page will result.
Tighten the rear axle nut to the specified torque.
NOTE:
Apply final gear oil (10W-40) to the axle nut before tightening it.
Rear axle nut: 120 N·m (12.0 kgf-m)
Tighten the rear shock absorber upper mounting bolt 1 and
lower mounting nut 2 to the specified torque.
Rear shock absorber upper mounting bolt:
29 N·m (2.9 kgf-m)
Rear shock absorber lower mounting nut:
35 N·m (3.5 kgf-m)
1
2
