7-16 SERVICING INFORMATION

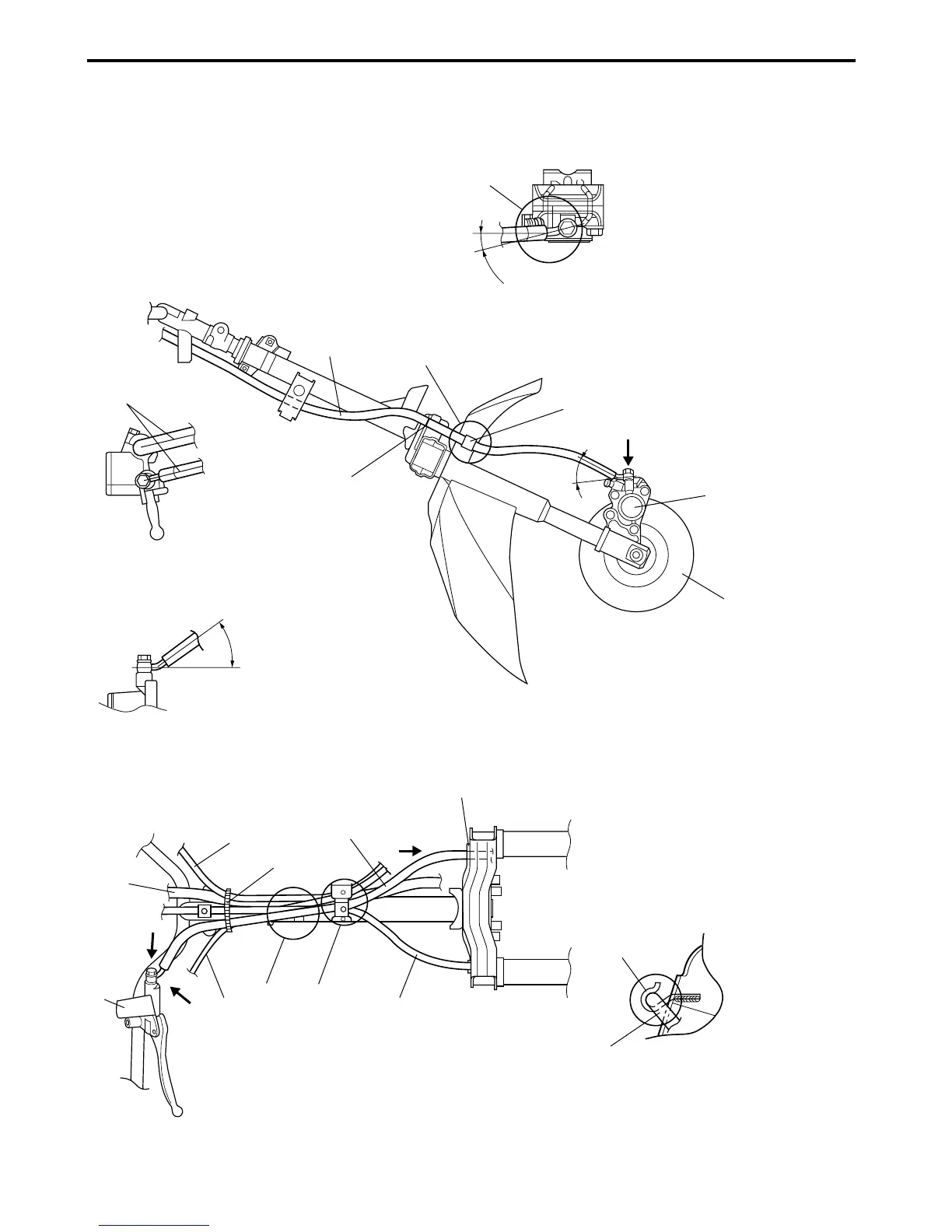

FRONT BRAKE HOSE ROUTING
1 Pass the brake hose in front of the wire harness and each cable.
2 Pass the brake hose through the hose guide.
3 Clamp the sleeve firmly.
4 Tighten the brake hose union bolt so that the hose is parallel to the handlebar.
5 Tighten the brake hose union bolt so that the hose is contacting the stopper.
VIEW A
VIEW B
VIEW C
VIEW D
A
B
C
D
Master cylinder
Wire harness
Rear brake cable
Front brake hose
Clamp
Hose guide
Speedometer cable
Throttle cable
Front brake hose
Clamp
Front brake caliper
Front brake disc
3
5
˚
1
4
˚
5
3
4
3
5
˚
1
2
Front brake hose
Hose guide
Hose guide
