ENGINE 3-31
ENGINE MOUNTING BUSHINGS

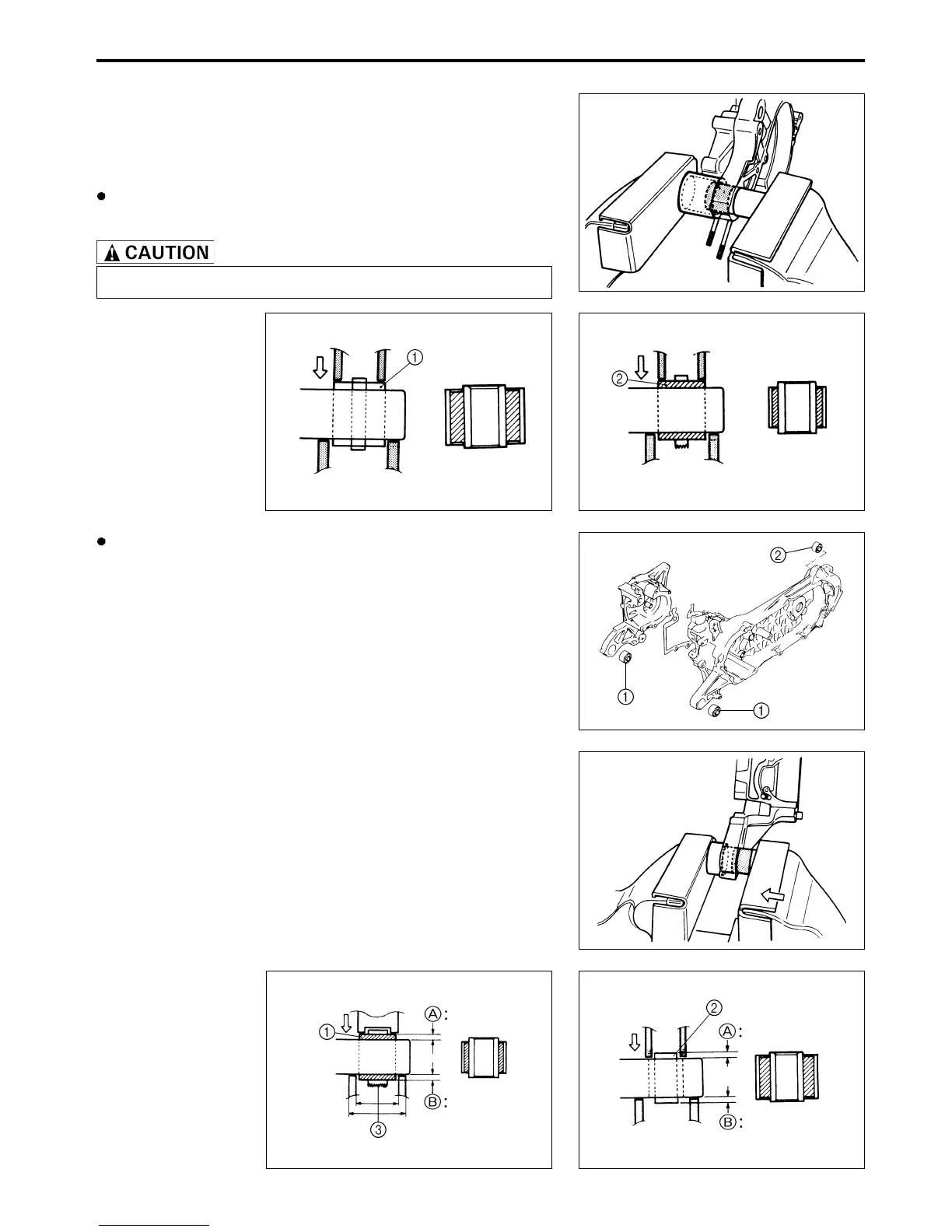

Inspect each engine mounting bushings 1 and 2 for damage.
If any damage is found, replace the engine mounting bushing
with a new one.
Press out the engine mounting bushings in a vise using two
steel tubes of the appropriate size, as shown.
Replace the removed bushing with a new one.
Install the engine mounting bushings using two steel tubes
of the appropriate size and a vise. Press the mounting bush-
ings 1 and 2 into the crankcase holes, as shown.
NOTE:
The knurled end
3
should face in. Projections
A
and
B
should
be aligned evenly.
Crankcase
Front side
Crankcase
Rear side
Crankcase
0.5 mm
0.5 mm
Crankcase
0.5 mm
0.5 mm
To Next Page
