3-36 ENGINE

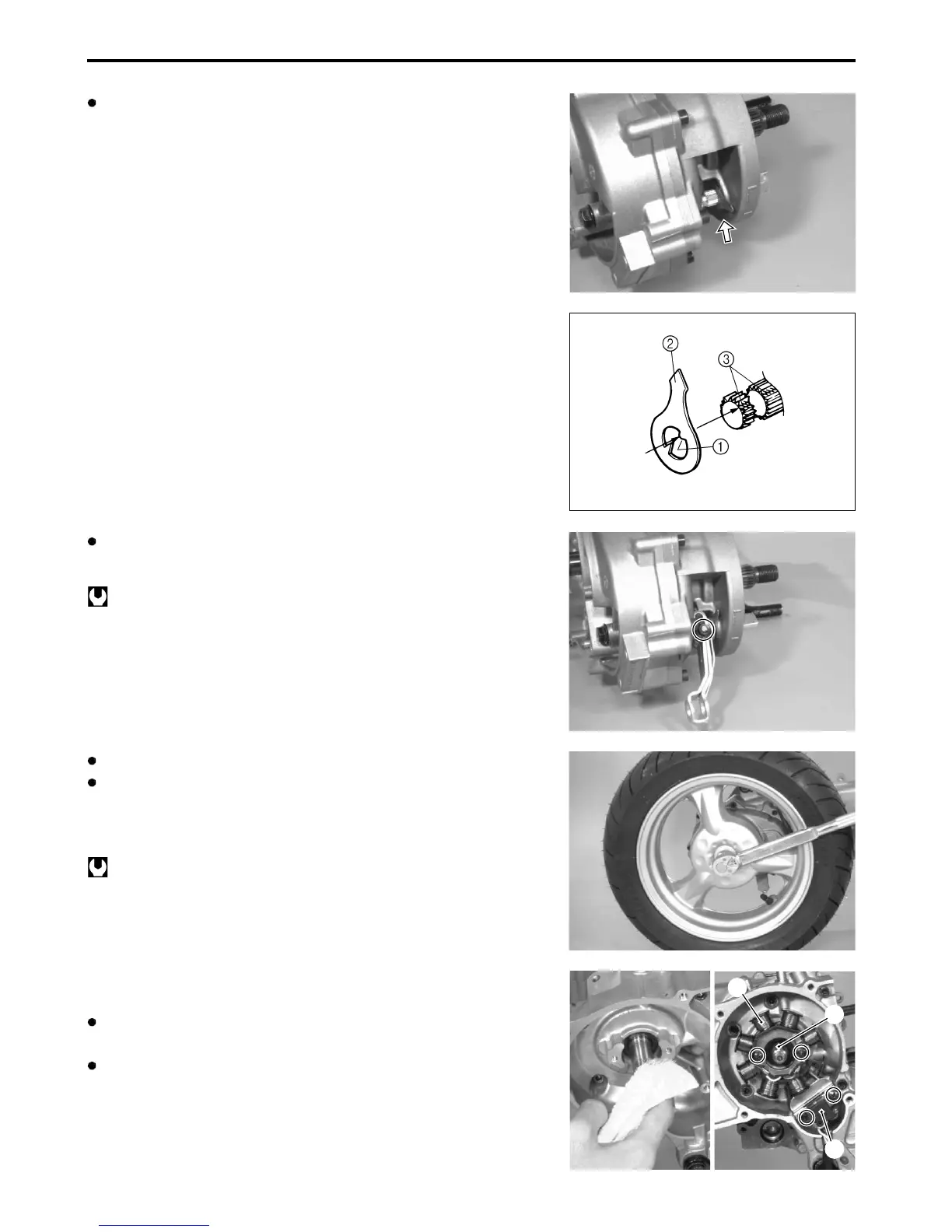

Align the tang 1 on the brake lining wear indicator plate 2
with the cutaway 3 on the brake cam. Then, slide the brake
lining wear indicator plate onto the brake cam.
Install the return spring and brake cam lever onto the brake
cam and tighten the brake cam lever nut to the specified torque.
Brake cam lever nut: 10 N·m (1.0 kgf-m)
Install the brake shoes and rear wheel.
Tighten the rear axle nut to the specified torque.
NOTE:
Apply final gear oil (10W-40) to the axle nut before tightening it.
Rear axle nut: 120 N·m (12.0 kgf-m)
GENERATOR
Remove any grease from the tapered portion of the crank-
shaft and also from the generator rotor.
Install the key 1, stator coil 2, and pickup coil 3.
2
1
3
