ENGINE 3-5

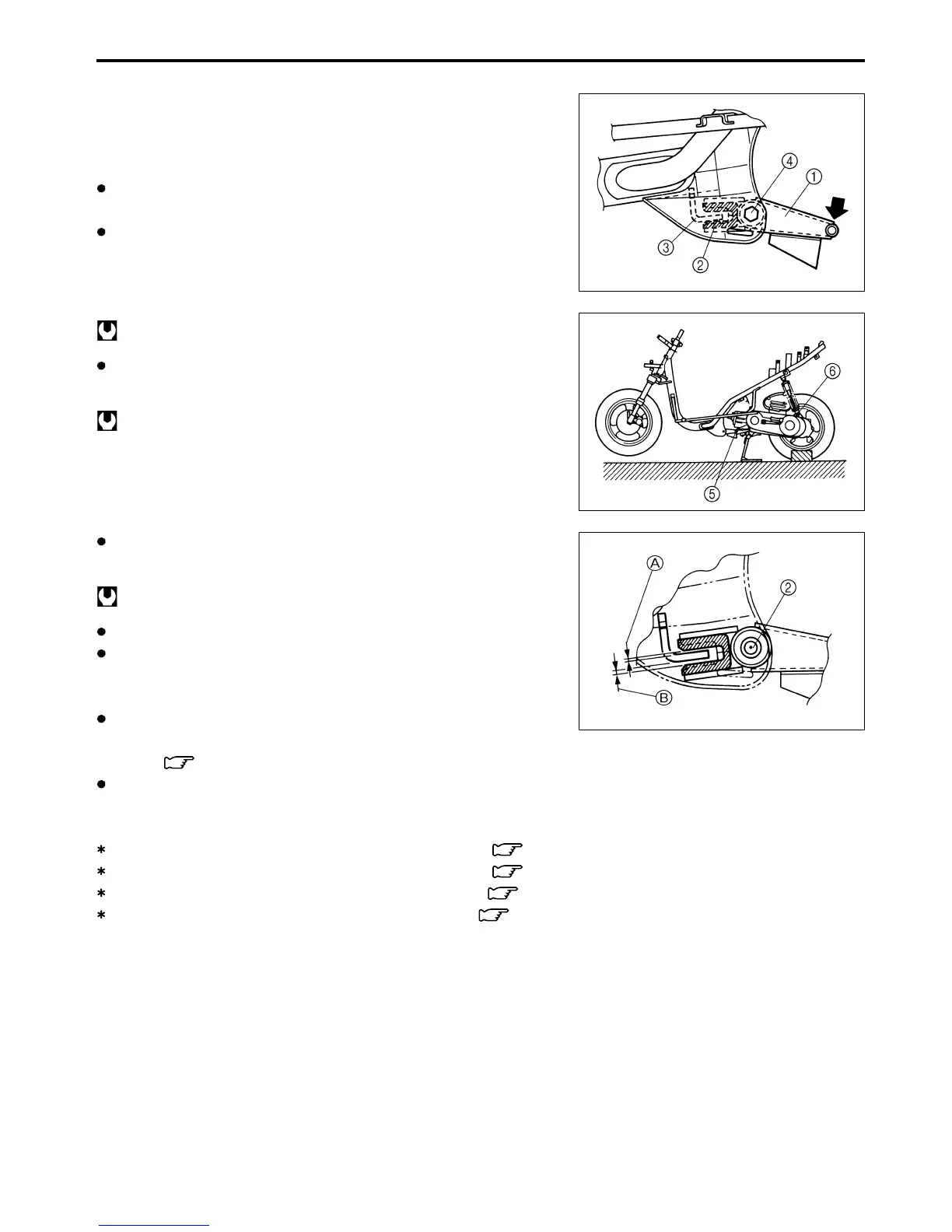

ENGINE REMOUNTING
Remount the engine in the reverse order of removal. Pay atten-
tion to the following points:
Install the crankcase bracket 1 to the frame and insert the
crankcase bracket mounting shaft.
Push down on the rear part of the crankcase bracket and have
the damper 2 touch the stopper 3. While holding the damper,
tighten the engine mounting bracket nut 4 to the specified
torque.
Engine mounting bracket nut: 65 N·m (6.5 kgf-m)
Install the engine and tighten the engine mounting nut 5 to
the specified torque.
Engine mounting nut: 60 N·m (6.0 kgf-m)
NOTE:
When tightening the engine mounting nut, make sure that the
front wheel is elevated.
Tighten the rear shock absorber lower mounting nut 6 to the
specified torque.
Rear shock absorber nut: 35 N·m (3.5 kgf-m)
Place 65 kg on the seat, after installing the engine.
Check that clearances A and B are equal. If clearances A
and B are not equal, repeat the engine installation proce-
dures.
After installing the engine, properly route the wire harness,
cables, and hoses. Refer to the wire and cable routing sec-
tions. (
7-10 to 7-16)
Refer to the following sections to adjust the respective items
to specification.
THROTTLE CABLE PLAY ....................................... 2-7
ENGINE IDLE SPEED ............................................. 2-7
REAR BRAKE CABLE ADJUSTMENT ................. 2-8
OIL PUMP AIR BLEEDING .................................. 4-13
