6-4 ELECTRICAL SYSTEM

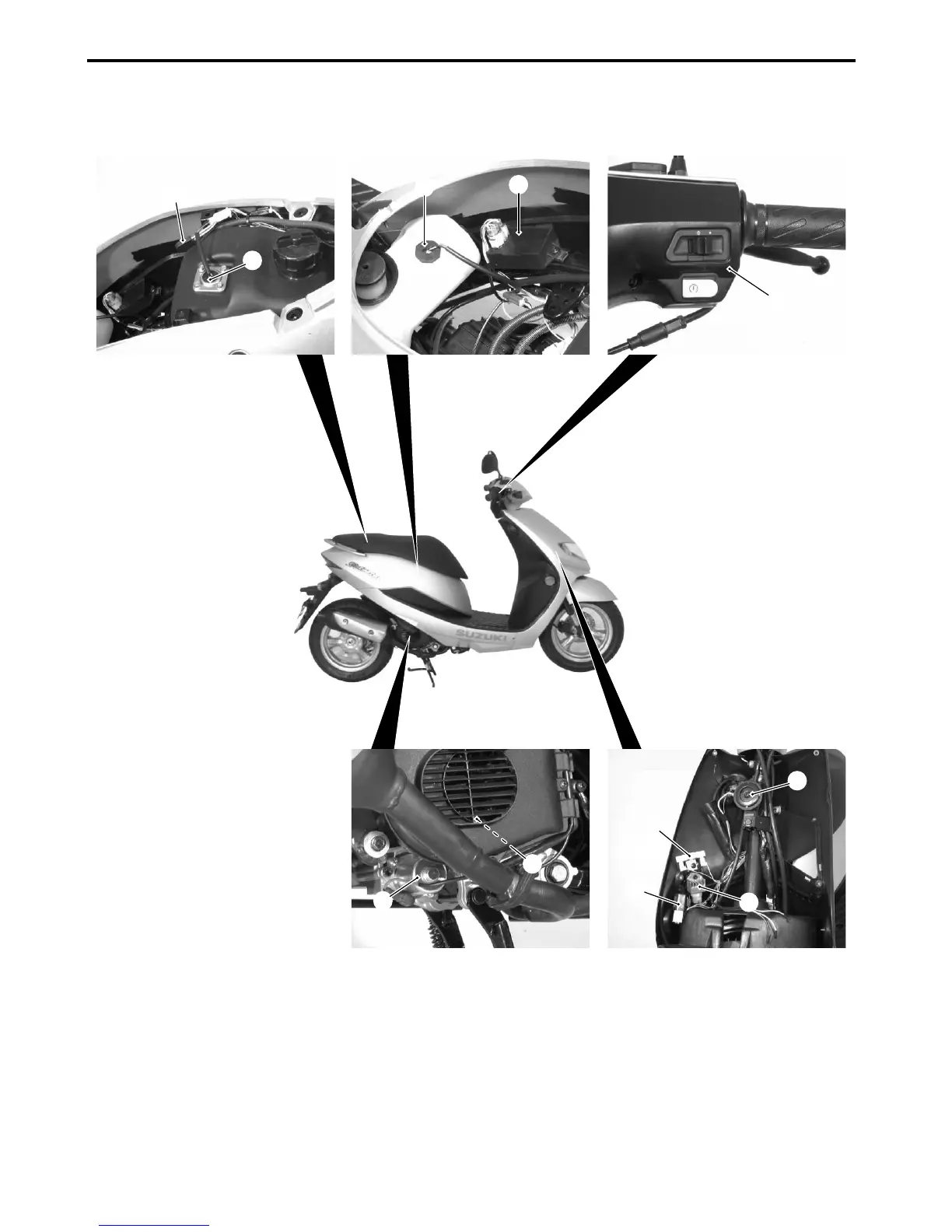

LOCATION OF ELECTRICAL COMPONENTS
1 Fuel level indicator switch
2 Thermoswitch
3 Oil level indicator switch
4 CDI unit
5 Right handlebar switch
6 Horn
7 Turn signal relay
8 Resistor
9 Regulator/rectifier
0 Generator
A Starter motor
2
1
3
4
5
6
9
7
8
0
A
