4-6 FUEL AND LUBRICATION SYSTEM
CARBURETOR

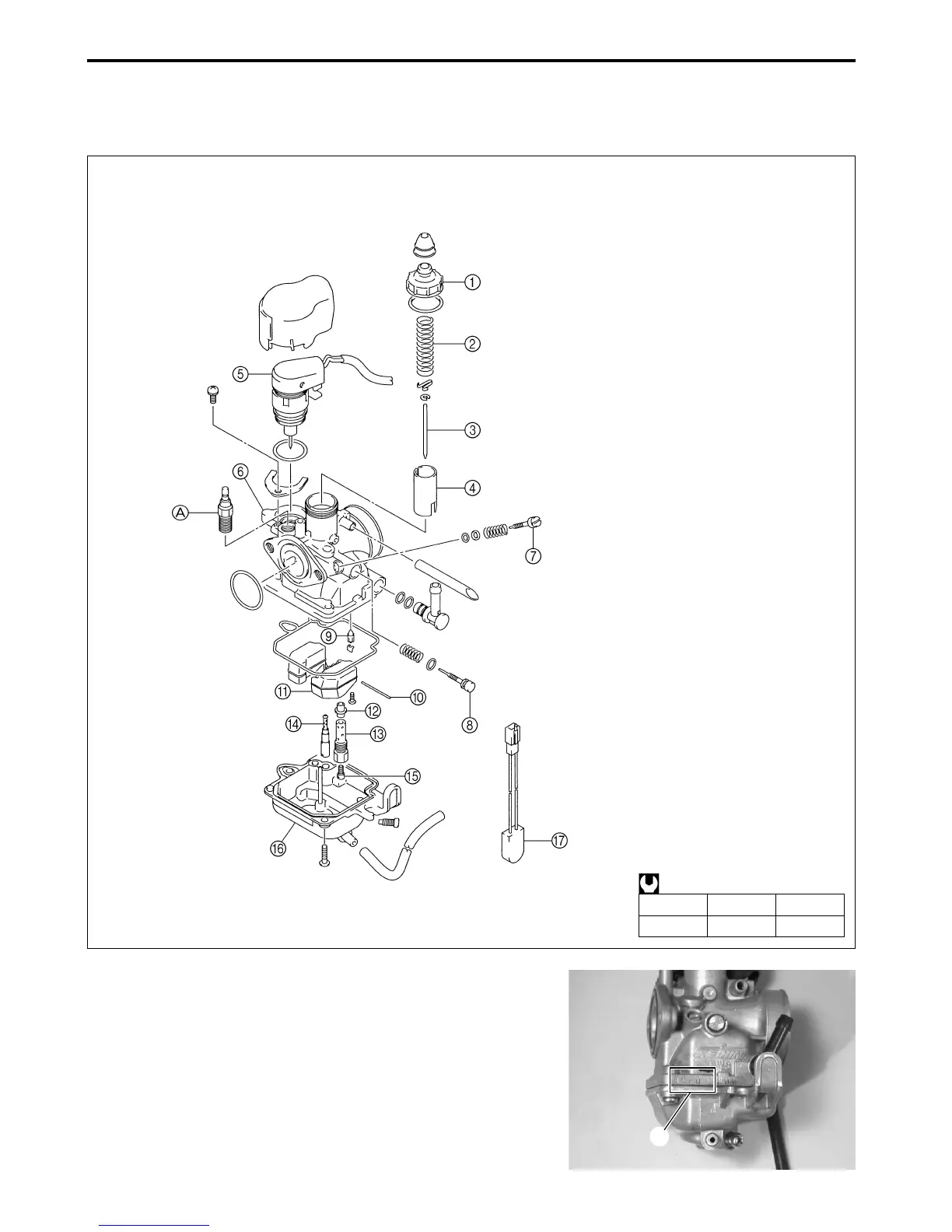

CONSTRUCTION
1 Top cap
2 Throttle valve spring
3 Jet needle
4 Throttle valve
5 Thermoelement
6 Carburetor body
7 Pilot air screw
8 Throttle stop screw
9 Needle valve
0 Float pin
A Float
B Needle jet
C Needle jet holder
D Slow jet
E Main jet
F Float chamber
G Thermoswitch
A Carburetor heater
ITEM N·m kgf-m
A 3 0.3
I. D. NO. LOCATION
The carburetor has an I. D. number A stamped on its body ac-
cording to its specifications.
