4-8 FUEL AND LUBRICATION SYSTEM

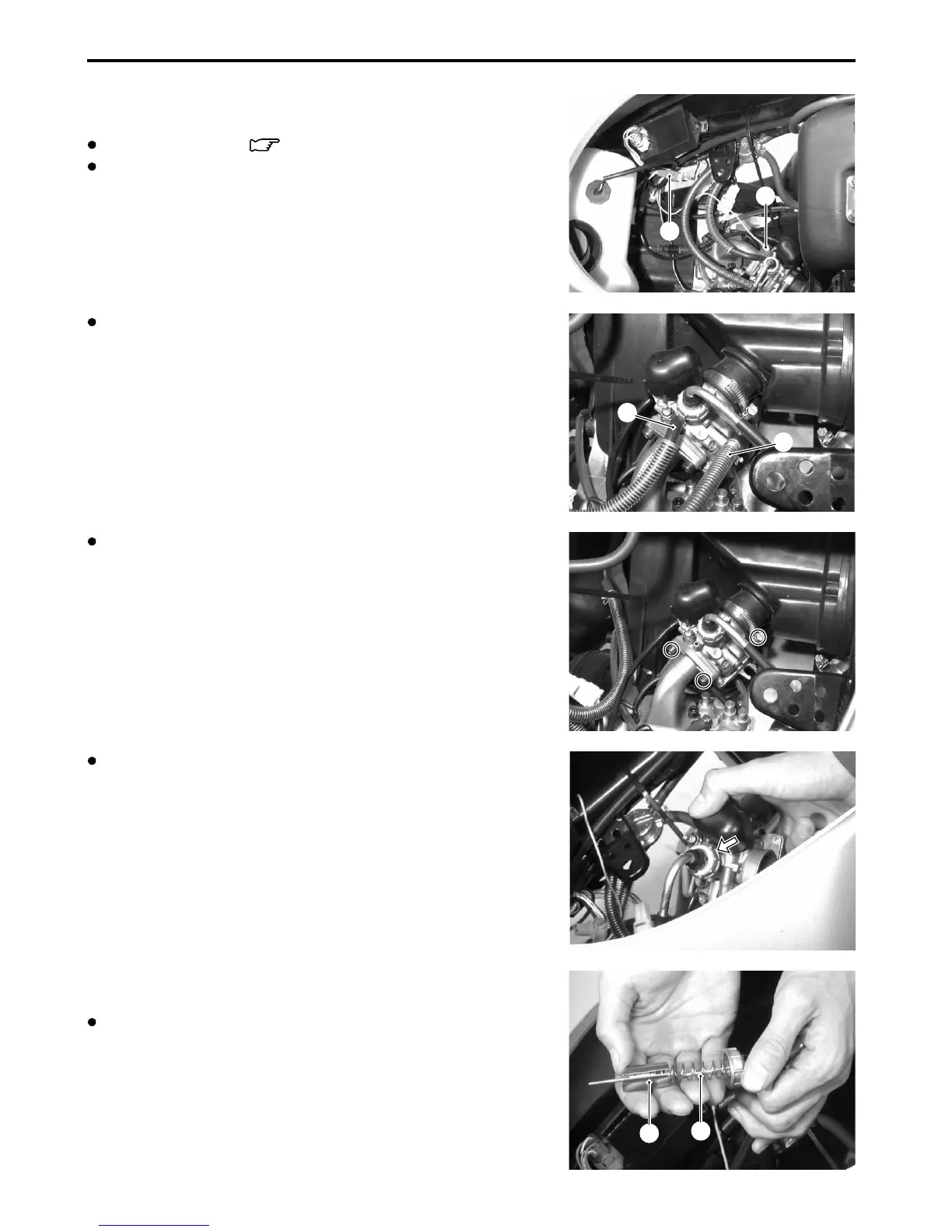

REMOVAL
Remove the trunk. ( 5-4)
Remove the clamps, disconnect the thermoelement coupler 1
and carburetor heater lead wire 2.
Disconnect the vacuum hose 3 and fuel hose 4.
Loosen the carburetor clamp screw and remove the carbure-
tor mounting bolts.
Remove the top cap.
DISASSEMBLY
Remove the throttle cable from the slit in the throttle valve,
and then remove the throttle valve 1 along with the jet needle
and throttle valve spring 2.
2
1
1
2
