3-18 ENGINE

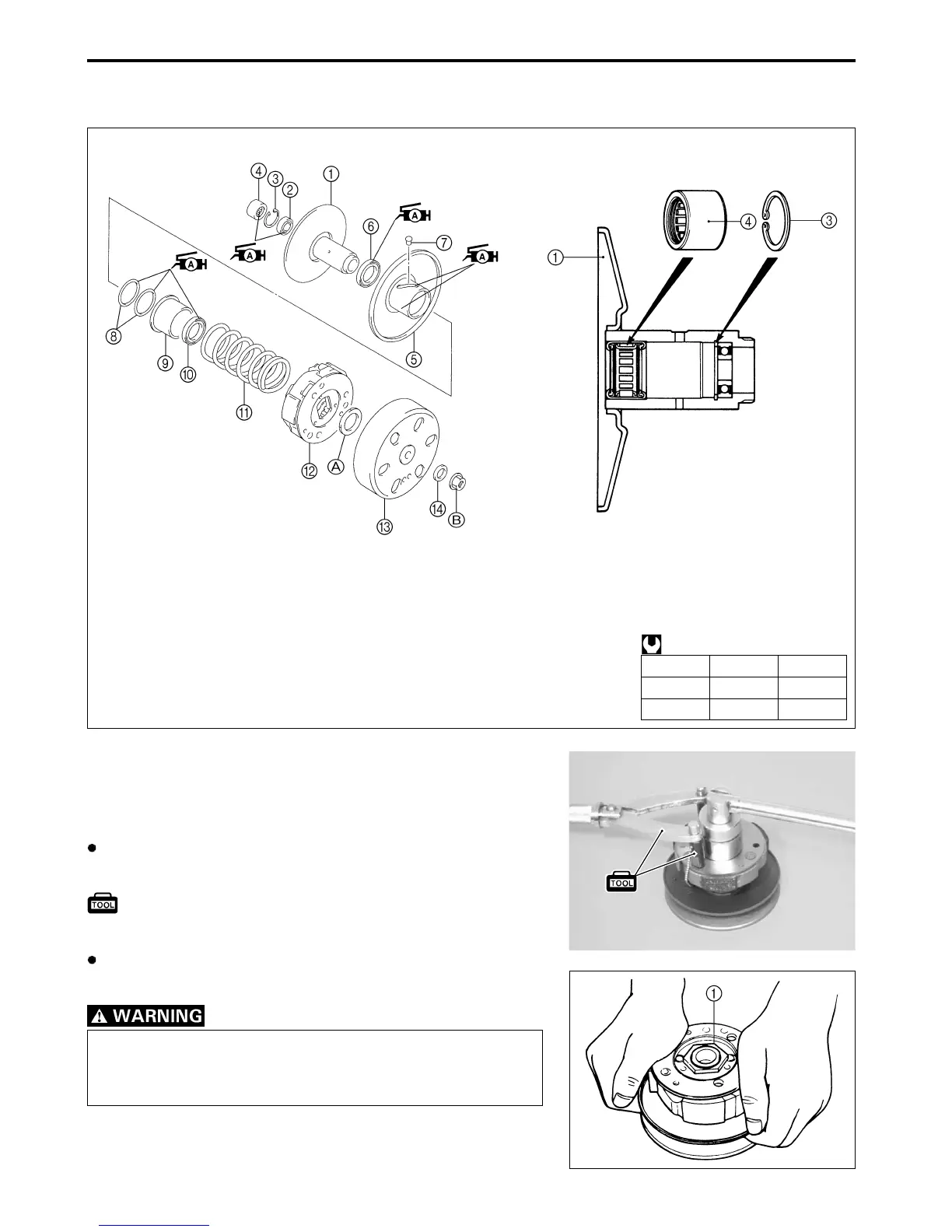

CLUTCH SHOE/MOVABLE DRIVEN FACE
1 Fixed driven face
2 Bearing
3 Circlip
4 Needle roller bearing
5 Movable driven face
6 Oil seal
7 Pin
8 O-ring
9 Movable driven face spring guide
ITEM N·m kgf-m
A 50 5.0
B 50 5.0
0 Oil seal
A Spring
B Clutch shoe assembly
C Clutch housing
D Washer
A Clutch shoe nut
B Clutch housing nut
DISASSEMBLY
If the engine speed does not coincide with the specified engine
speed range, disassemble the clutch shoe/movable driven face
as follows.
Hold the clutch shoe assembly using the special tools and
then loosen the clutch shoe nut.
09930-40113: Rotor holder
09930-40131: Rotor holder attachment
Remove the clutch shoe nut 1 while holding down the clutch
shoe assembly, as shown.
Gradually ease apart the clutch shoe assembly (to
counter the clutch spring force). Quickly releasing the
clutch shoe assembly may cause the parts to fly apart.
