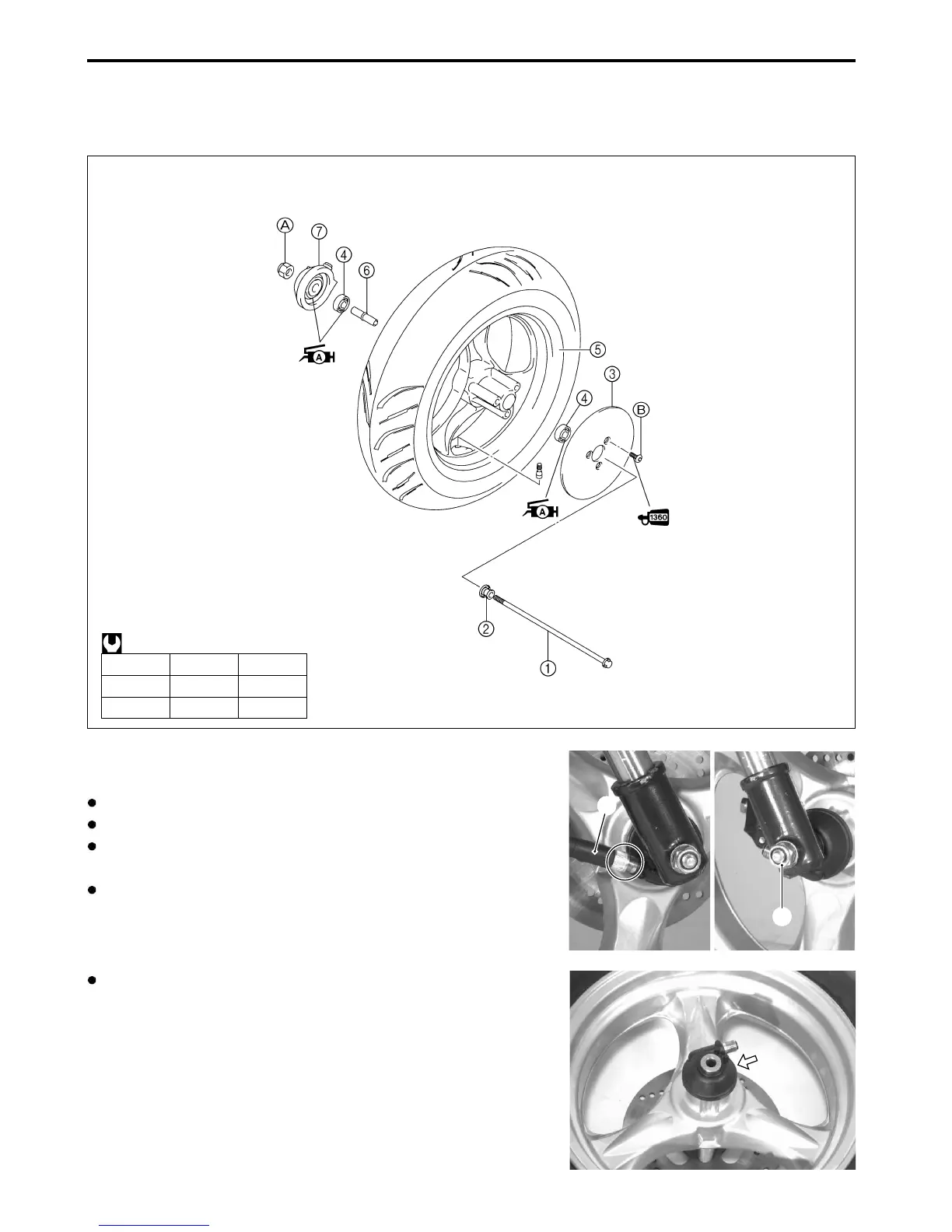

5-6 CHASSIS
FRONT WHEEL
CONSTRUCTION
1 Front axle
2 Spacer
3 Brake disc
4 Bearing
5 Front wheel
6 Spacer
7 Speedometer gearbox
A Front axle nut
B Brake disc bolt
ITEM N·m kgf-m
A 42 4.2
B 23 2.3
REMOVAL
Disconnect the speedometer cable 1.
Remove the front axle nut 2.
Raise the front wheel off the ground by raising the motorcycle
with a jack or wooden block.
Remove the front axle and then the front wheel and spacer.
Remove the speedometer gearbox.
