ELECTRICAL SYSTEM 6-3

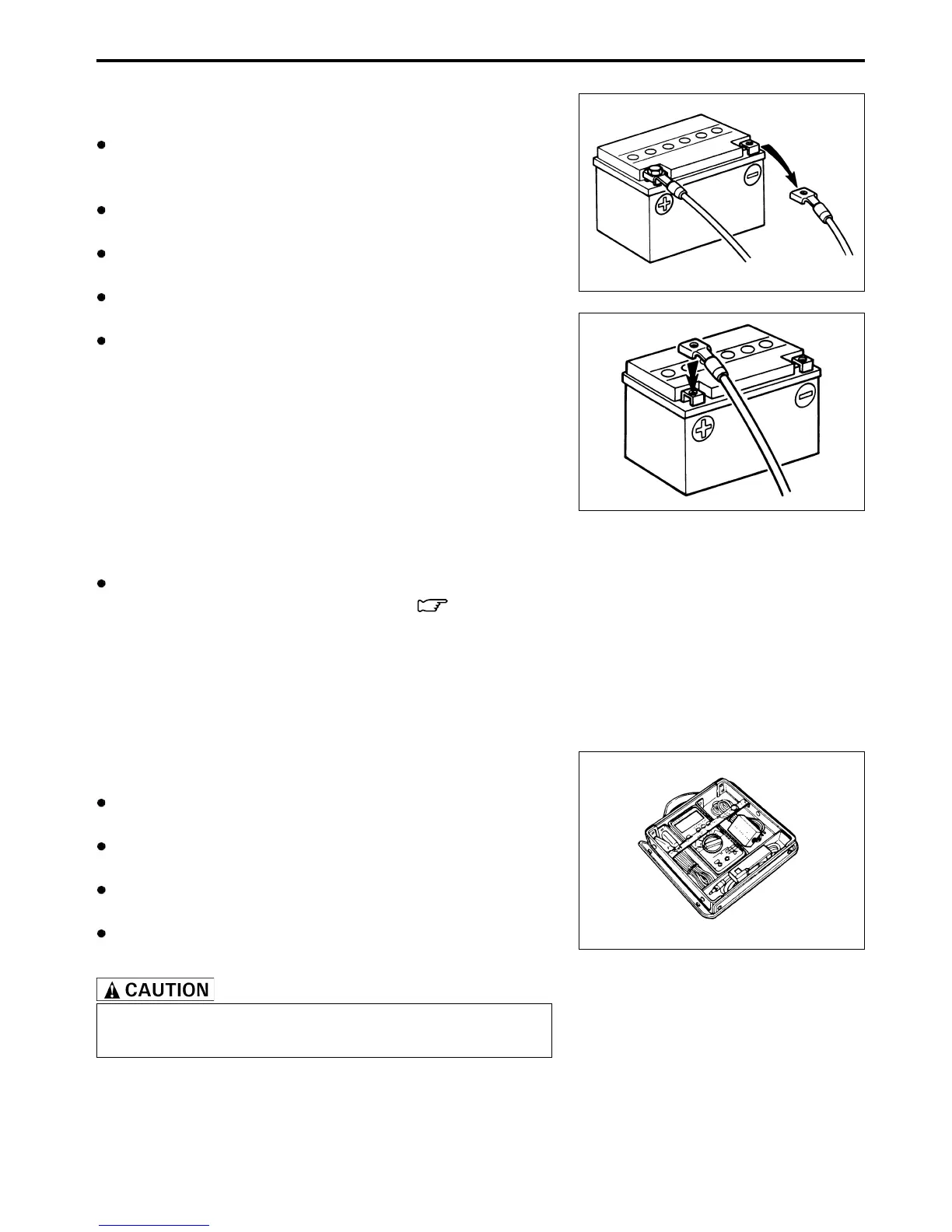

CONNECTING THE BATTERY
When disconnecting terminals from the battery for disassem-
bly or servicing, be sure to disconnect the - battery lead
wire, first.
When connecting the battery lead wires, be sure to connect
the + battery lead wire, first.
If the terminal is corroded, remove the battery, pour warm
water over it and clean it with a wire brush.
After connecting the battery, apply a light coat of grease to
the battery terminals.
Install the cover over the + battery terminal.
WIRING PROCEDURE
Properly route the wire harness according to the “WIRE HAR-
NESS, CABLE, AND HOSE ROUTING”. (
7-10 to 7-16)
USING THE MULTI CIRCUIT TESTER
Properly use the multi circuit tester + and - probes. Improper
use can cause damage to the motorcycle and tester.
If the voltage and current values are not known, begin mea-
suring in the highest range.
When measuring the resistance, make sure that no voltage is
applied. If voltage is applied, the tester will be damaged.
After using the tester, be sure to turn the switch to the OFF
position.
Before using the multi circuit tester, read its instruc-
tion manual.
