ELECTRICAL SYSTEM 6-19

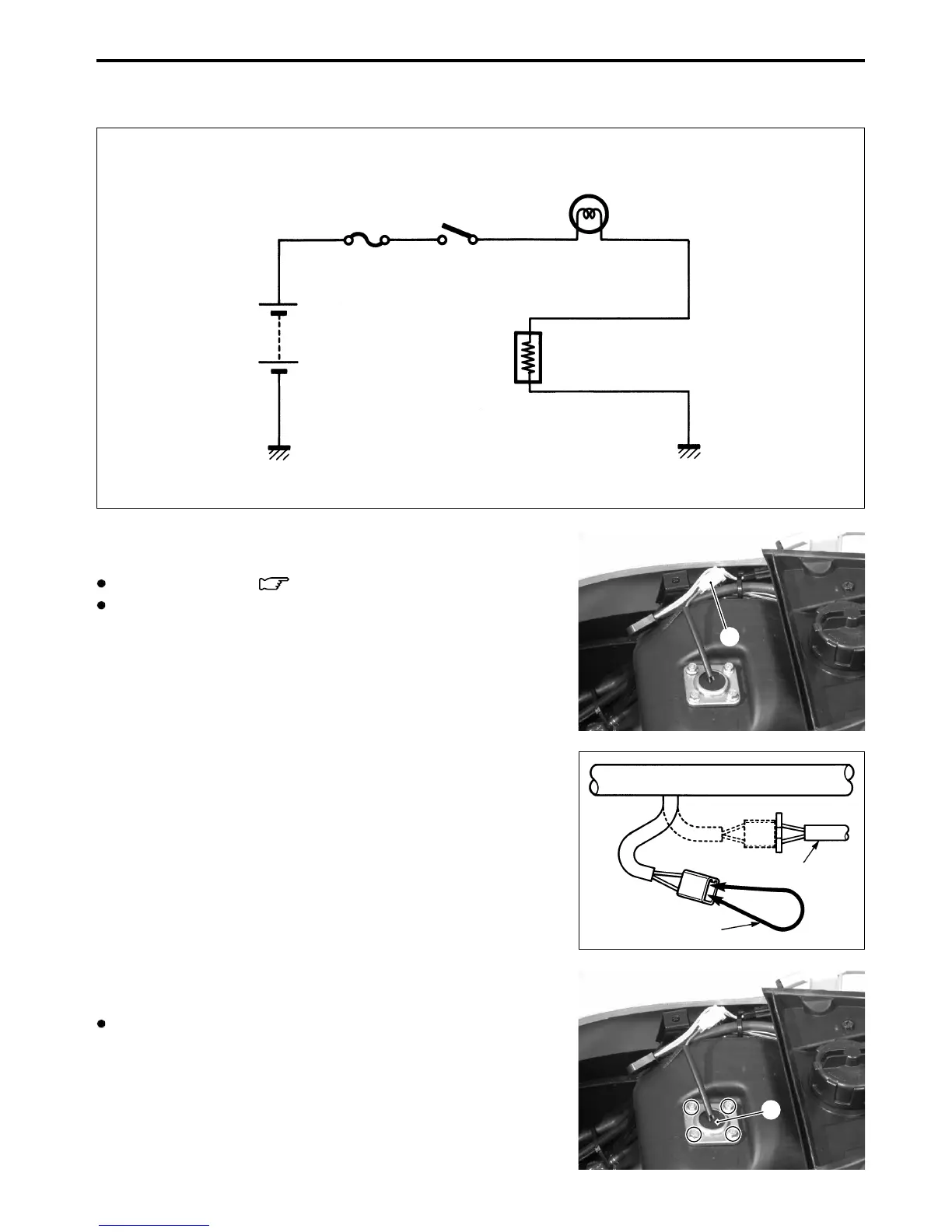

FUEL LEVEL INDICATOR SWITCH
INSPECTION
Remove the trunk. ( 5-4)
Turn the ignition switch to the “ON” position, and disconnect
the fuel level indicator coupler 1 going into the fuel level indi-
cator switch, connect the lead wires from the main wiring har-
ness with a jumper lead and check whether the fuel level indi-
cator light comes on. If the fuel level indicator light comes on,
the circuit of the fuel level indicator light is in good condition. If
the fuel level indicator light does not come on, replace the
indicator bulb or repair the circuit connection. If the bulb is in
good condition, the fuel level indicator switch may be faulty.
Inspect the fuel indicator switch for any faults. If any faults are
found, replace the fuel indicator switch with a new one.
Remove the fuel level indicator switch 2 from the fuel tank.
Fuse
Ignition switch
Battery
Fuel level
indicator light
Fuel level
indicator switch
Main wiring harness
From fuel tank
Jumper lead
To Next Page
