6-10 ELECTRICAL SYSTEM
STARTER SYSTEM
DESCRIPTION
The starter system consists of the following components: the starter motor, starter relay, starter button,
brake light switches (front and rear brakes), ignition switch, and battery. Pressing the starter button, while
squeezing the front or rear brake lever, energizes the starter relay, causing the contact points to close, thus,
completing the circuit from the starter motor to the battery.

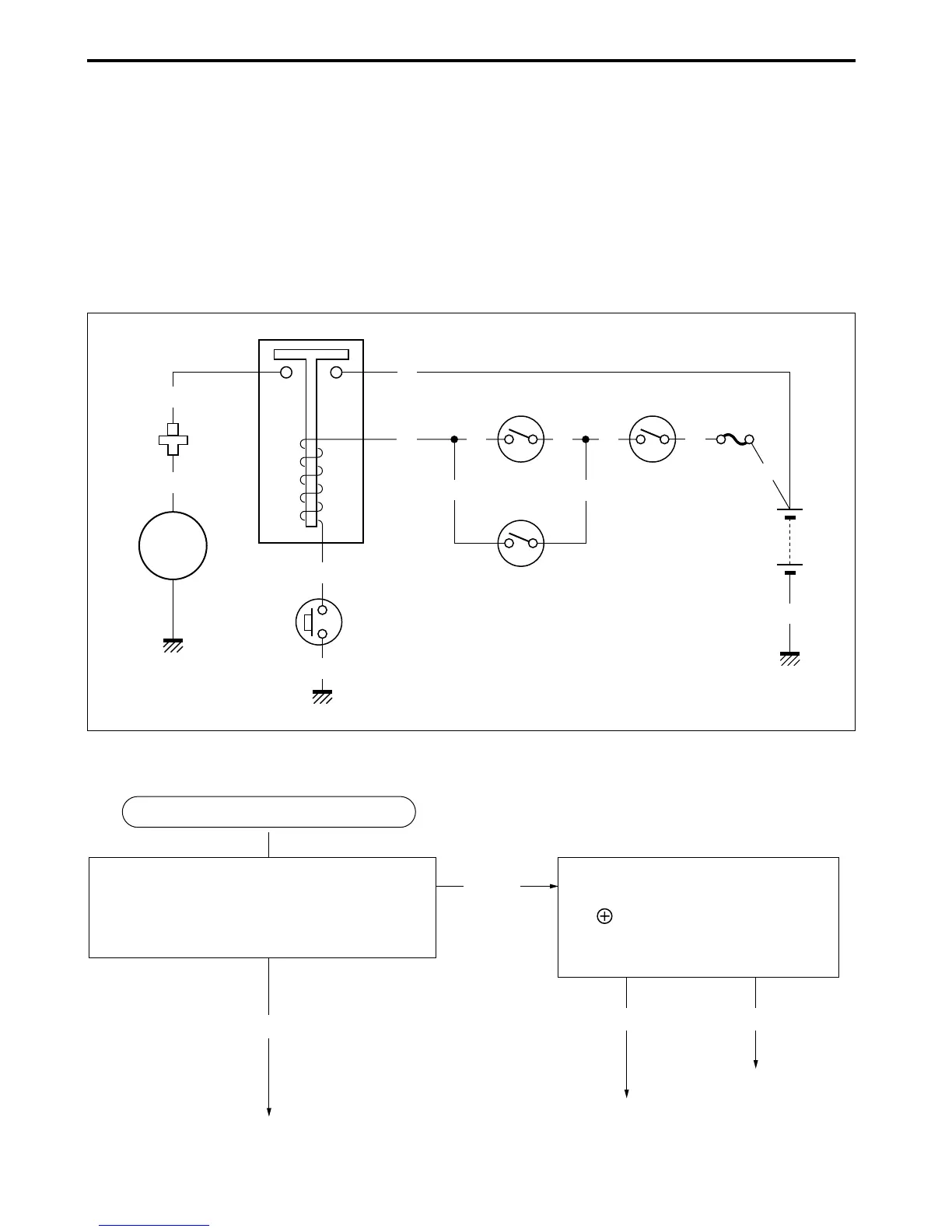

TROUBLESHOOTING
W
Y/G
B/W
R/W
R
W
R/W
O
W
O O
R
R
B/W
Turn the ignition switch to the “ON” position.
Grasp the front or rear brake lever. Listen for
a click from the starter relay when the starter
button is pushed.
Check if the starter motor runs
when its terminal is connected to
the battery terminal (Do not use
a thin wire because a large amount
of current flows.)
Starter motor will not run.
No click
Clicks
• Faulty starter motor
Continued on next page
Does not run
• Faulty starter relay
• Loose or disconnected starter
motor lead wire
Runs
Starter button
Front brake light switch Ignition switch
Rear brake light switch
Starter motor
Starter relay
Fuse
Battery
To Next Page
