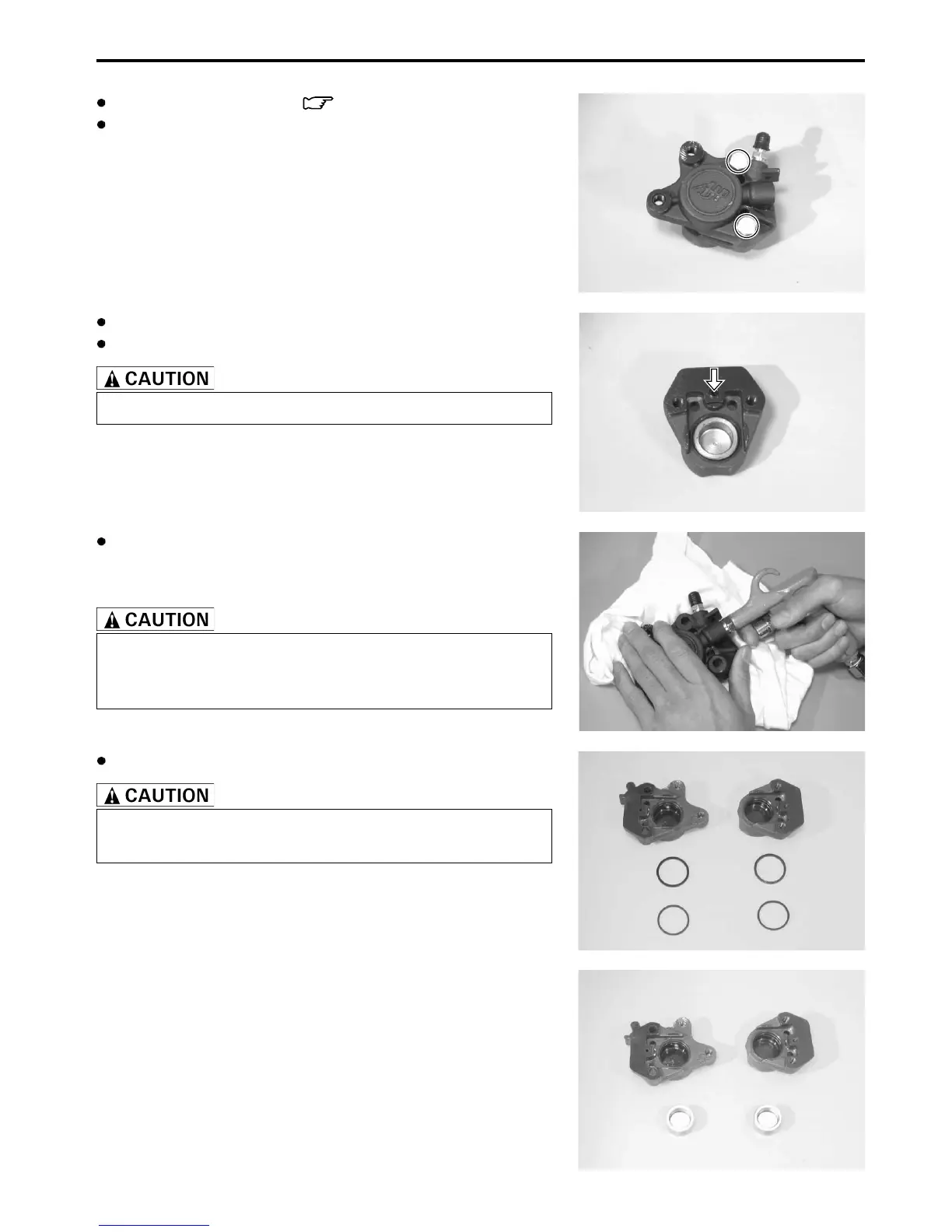

CHASSIS 5-13
Remove the brake pads. ( 5-11)
Remove the brake caliper housing bolts.
Separate the brake caliper.
Remove the O-ring.
Do not reuse the O-ring to prevent fluid leakage.
Place a rag over the brake caliper pistons to prevent them
from popping out, and then force out the piston using com-
pressed air.
Do not use extremely high pressure air to remove the
brake caliper pistons, otherwise damage to the pistons
will result.
Remove the dust seals and piston seals.
Do not reuse the dust seals and piston seals to pre-
vent fluid leakage.
BRAKE CALIPER INSPECTION
BRAKE CALIPER
Inspect the brake caliper cylinder wall for nicks, scratches, or
other damage. If any damages are found, replace the brake cali-
per with a new one.
BRAKE CALIPER PISTON
Inspect the brake caliper pistons for any scratches or other dam-
age. If any damages are found, replace the piston with a new
one.
