ENGINE 3-23

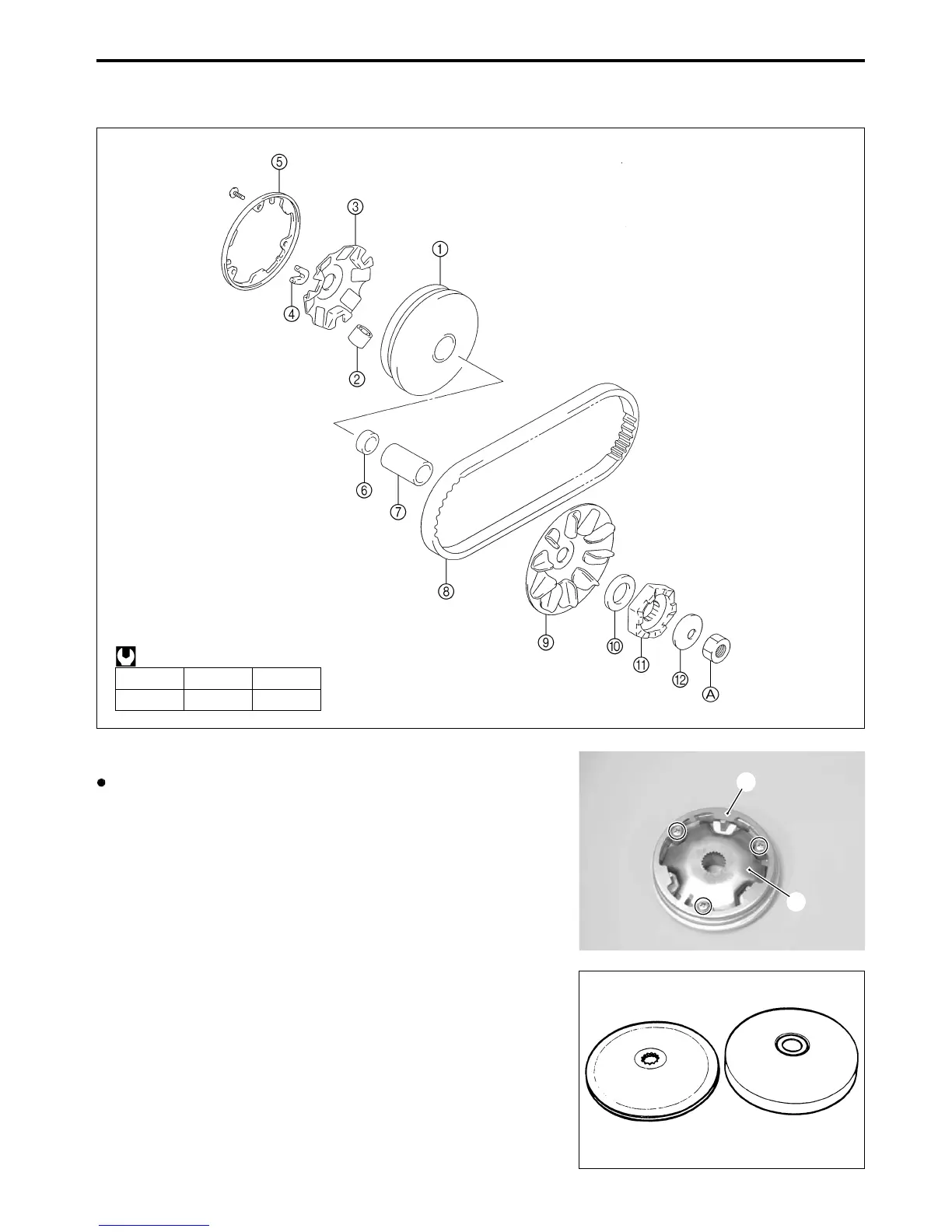

MOVABLE DRIVE FACE
1 Movable drive face
2 Roller
3 Movable drive plate
4 Damper
5 Movable drive face cover
6 Spacer
7 Spacer
8 Drive belt
9 Fixed drive face
0 Washer
A Kick starter
B Concave washer
A Kick starter nut
DISASSEMBLY
Remove the movable drive face cover 1 and movable drive
plate 2.
DRIVE FACE
Inspect the belt contact surface of the drive faces for wear,
scratches or any abnormalities. If any damages are found, re-
place the drive face with a new one.
ITEM N·m kgf-m
A 50 5.0
To Next Page
