CHASSIS 5-31

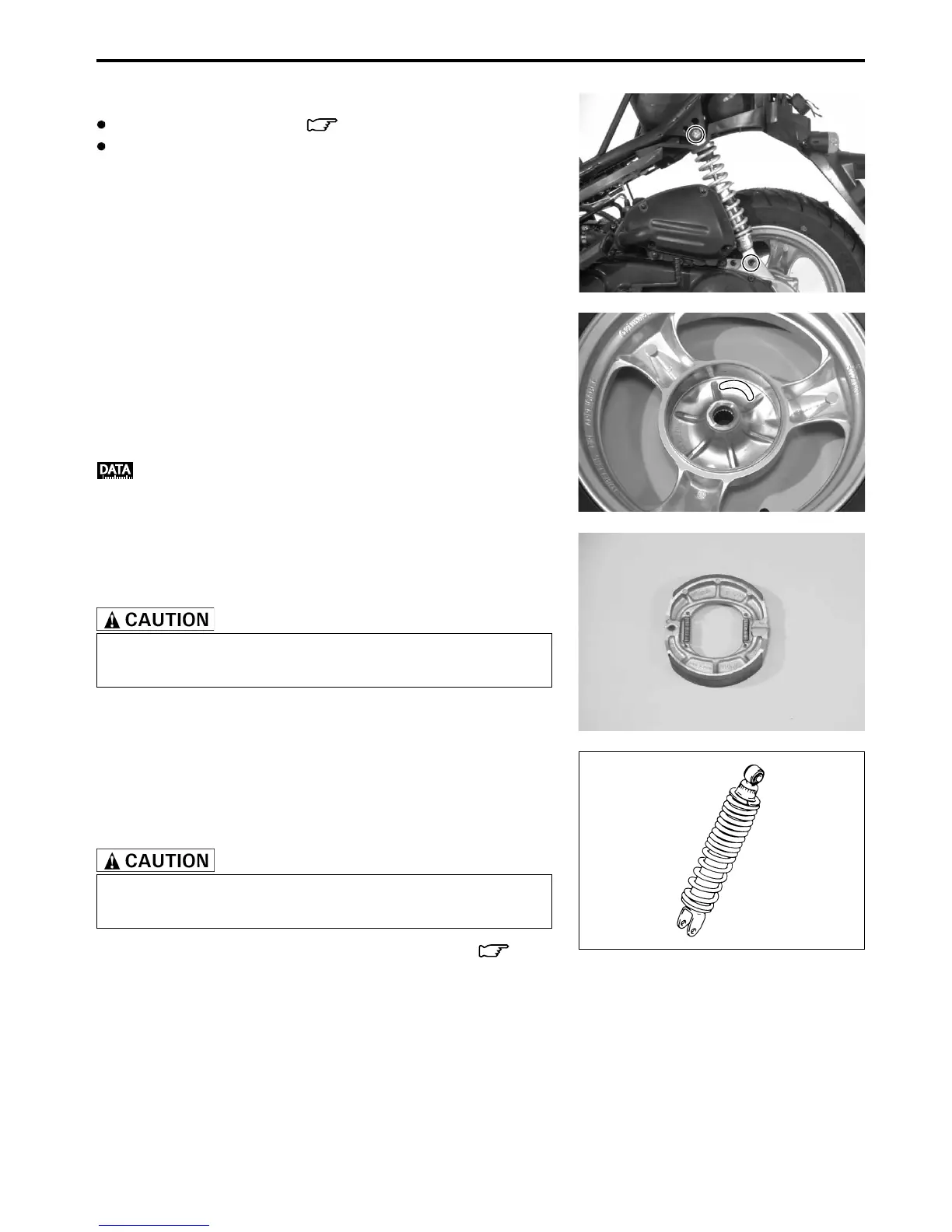

REAR SHOCK ABSORBER
Remove the frame cover. ( 5-4 and 5-5)
Remove the rear shock absorber.
INSPECTION
BRAKE DRUM
Inspect the brake drum and measure the brake drum I.D. to de-
termine the extent of wear. If the measurement exceeds the ser-
vice limit, replace the brake drum with a new one. The value of
this limit is indicated inside the drum.
Brake drum I.D.
Service Limit: 120.7 mm
BRAKE SHOE
Inspect the brake shoes for wear or damage. If any wear or dam-
ages are found, replace the brake shoes as a set.
Replace the brake shoes as a set, otherwise braking
performance will be adversely affected.
REAR SHOCK ABSORBER
Inspect the rear shock absorber for oil leakage or other damage.
If any oil leakages or damages are found, replace the rear shock
absorber with a new one.
Do not attempt to disassemble the shock absorber. It
is not serviceable.
TIRE ...........................................................................
2-12
