THERMOELEMENT, CARBURETOR HEATER, AND THERMOSWITCH
INSPECTION
THERMOELEMENT
Remove the trunk. ( 5-4)
Disconnect the thermoelement coupler 1 and remove the
thermoelement 2.
Connect the thermoelement lead wires to a 12 V battery.
Wait five minutes and feel the thermoelement to see if it has
reached approximately 36°C. If the appropriate temperature is
not reached, replace the thermoelement with a new one.
NOTE:
This check should be carried out when the engine is cold.

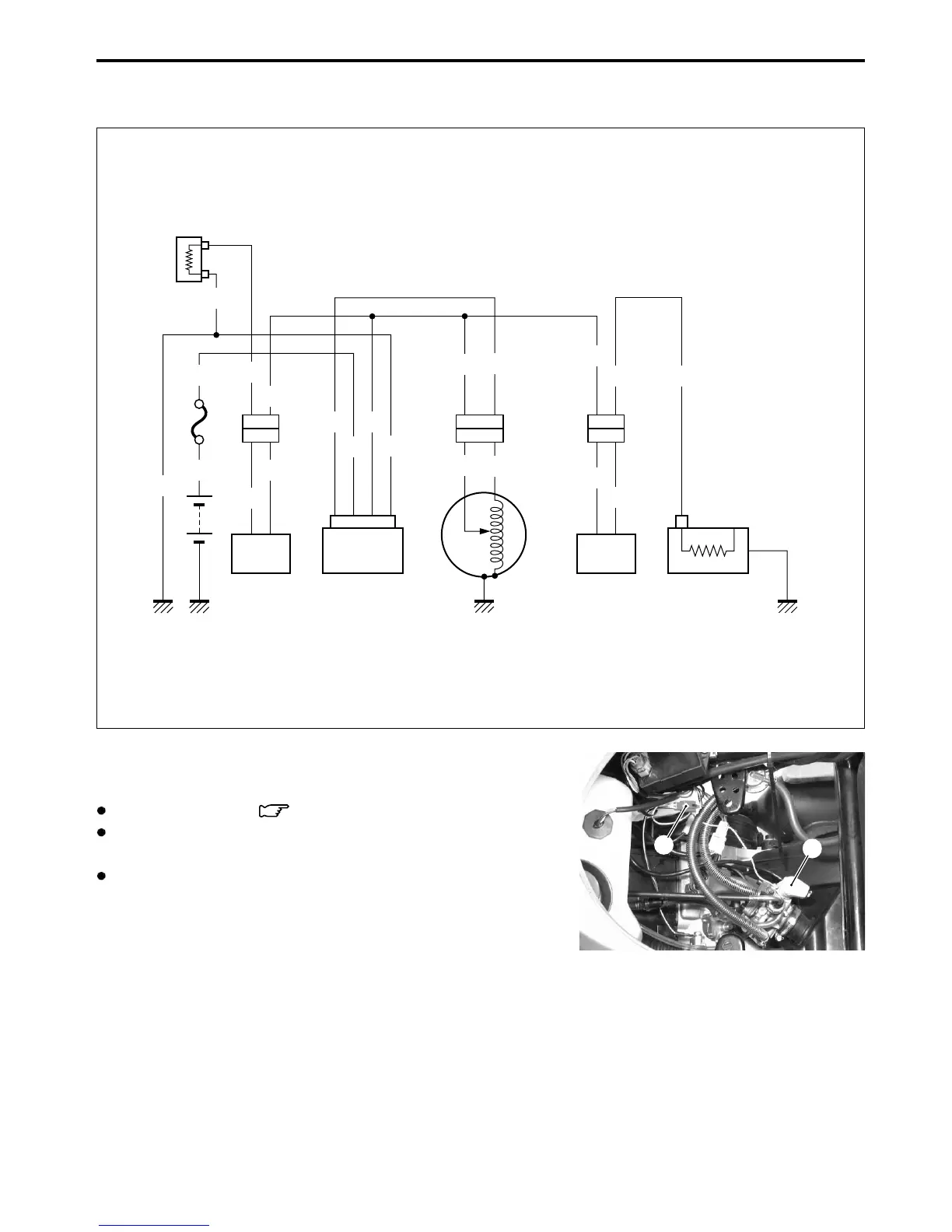

B/Y
