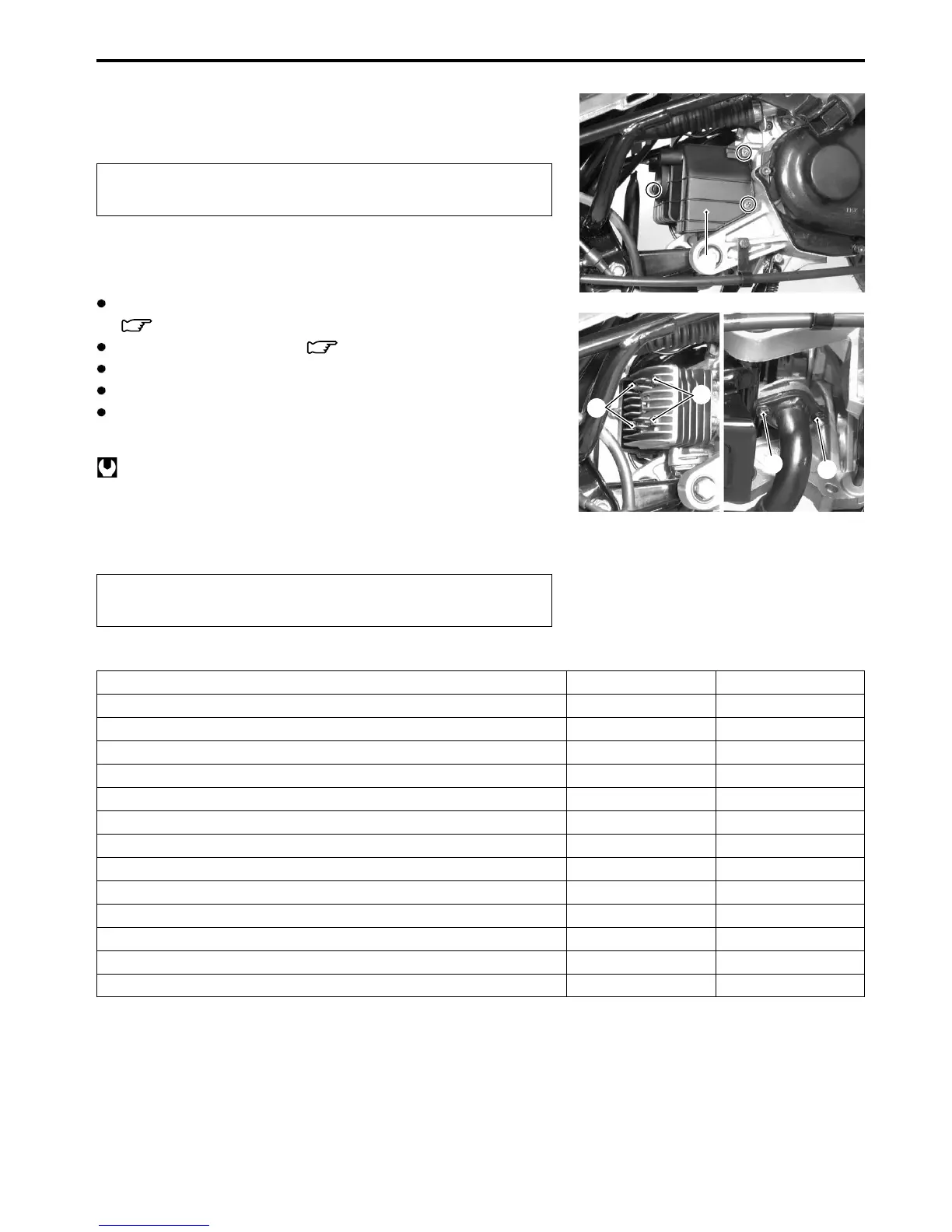

PERIODIC MAINTENANCE 2-13
CYLINDER HEAD NUTS AND EXHAUST
PIPE NUT AND BOLT
Tighten initially at 1 000 km (2 months) and every
3 000 km (6 months) thereafter.
Cylinder head nuts, when they are not tightened to the specified
torque, may result in leakage of the compressed mixture and
reduce output. Tighten the cylinder head nuts as follows.
Disconnect the spark plug cap and remove the spark plug.
(
2-5)
Remove the frame cover. ( 5-4 and 5-5)
Remove the cylinder/cylinder head cover 1.
Disconnect the spark plug cap.
Tighten the cylinder head nuts 2 and exhaust pipe nut 3
and bolt 4 to the specified torque.
Cylinder head nut: 10 N·m (1.0 kgf-m)
Exhaust pipe nut and bolt: 10 N·m (1.0 kgf-m)
CHASSIS NUTS AND BOLTS
Tighten initially 1 000 km (2 months) and every
3 000 km (6 months) thereafter.
Check that all chassis nuts and bolts are tightened to their specified torque.
Item N·m kgf-m
1 Front axle nut 42 4.2
2 Steering stem locknut 30 3.0
3 Handlebar set bolt 25 2.5
4 Handlebar clamp nut 50 5.0
5 Front brake caliper mounting bolt 26 2.6
6 Front brake hose union bolt 23 2.3
7 Front brake caliper air bleeder valve 7.5 0.75
8 Front brake disc mounting bolt 23 2.3
9 Front brake master cylinder clamp bolt 10 1.0
0 Rear axle nut 120 12.0
A Rear shock absorber upper mounting bolt 29 2.9
B Rear shock absorber lower mounting nut 35 3.5
C Rear brake cam lever nut 10 1.0
