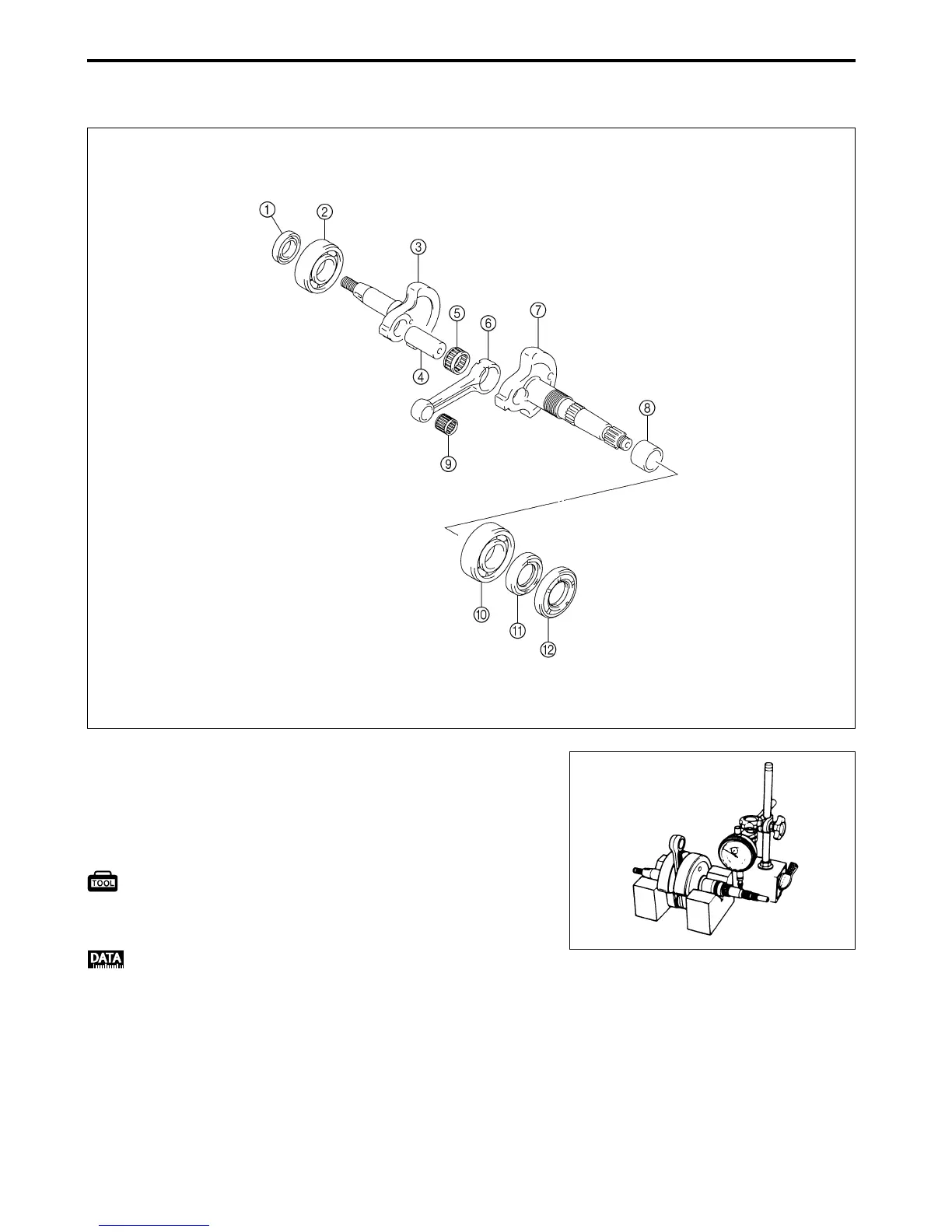

3-16 ENGINE
CRANKSHAFT AND CONROD
1 Oil seal (R)
2 Bearing (R)
3 Crankshaft (R)
4 Crank pin
5 Crank pin bearing
6 Conrod
7 Crankshaft (L)
8 Spacer
9 Piston pin bearing
0 Bearing (L)
A Oil seal (L)
B Oil seal
CRANKSHAFT RUNOUT
Support the crankshaft using V-blocks as shown. Position the
dial gauge, as shown, and rotate the crankshaft slowly to read
the runout. If the runout exceeds the service limit, correct the
runout or replace the crankshaft assembly with a new one.
09900-20701: Magnetic stand
09900-20606: Dial gauge (1/100 mm)
09900-21304: V-block set (100 mm)
Crankshaft runout
Service Limit: 0.05 mm
