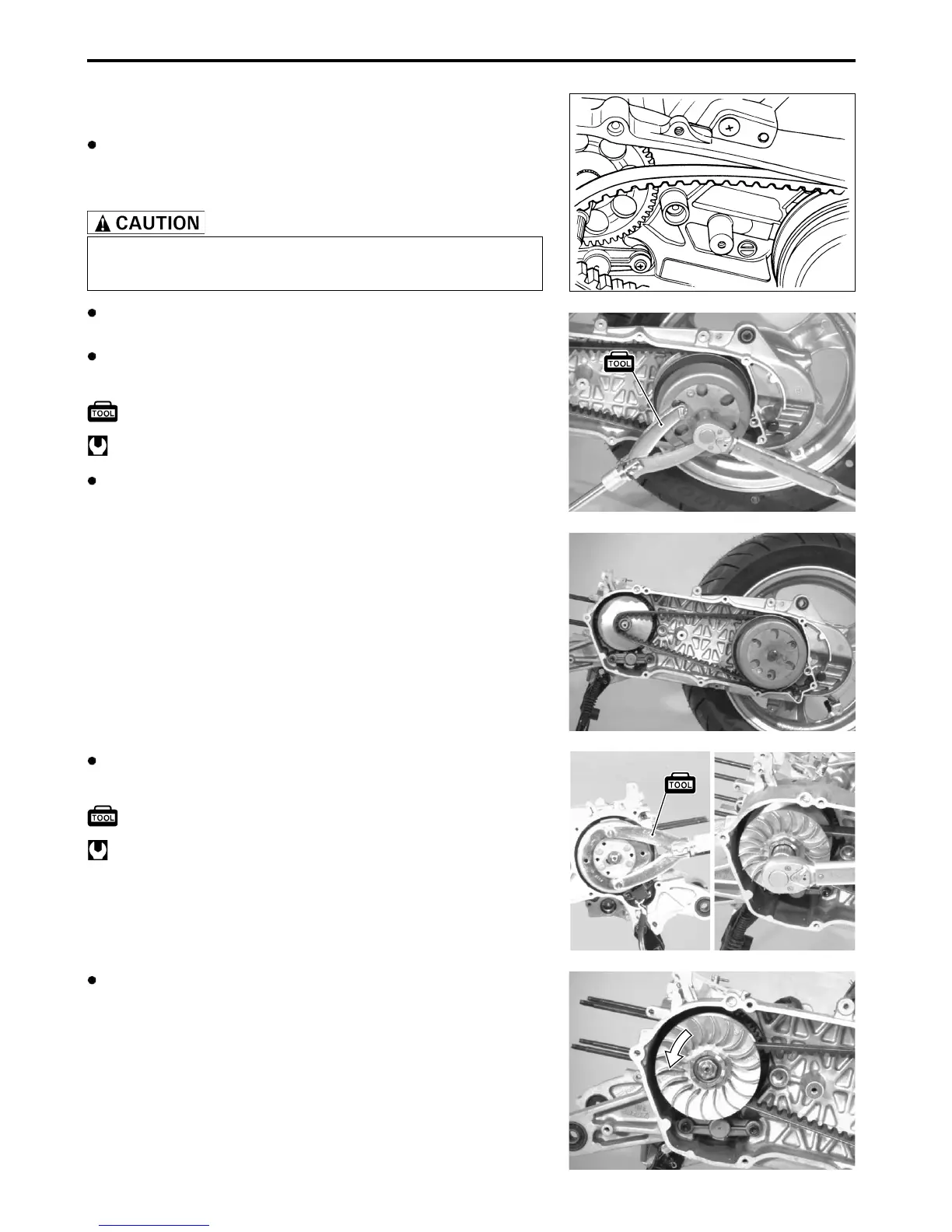

3-38 ENGINE
DRIVE BELT
Insert the drive belt, as low as possible, between the clutch
shoe/movable driven face while pulling out the driven face to
provide the maximum drive belt clearance.
The drive belt contact surface of the driven face should
be thoroughly cleaned.
Thoroughly clean the clutch housing and position it over the
clutch shoe assembly.
Hold the clutch housing using the special tool, and tighten the
clutch housing nut to the specified torque.
09930-40113: Rotor holder
Clutch housing nut: 50 N·m (5,0 kgf-m)
Install the movable drive face onto the crankshaft, as shown.
NOTE:
Thoroughly clean the drive belt contact surface.
Hold the generator rotor using the special tool, and tighten
the kick starter nut to the specified torque.
09913-40113: Rotor holder
Kick starter nut: 50 N·m (5.0 kgf-m)
Turn the fixed drive face by hand, until the drive belt is prop-
erly seated and both the drive and driven faces rotate together
smoothly and without slipping.
