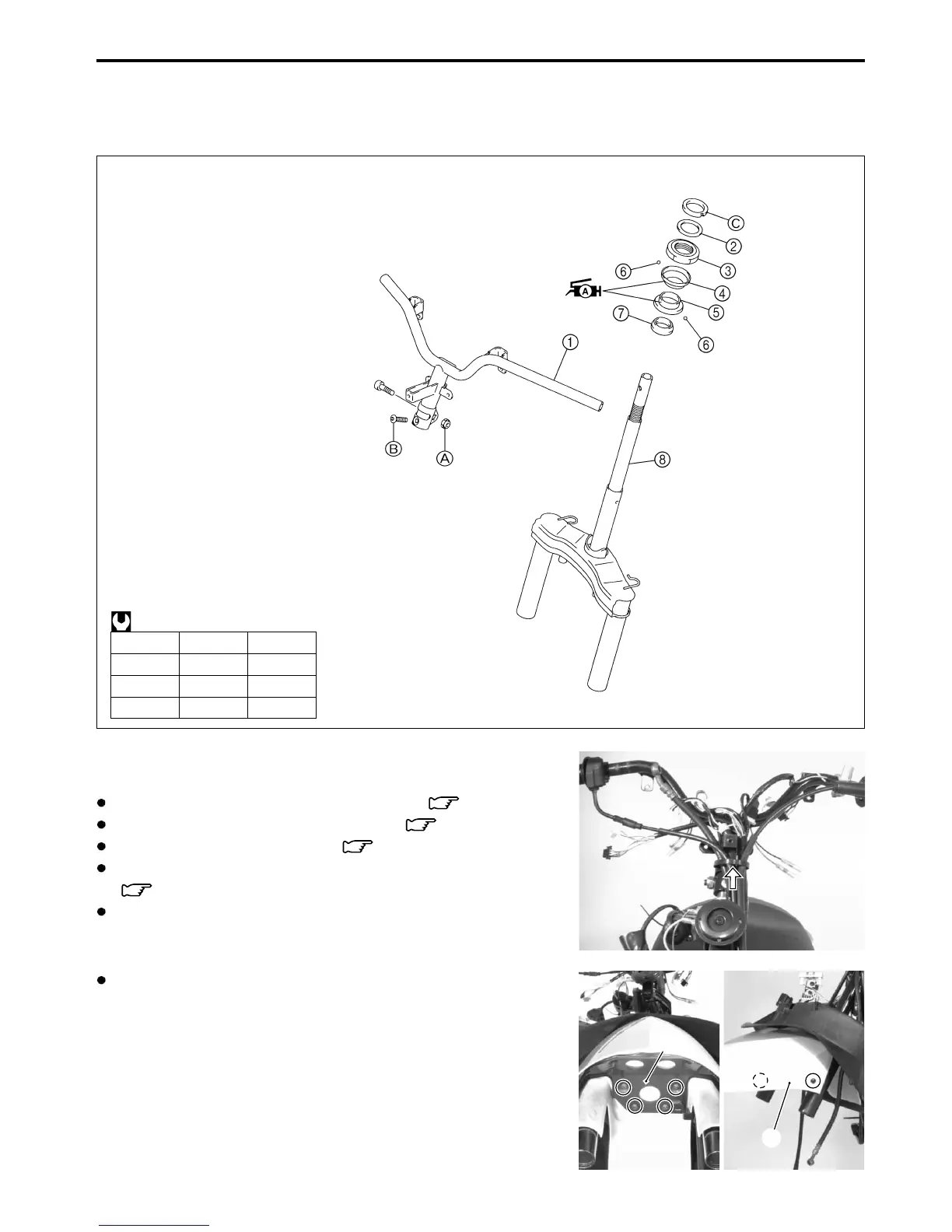

CHASSIS 5-25
STEERING STEM
CONSTRUCTION
1 Handlebar
2 Washer
3 Steering stem nut
4 Inner upper race
5 Inner lower race
6 Steel ball
7 Outer lower race
8 Steering stem
A Handlebar clamp nut
B Handlebar set bolt
C Steering stem locknut
ITEM N·m kgf-m
A 50 5.0
B 25 2.5
C 30 3.0
REMOVAL AND DISASSEMBLY
Remove the front leg shield and leg shield. ( 5-3 and 5-4)
Remove the master cylinder assembly. ( 5-15)
Remove the front suspension. ( 5-18 and 5-19)
Remove the handlebar cover and speedometer assembly.
(
5-23 and 5-24)
Remove the cable clamp.
Remove the front fender brace 1 and front fender 2.
1
2
